TAGRA
Reference M2712 | TAGRA

Tagra M27-12 CB fiber base antenna 27 Mhz, 1/2 wave. Length 5.3m

Tagra M27-12 CB fiber base antenna 27 Mhz, 1/2 wave. Length 5.3 m, it is an excellent option for those looking for a high quality antenna for their radio amateur station and easy installation.

Make the first review

156,01 VAT included 128,93€ excl. VAT

available. Envio a partir de 2 días. Delivery price from 30,25€
This item has an additional delivery cost because the size/weight is exceeded the limits of carrier.

Description TAGRA M2712

Tagra M27-12 CB fiber base antenna 27 Mhz, 1/2 wave. Length 5.3 m, it is an excellent option for those looking for a high quality antenna for their radio amateur station and easy installation.
Ideal antenna to install on zoteas, roofs. Widely used to make contacts long distance (DX). Frequency 27Mhz, Power 500W, Gain 2.15dBi, Connection type PL female

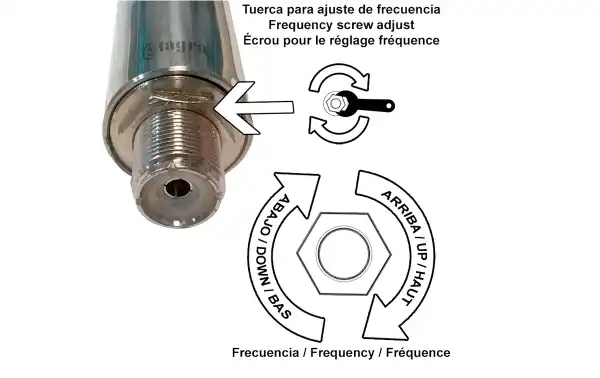

With 26-28 MHz frequency regulation with peat at the bottom of the antenna.

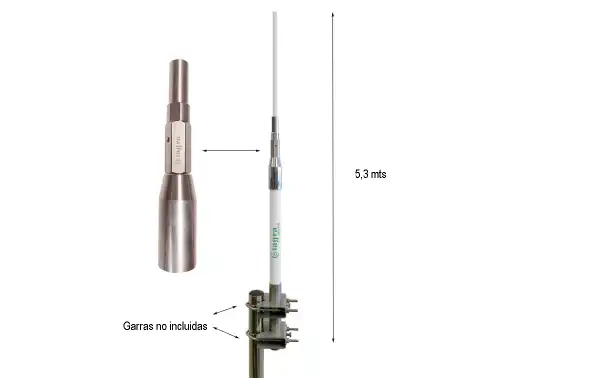

Made with fiber tube, it has two sections of 2.5 meters each.
You may be interested in cable to connect the antenna and the station example: Cable sold by the meter RG-58 see
You may be interested in connectors for the antenna or the station example: Connector required for the PL male antenna ref.PL259 this connector is also usually carried by the station see

Does not include supports.
Support not included compatible: SN-282 , SIX-282 , KN-2843

tagra m27-12 antena base de fibra cb 27 mhz, 1/2 onda. longitud 5,3 m

kit content
  • 1 M27-12 Antenna

tagra m27-12 antena base de fibra cb 27 mhz, 1/2 onda. longitud 5,3 m

tagra m27-12 antena base de fibra cb 27 mhz, 1/2 onda. longitud 5,3 m

Characteristics

  • GPV 27 1/2
  • Frequency: 26-28MHz
  • Impedance: 50 ohms
  • Radiation: (H-plane): 360° omnidirectional
  • polarization: vertical
  • Gain: 5.15dbi
  • Bandwidth: 2:1 VSWR: 1400KHz
  • Stationary: SWR at res. freq.: = 1.2:1
  • Maximum power: 300 Watts
  • Bottom Nut Stationary Adjustment
  • Connector: PL Female
  • Materials: Fiber, Stainless Steel
  • Wind resistance: 156 N at 150 km/h
  • Antenna length: 5300 mm
  • Antenna in two sections
  • Weight (approx.): 1900 gr
  • Mast assembly: Ø 35-45
