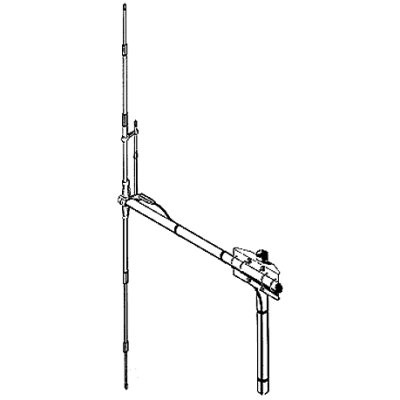

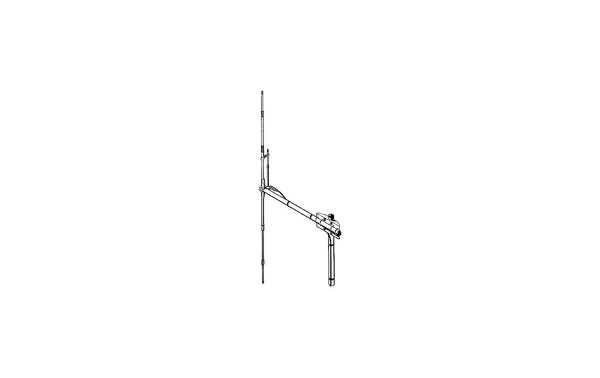

SD-27 SIRIO DIPOLE ANTENA DIRECTIVA RIGIDA

SIRIO SD-27 RIGID DIPOLE ANTENNA 27 MHZ DIRECTIVE

SIRIO SD-27 RIGID DIPOLE ANTENNA 27 MHZ DIRECTIVE Type: 1 / 2 wave Dipole Frequency range: 26-29 MHz Impedance: 50 Ohms unbalanced Radiation (H-plane): Horizontal Mounting: Directional Vertical Mounting: Omnidirectional

5,0

94,36€ VAT included 77,98€ excl. VAT

You've seen it cheaper Request a quote

available. Estimated delivery 2-5 days. available in shop Delivery price from 30,25€

Description SIRIO SD27DIPOLE

SIRIO SD-27 RIGID DIPOLE ANTENNA 27 MHZ DIRECTIVE

Type: 1 / 2 wave Dipole
Frequency range: 26-29 MHz
Impedance: 50 Ohms unbalanced
Radiation (H-plane):
Horizontal Mounting: Directional
Vertical Mounting: Omnidirectional
Polarization: horizontal


	FEATURES

Gain: 0 dBd, 2.15 dBi

Bandwidth at SWR 2:1: 3750 KHz

SWR at res. freq.: = 1.1:1

Max. power: 1000 Watts (CW) Continuous, 3000 Watts (CW) short time

Feed system / position: Gamma match / center

Connector: UHF-female

Boom Length: 1400mm

Boom Diameter: 33mm

Radiator Length (Vertical elements): 5420mm

Radiator Diameters: 8-12-16mm

Weight (approx): 2.5kg

Mounting Mast Diameters: 35/50mm
