SIRIO TWIN LOG 3
SIRIO TWIN LOG 3
SIRIO TWIN LOG 3 Antenna of fiber CB connector 3/8 power 300 W DESIGN format USA
SIRIO TWIN LOG 3 Antena de fibra CB conector 3/8 potencia 300 W DISEÑO formato USA
Length 95 cm
Longitud 95 cm.
Kit Contents
Contenido del kit
1 TWIN Log Antenna - 1 Antena TWIN Log
Features
Características
Mobile antenna CB 27 - Antena móvile CB 27
Total height: 3 '/ 95cm - Altura total: 3 ' / 95cm

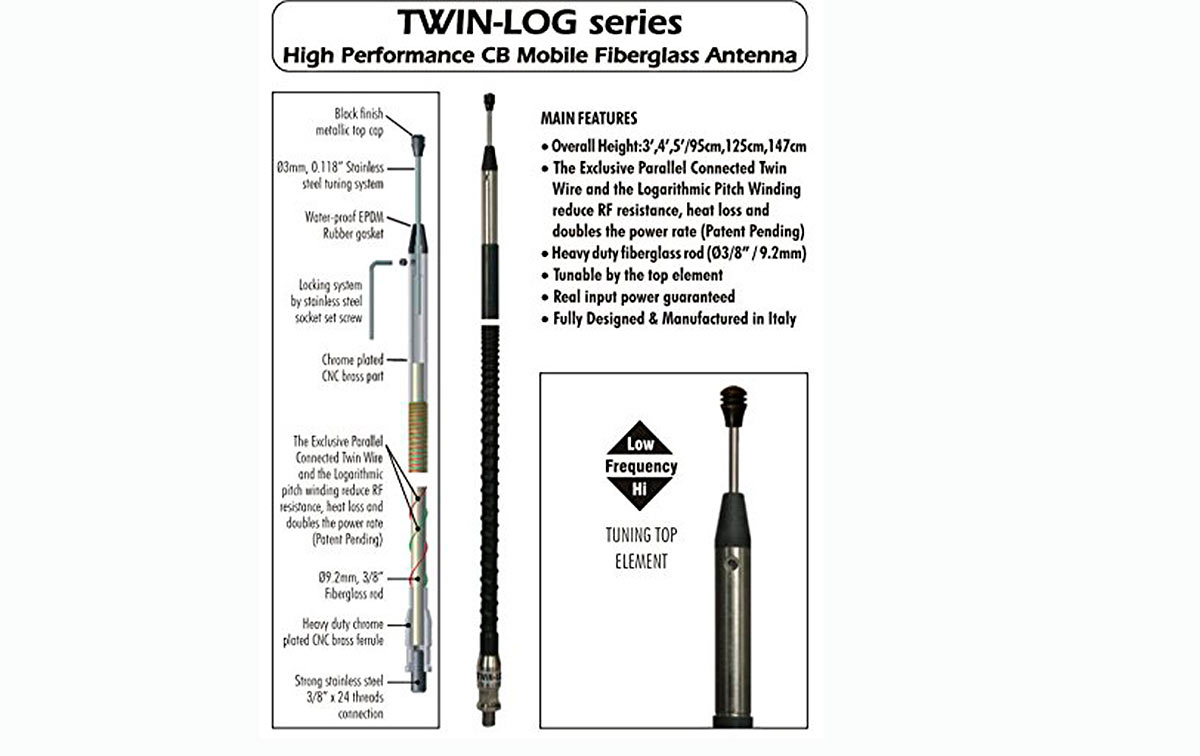

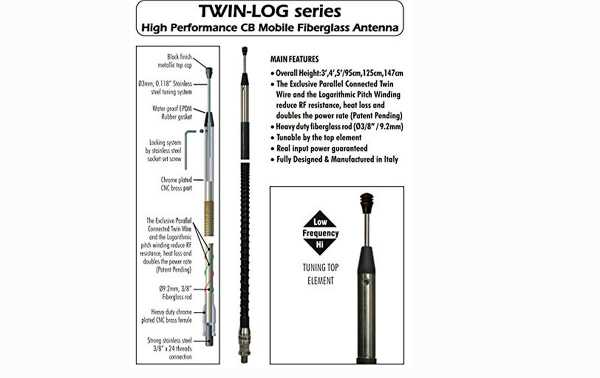

Exclusive logarithmic step winding to reduce heat and hot spot loss (patent pending) - Exclusivo devanado de paso logarítmico para reducir el calor y la pérdida de punto caliente (pendiente de patente)
Flexible fiberglass rod (Ø3 / 8 "/ 9.2 mm) - Adjustable by the upper element
- Guaranteed real input power
- Fully designed and manufactured in Italy
- Frequency range: 26.9 ... 27.5 MHz
- Impedance: 50 O
- Polarization: vertical line
- Bandwidth SWR = 2:
- TWIN LOG 3: = 600 KHz (55 channels)
- SWR res. Frequency: TWIN LOG 3: = 1, 4
- Max power: TWIN LOG 3: 300 watts (CW) short time

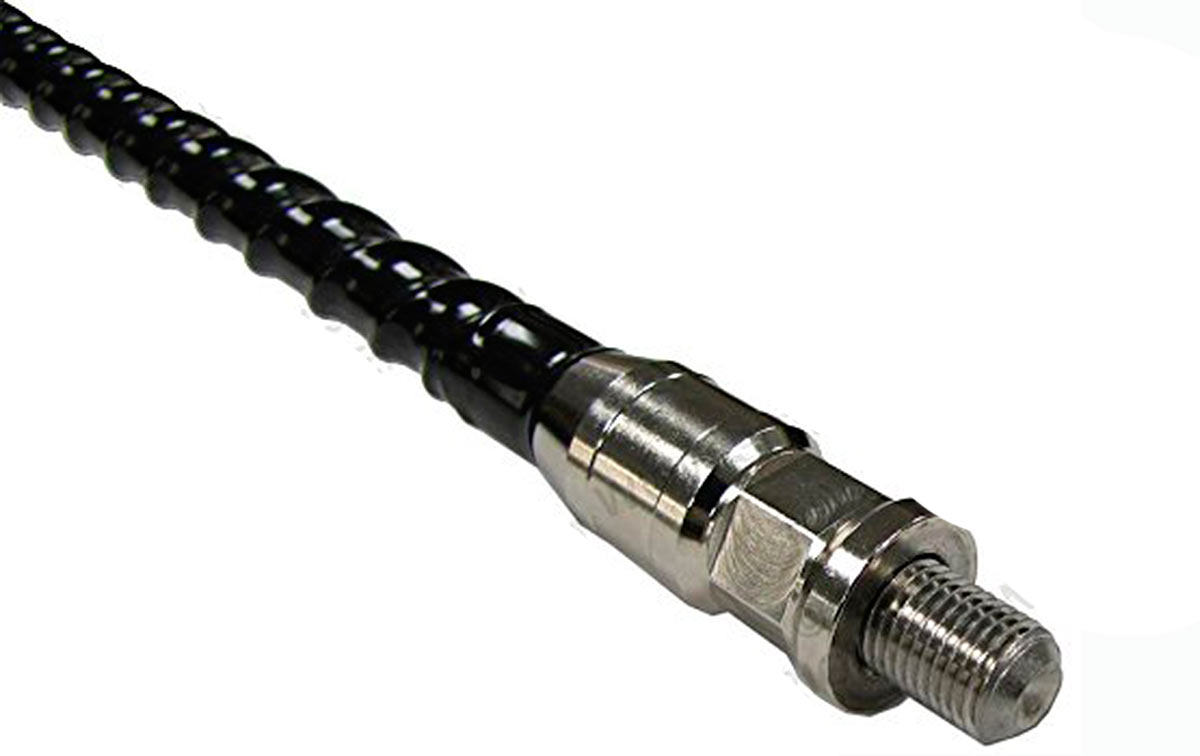

- Connection: 3/8 "x24 threads
- Materials: fiberglass, copper, nylon, stainless steel
- Height (approx.): TWIN LOG 3: 950 mm /
- Weight (approx.): TWIN LOG 3: 0.300 Kg
- Peso (aprox.): TWIN LOG 3: 0,300 Kg
