Referencia SIRIOFMDIPOLE87 | SIRIO

SIRIO DP100 Antena FM DIPOLO 87-194 Mhz AVIACION

Antena SIRIO DP100 FM DIPOLO 87-194 MHZ AVIACION BOOM LARGO Type: 1/2¦Ë dipole Frequency range: 87...194 MHz tunable by cutting Impedance: 50¦¸ unbalanced Radiation (H-plane): directional (if Horizontal) or omnidirectional (if vertical)

5,0

68,33€ IVA incluido 56,47€ s/IVA

Lo he visto mas barato Pedir presupuesto

Disponible. Envio a partir de 2 días. Envio desde 30,25€

Descripción SIRIO SIRIOFMDIPOLE87

DESCRIPCIÓN DEL PRODUCTO

!! ANTENA DIPOLO PARA RADIO COMERCIAL Y AVIACION !!

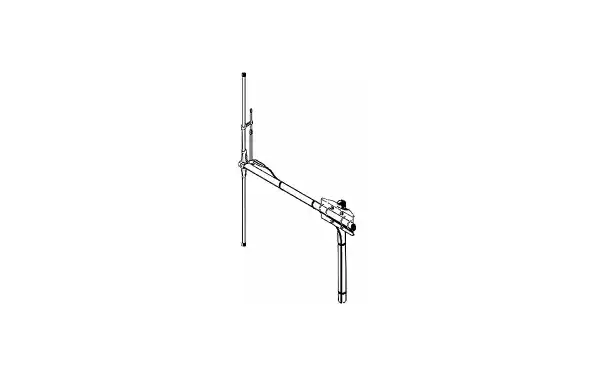

DP100 FM DIPOLO 87 ANTENA SIRIO PARA RADIO COMERCIAL Y AVIACION 87- 194 MHZ
Base station antenna, Mono-band

Unity-gain, Horizontal or Vertical polarization
Directional (if Horizontal) or Omnidirectional (if Vertical)
High power handling capability
Made of aluminium alloy 6063 T-832

Type: 1/2? dipole
Frequency range: 87...194 MHz tunable by cutting
Impedance: 50 unbalanced
Radiation (H-plane): directional (if Horizontal) or omnidirectional (if vertical)
Radiation angle: 0°
Polarization: horizontal or vertical
Bandwidth @ SWR 1.5: = 14.9 MHz @ 87 MHz
SWR @ res. freq.: = 1.2
Max. power: 300 Watts
Feed system / position: Gamma match / Center
Connection: UHF-female

CARACTERÍSTICAS

	Materials: Aluminium, EPDM rubber, zamak, zinc plated steel, chromed brass
	Wind load / resistance: 99 N at 150 Km/h / 160 Km/h
	Wind surface: 0.08 m²
	Height (approx.): 1600 mm
	Weight (approx.): 1850 gr
	Turning radius: 900mm
	Operating temperature: -40°C to 80°C
	Mounting mast: Ø 35-50 mm
