MA-6V ANTENA CUSHCRAFT

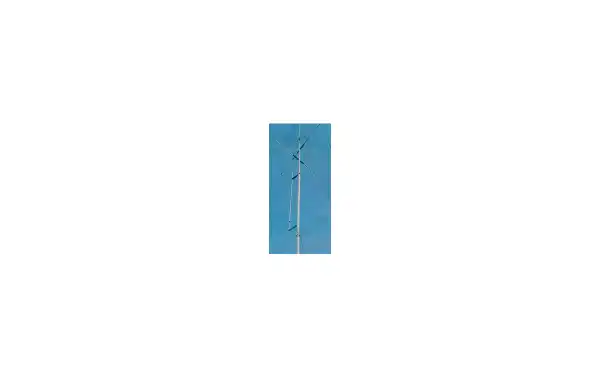

MA-6V CUSHCRAFT ANTENA DE HF VERTICAL
Frequency, meters 20,17,15,12,10,6
Gain, dBi 1-2
Height, ft(m) 14.7(4.48)
Mast size range, in.(cm) 1.25-2.0(3.18-5.1)
Max. Power Handling 250 W
Max. Wind Surface Area .82ft
Shipping Dimensions 3"x3"x80.5"
VSWR at resonance (typical) 1.2:1 All bands
Weight, lb(kg) 6.9(3.13)
Wind Survival mph(kph) >80
|
VERTICAL 10-12-15-17-20M
| Model |
MA6V | | Frequency, meters |
20,17,15,12,10,6 | | Gain, dBi |
1-2 | | Height, ft(m) |
14.7(4.48) | | Mast size range, in.(cm) |
1.25-2(3.18-5.1) | | Max. Power Handling |
250 SSB | | Maximum Wind Surface |
.82ft sq(.076m sq) | | VSWR minimum |
1.2:1 all bands | | Weight, lb(kg) |
6.5(2.95) | | Wind Survival mph(kph) |
>80 |
|
|
Frequency, meters 20,17,15,12,10,6
Gain, dBi 1-2
Height, ft(m) 14.7(4.48)
Mast size range, in.(cm) 1.25-2.0(3.18-5.1)
Max. Power Handling 250 W
Max. Wind Surface Area .82ft
Shipping Dimensions 3"x3"x80.5"
VSWR at resonance (typical) 1.2:1 All bands
Weight, lb(kg) 6.9(3.13)
Wind Survival mph(kph) >80 | | |
|
