Referencia SIRIOPA24 | SIRIO

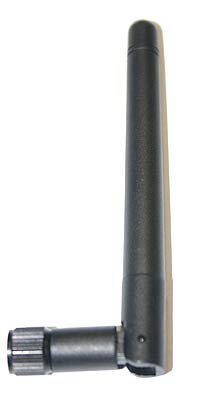

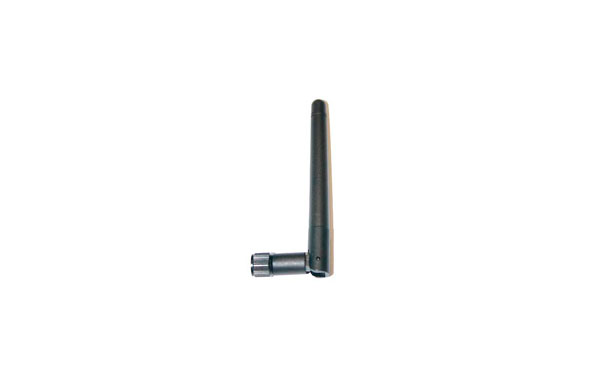

SIRIO PA 2. 4 Antena omnidirecional 2.4Ghz.

SIRIO PA 2. 4 Antena omnidirecional 2.4Ghz. Idela para routter inalambricos con conector SMA macho.

12,34€ IVA incluido ~~14,52€~~ Ahorras 2,18€ (15,00%) 10,20€ s/IVA

Disponible. Entrega estimada 2-5 días. Disponible en tienda Envio desde 30,25€

Descripción SIRIO SIRIOPA24

DESCRIPCIÓN DEL PRODUCTO

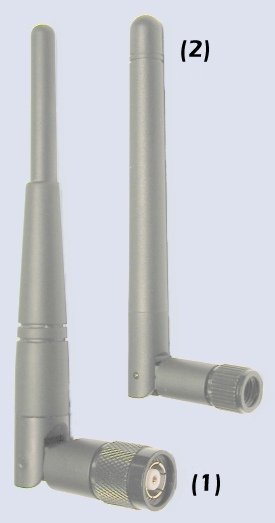

SIRIO PA 2. 4 Antena omnidirecional 2.4Ghz. Idela para routter inalambricos con conector SMA macho. Con inclinación 90ª Imagen N (2)

SIRIO SIRIOPA24

	Omnidirectional
	Mono-band, Unity-gain

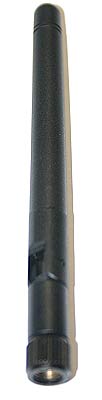

	90° inclination adjustable radiator
	High quality radiator protected by thermoplastic material
	For WLAN system

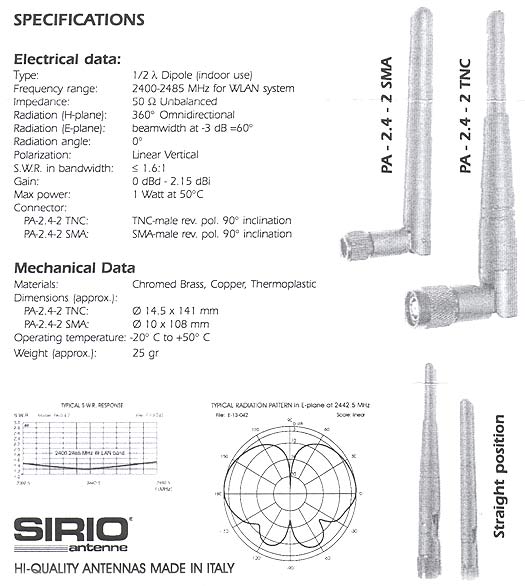

CARACTERÍSTICAS

Electrical data
	Type: 1/2 %u03BB Dipole
	Frequency range: 2400-2485 MHz for WLAN system
	Impedance: 50 %u03A9 unbalanced
	Radiation (H-plane): 360° omnidirectional
	Radiation (E-plane): beamwidth at -3 dB = 60°
	Radiation angle: 0°
	Polarization: vertical
	Gain: 2.15 dBi
	V.S.W.R. in bandwidth: %u2264 1.8:1
	Max. power: 1 Watt (CW) at 50° C
	Feed system / position: direct / center

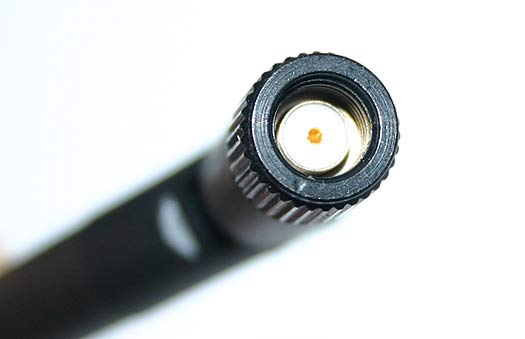

	Connection: PA-2.4-2 TNC: TNC-male reverse polarity, 90° inclination PA-2.4-2 SMA: SMA-male reverse polarity, 90° inclination

Mechanical data
	Housing Materials: Chromed Brass, Copper, Thermoplastic
	Operating temperature: -20° C to 50° C
	Dimensions (approx.): PA-2.4-2 TNC: Ø 14.5 x 141 mm PA-2.4-2 SMA: Ø 10 x 108 mm
	Weight (approx.): 25 gr
