NX-200E3 NEXEDGE KENWOOD Walkie Talkie digital and analog VHF 136 -

KENWOOD NEXEDGE NX-200E3 Walkie talkie digital VHF (136-174 Mhz) SIN TECLADO 63921
Available product.
  • NX200E3
  • NX-200E3 NEXEDGE KENWOOD Walkie Talkie Digital VHF (136-174 MHz) WITHOUT KEYBOARD This walkie...

    More info

  • 706,00€
  • VAT not included

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..

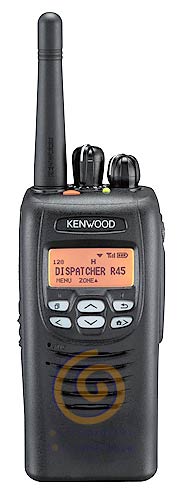

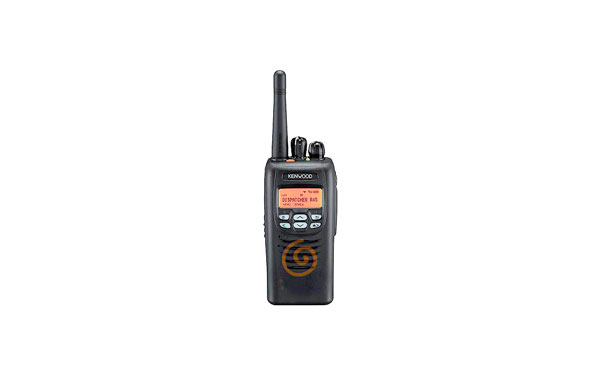

NX-200E3 NEXEDGE KENWOOD Walkie Talkie Digital VHF (136-174 MHz) WITHOUT KEYBOARD

This walkie talkie lets you enjoy digital communications in all its splendor, brightness, sharpness and confidentiality are the three major ranks of this new system. Kenwood offers her new professional team to adapt to new technology

Power W 1-5

Digital Air Interface NXDN
AMBE +2 vocoder with natural-sounding digital voice
Work in NXDN Digital FM Analog Conventional and even in the same channel
Auto Receive Mode (Digital or Analog)
Conventional Digital Mode and Digital Trunking
Core Digital Multi-site, to 60000 and 60000 UIDs GIDs by network
Multi-Site IP Network Compatible
Channeling real 6.25kHz
Includes the mode-to-Radio Radio (without repeater)
MIL-STD 810F certification, which includes immersion at 1 meter


Digital Air Interface NXDN

Digital Air Interface NXDN



Technical Specifications

Frequency range 136 to 174 MHz
Number of channels 512
Conversation Groups If
Channel Frequency Spread 38 MHz
Channel Spacing - Analog - Wide / Medium / Narrow 25 kHz/20 kHz/12, 5 kHz
Channel Spacing - Digital - Wide / Narrow 12.5 kHz / 6.25 kHz
Antenna Impedance - 50 Ohm Yes
Battery life With KNB-48L to 05.05.1990 Ratio = More than 12.5 hours
Frequency Tolerance ± 2 ppm (-30 ° C to + 60 ° C)
Operating temperature -30 ° C to + 60 ° C
Operating Voltage 7.5 V DC ± 20%
Dimensions 58 x 127.5 x 41.3 mm (Radio only)
Weight (net) 250g (Radio only) / 375g (with battery KNB-47L)

Receiver Specifications

Adjacent Channel Selectivity (Analog) 25KHz/20KHz/12.5KHz = 73dB/73dB/65dB
Audio output power 500 mW with less than 3% distortion. 8 Ohms impedance
Intermodulation (Analog) 65 dB
Sensitivity (Analog) - EIA 12 dB SINAD Microvolt/0.32 microvolt/0.28 25KHz/20KHz/12.5KHz = 0.28 microvolt
Sensitivity (Analog) - AT 20 dB SINAD =-3dB 25KHz/20KHz/12.5KHz microvolt/-3dB microvolt/-1 dB microvolt
Sensibiildad (Digital) Microvolt microvolt/-2dB 12.5KHz/6.25KHz = 1dB at 1% BER, 0.32 microvolt microvolt/0.25 3% BER
Spurious response rejection 75 dB

Transmitter Specifications

RF output power (High / Low) 5 W / 1 W
FM Noise (EIA) Analogue - 25KHz/20KHz/12.5KHz - 45dB/45dB/40dB
Microphone impedance 1800 Ohm
Modulation Distortion Less than 3%
Modulation Limiting Analog - 25KHz/20KHz/12.5KHz - ± 5kHz / ± 4 KHz / ± 2.5KHz
Spurious Emission (EN) -36dBm to / less than 1 GHz,-30dBm above 1 GHz
