3E145 SIGMA SIGMA 3 element YAGI antenna directive VHF 144-146 Mhz.

3E145 SIGMA SIGMA 3 element YAGI antenna directive VHF 144-146 Mhz.

SIGMA3E145

Referencia: SIGMA3E145 (VARIOS)

avalaible

54,45 incl. VAT

45,00€ w/o VAT

BUY NOW

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

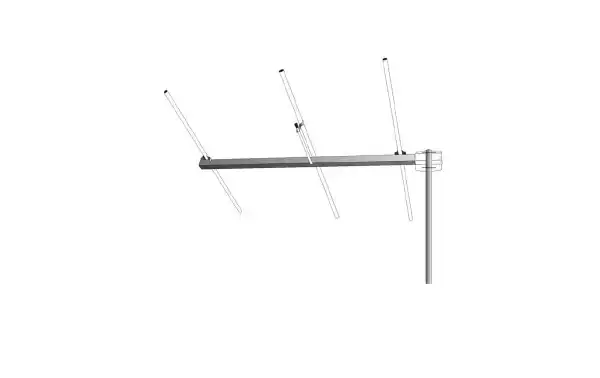

Sigma 3E145

Manufactured by the prestigious Italian firm SIGMA ANTENNE, this directive antenna type YAGI of 3 elements for VHF frequency 144 146 Mhz. It is made of high quality anticorrosive aluminum.

Its length is 1 meter. Gain: 7 dB. Maximum power: 200W.
Su longitud es de 1 metro. Ganancia: 7 dB. Potencia máxima: 200W.


Features

Caracteristicas

Frequency:
143 147 Mhz.
  • Impedance: 50 ohms
  • Connector type: N
  • SWR: approx. 1.1 in center band
  • Profit: 7 dB
  • Front / back ratio: 17 dB
  • Maximum Power: 200W
  • Polarization: vertical / horizontal
  • Elements: 3 elements
  • Dimension of the Boom: 1,000 mm x 30 mm x 30 mm 3 elementos
  • Weight: 1.4 kg. 1.000 mm. x 30 mm x 30 mm.
  • Peso: 1,4 kg.
