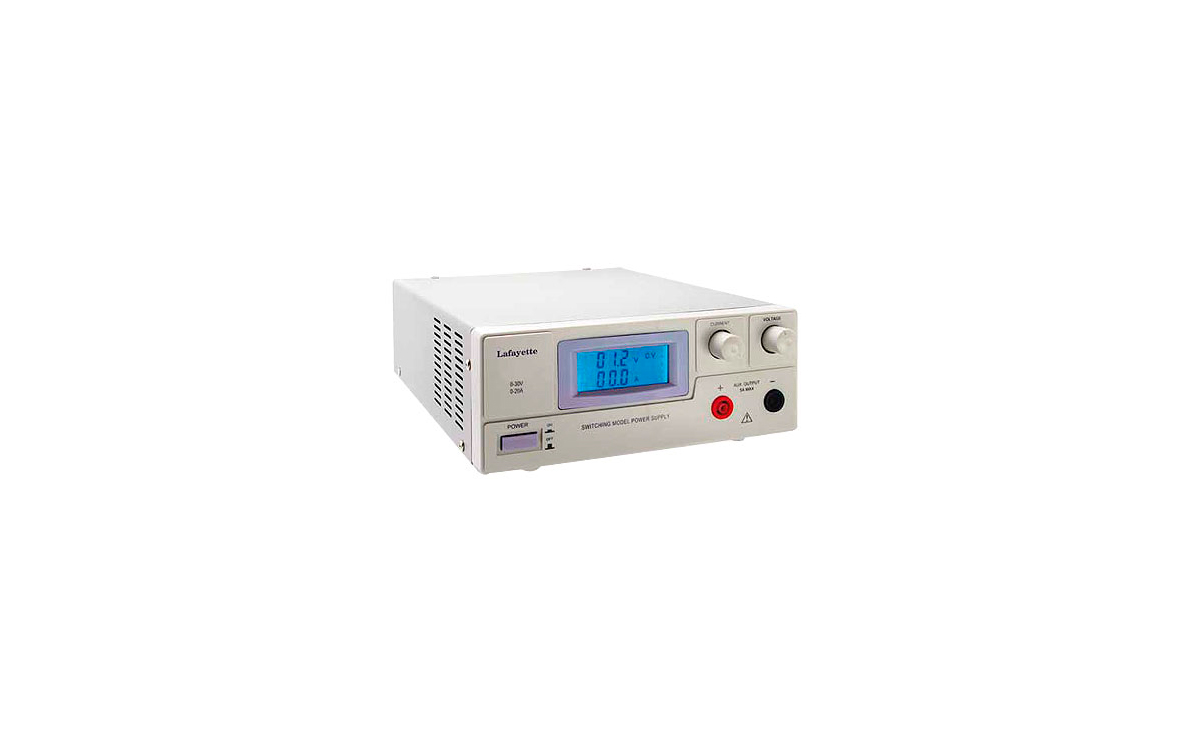

Switching Power Supply LAFAYETTE ALP30A adjustable 0-30 Volts. 0 -30 Amp

ALP-30A

ALP-30A Switching Power Supply LAFAYETTE adjustable 0-30 Volts. 0 -30 Amp
High Efficiency
Adjustable output voltage 0 ~ 30V
light and small weight
Protection Over Voltage and Temperature
High RFI stability
Protecion short
Low ripple and noise

Features

• ALP30A LAFAYETTE Switched Power Supply adjustable 0-30 Volts. 0 -30 Amp
  Voltage Output
  Variable Output Voltage: 0 - 30V
  Nominal output: 0 - 30A
  Voltage Regulation
  Load (10-100%): 50mV
  Line (200/240 Vac): 20mV
  Current Control
  Load: 100mA
  Line (200/240 Vac): 50mA
  Ripple and Noise
  RMS Voltage: 5 mV
  peak to peak voltage: 50mV
  Switching frequency: 65 - 85Khz
  Counter type and precision
  Voltage counter: 3 digit LCD display ± 0.2% 3count
  Electricity Meter: 3-digit LCD display ± 0.2% 3count
  Input voltage: 200-240VAC 50 / 60Hz
  Protection: overload / over temperature
  Size: 336 x 87 x 214mm
  Weight: 2.9kg
