ref. SS825BC
SS 825 BC HOXIN. Switched-mode power supply 13.8 volt 22 25 Amp. max.
This innovative source is equipped with a system through which, in addition to connecting your station, you can connect a 12-volt battery that will remain charged through the use of the source and will always be ready for a possible power failure, after which the source will continue supplying current of the battery immediately.
Esta
innovadora fuente está
dotada de un sistema
por el cual además de
conectar tu emisora
podrás conectar un
bateria de 12 voltios
que a través del propio
uso de la fuente
permanecerá cargada y
estará siempre
preparada ante un
posible apagon tras el
cual la fuente seguira
suministrando corriente
de la bateria de forma
inmediata.
|

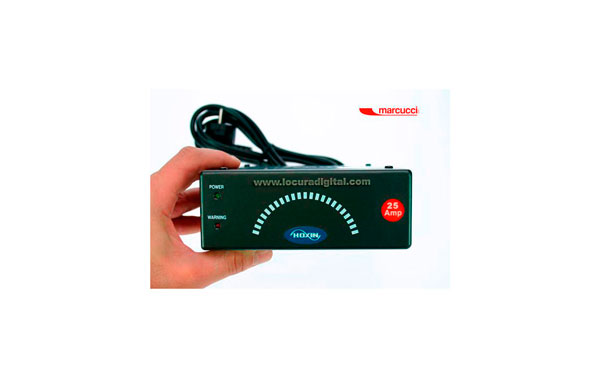

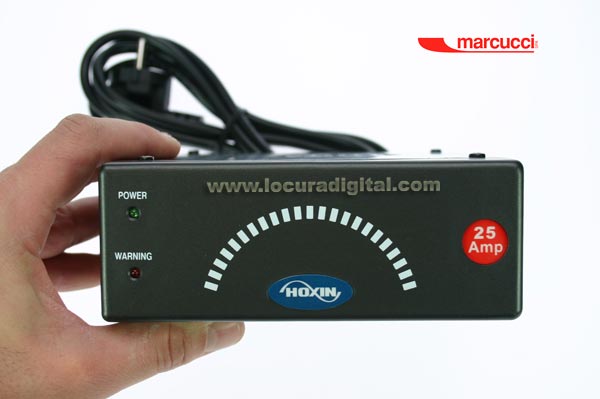

On the front you can see 2 LEDs (lights and ndicators) the POWER indicates that the source is running, the WARNING indicator should come on is that it warns of a problem: short circuit, overload, output overvoltage (greater than 16 volts ) or overload of the source.
En el frontal se pueden ver
2 leds (luces i ndicadoras)
el de POWER indica que la
fuente está en marcha, el
indicador WARNING si
llegara a encenderse es que
advierte de algún problema:
cortocircuito, sobrecarga,
sobretensión de salida
(superior a 16 voltios) o
sobrecarga de la
fuente.
|
It has a powerful fan in the upper part so that the equipment works in the best heat conditions.
Dispone de un potente
ventilador en la parte
superior para que el equipo
trabaje en las mejores
condiciones de calor.

|
In spite of supplying a great power, the source has a few measures: 165 x 150 x 55 mm. and a weight of 1.4 kg.
A
pesar de suministrar
una gran potencia, la
fuente tiene unas
medidas reducidas: 165
x 150 x 55 mm. y un
peso de 1,4 kg.
On the back you can see the connection, where it indicates DEVICE is the output of 13.8 volts where the transmitter or the device you want to feed is connected. Where indicates BATTERY ONLY is the optional entrance where it is connected if the user wants a battery, which will remain charged by the system of the power supply itself and that will start up automatically in case the power grid falls. In this way the radio or device connected to the source can continue to be used after a power failure. |
En la parte posterior se
puede ver el conexionado,
donde indica DEVICE es la
salida de 13,8 voltios
donde se conecta la
emisora o el aparato que se
quiera alimentar. Donde
indica BATTERY ONLY es la
entrada opcional donde se
conecta si el usuario lo
desea una batería, que
permanecerá cargada por el
sistema de la propia fuente
de alimentación y que se
pondrá en marcha de forma
automática en caso de que
caiga la red electrica. De
esta forma la radio o
aparato conectado a la
fuente se podrá seguir
usando tras un apagón.

|
|
|
|
| CHARACTERISTICS
|
|
CARACTERÍSTICAS |
|
|
|
|
|
Input power: 200 240 volts
Output power: 13.8 volts fixed Alimentación de
entrada: 200
240 voltios
Protections: against short circuit, against overload, against over voltage and over load. Alimentación de
salida: 13,8
voltios fijaOutput current: 22 continuous amps, maximum 25 amps.
Dimensions: 165 x 150 x 55 mm.
Weight: 1.4 Kg. 22
Amperios continuos , 25
amperios máxima.
Dimensiones:
165 x 150 x 55
mm.
Peso:
1,4 Kg.
|
|
|
