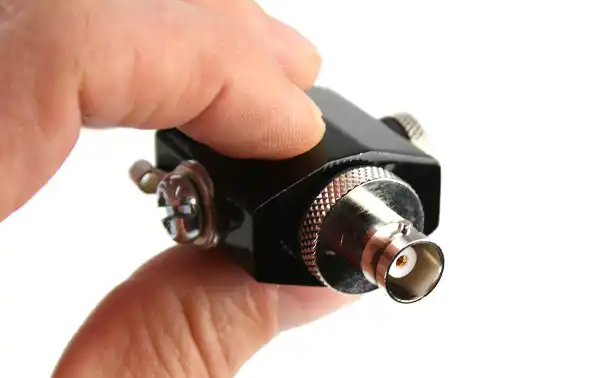

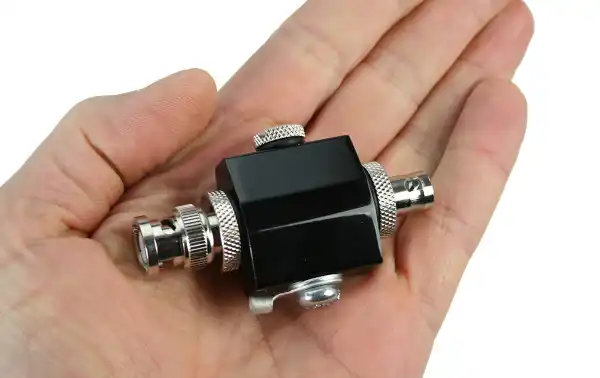

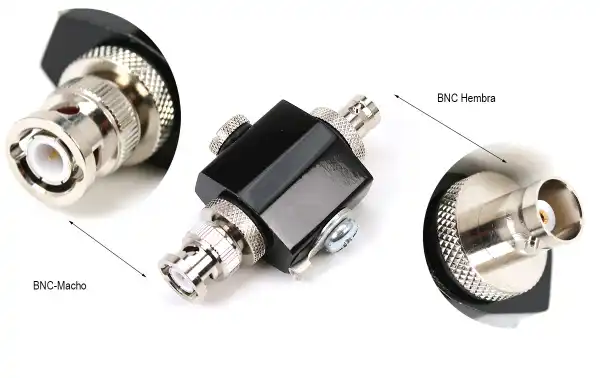

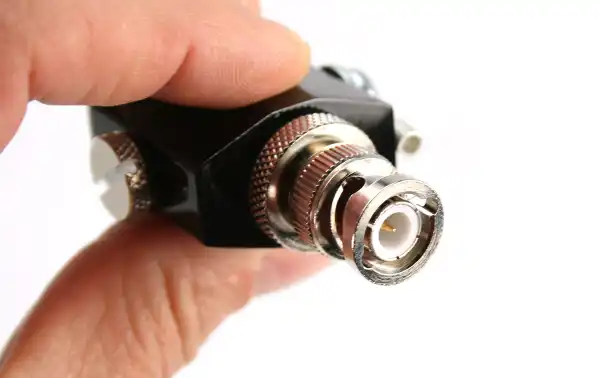

CA35BNCMHProtector against lightning discharge connector BNC MALE-BNC FEMALE
CA35BNCMH Protector against lightning discharges BNC MALE-BNC FEMALE connector. Coaxial DC lightning protector at 500 Mhz Maximum power 400W. The coaxial lightning surge protector protects your valuable communication equipment from lightning strikes.
Make the first review43,92€ VAT included 36,30€ excl. VAT
Description CA35BNCMH
HKCA35-NCMH

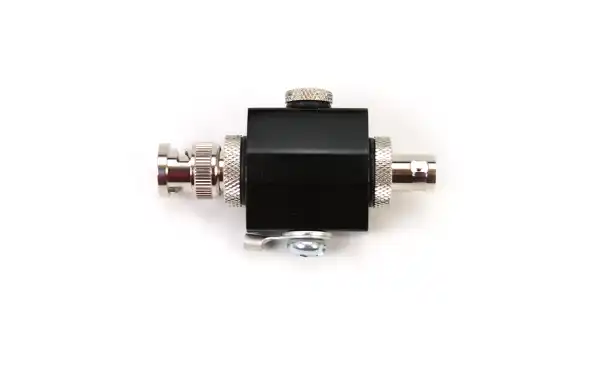

Coaxial DC lightning protector at 500 Mhz Maximum power 400W. The coaxial lightning surge protector protects your valuable communication equipment from lightning strikes. The lightning protector is the element that prevents electrical discharges from storms from entering the installation and reaching the installed elements, for example mast amplifier, power supplies, radio station, etc. The arrester absorbs the electricity and diverts it to ground.
The ground cable with a minimum section of 3 mm is recommended.
Note: If it is installed outside, place it in a place protected from the rain.
- 1 HKCA-35-NCMH Shield
Features
- Frequencies DC-500Mhz
- HF/ VHF /UHF bands
- Impedance 50 ohms
- Maximum power 400 watts
- Connector 1 BNC Female
- Connector 1 BNC Male
- VSWR 1.1
- Star screw ground connector
- Lost 0.2dB
- Discharge capacity: 6000A
- Retention discharge capacity: DC350v ± 20%
- Insulating resistance DC100v:
- Measures 62 x 35 x 20mm
- Weight 74 grams.
