DIAMOND X700HN Dual band antenna VHF-2m-UHF-70cm

DIAMOND X700HN Special dual band antenna for VHF-144-146 Mhz repeaters. UHF-430-440 Mhz. Antenna bae bibanda DIAMOND ORIGINAL JAPANESE X-700HN. Antenna valid to transmit and receive in two bands VHF 144-146 / UHF 430-440 MHz. It has three more Manufacturer: diamond Reference X700HN

diamond
DIAMOND X700HNA Dual Band Antenna VHF-144-UHF-430 Mhz DIAMOND X700HNA Dual Band Antenna VHF-144-UHF-430 Mhz DIAMOND X700HNA Dual Band Antenna VHF-144-UHF-430 Mhz DIAMOND X700HNA Dual Band Antenna VHF-144-UHF-430 Mhz DIAMOND X700HNA Dual Band Antenna VHF-144-UHF-430 Mhz
DIAMOND X700HNA Dual Band Antenna VHF-144-UHF-430 Mhz
available
312,18 incl. VAT
258,00€ w/o VAT
Delivery price from 30,25€

DIAMOND X-700-HN (X-700H connector N)

diamond x30 ORIGINAL DIAMOND JAPAN

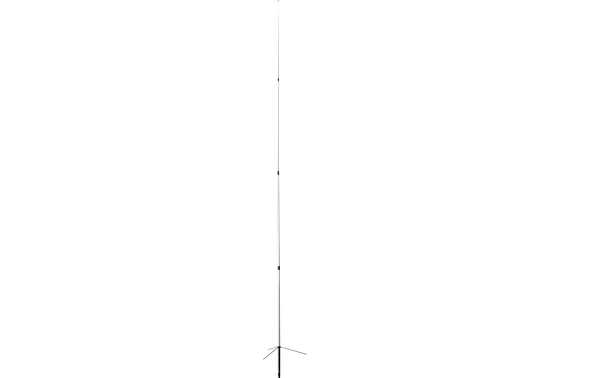

The DIAMOND X700H N is a VHF-144-146 Mhz SUPER ANTENNA. UHF 430-440 Mhz. High performance. DIAMOND ORIGINAL JAPANESE X-700-H N. Antenna valid to transmit and receive in two bands VHF 144-146 / UHF 430-440 MHz. It has three radials. It can be installed on a mast diameter 30 mm to 60 mm. Connection type N female. White fiber antenna length 7.3 meters. Composed of four sections. Connector No.

DIAMOND X700HNA Antena doble banda VHF-144-UHF-430 Mhz

DIAMOND X-700 HN Kit Contents
  • 1 White fiber antenna with three sections.

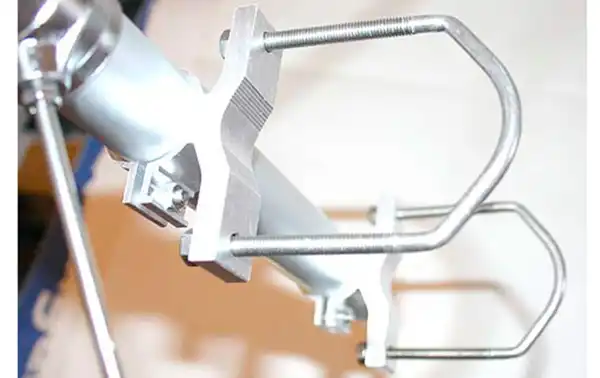

  • 2 Clamps for mast from 30 mm to 60 mm
  • 3 Radials
  • 1 English assembly manual.

antena base bibanda diamond original japonesa x-30 .antena valida para transmitir y recibir en dos bandas vhf/uhf. dispone de tres radiales.se puede instalar en mastil diametro 30 mm a 60 mm. tipo de conexion n. longitud 1,3 m. un tramo.

You may be interested in the PL adapter see link click <<< here >>>

Features

  • Impedance: 50 Ohm.
  • Frequencies VHF-144-146 mhz / UHF-430-440 Mhz
  • VHF gain: 9 dB
  • UHF gain: 13 dB
  • Maximum power: 200 watts.
  • VHF wavelength 4 x 5/8 (2m)
  • Wavelength UHF 11 x 5/8 (70cm)
  • Antenna length: 7.3 meters
  • Weight: 3.8 kg.
  • SWR: 1.5 SWR
  • Connector: N female

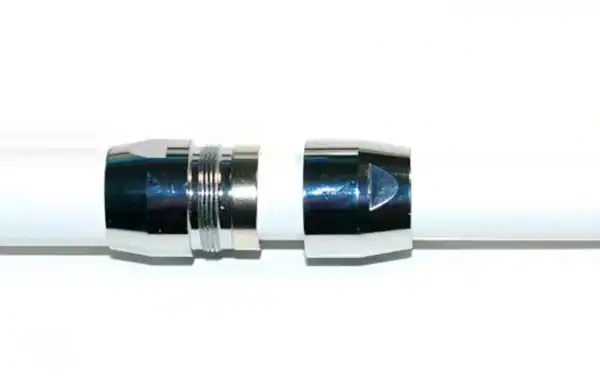

  • Sections: 4 joined
  • Radials: 3 rods
  • Rod material: Stainless steel.
  • Maximum wind resistance: 40m / sec
