RH200INT special 50 ohm coaxial cable for radio VERY LOW LOSS, with

RH200INT special 50 ohm coaxial cable for radio VERY LOW LOSS, with

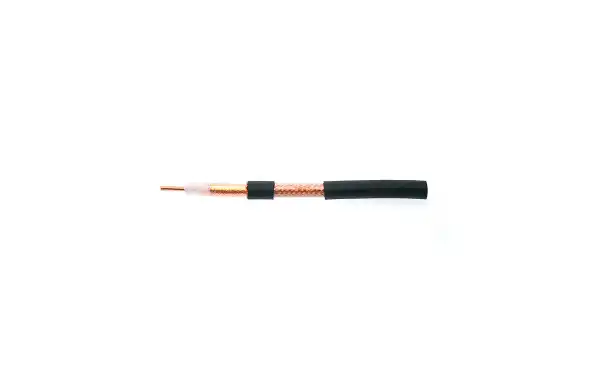

RH200INT

Referencia: RH200INT (VARIOS)

avalaible

3,21 incl. VAT

2,65€ w/o VAT

BUY NOW

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

COAXIAL CABLE OF VERY LOW LOST THE MOST RECOMMENDED !!!

ref. RH200INT ref. RH200INT

RH 200 INT. Coaxial cable of 50 ohms of VERY LOW LOST, special for radio communication. Thanks to its double shielding: 96% copper mesh, super conductive copper foil, this cable guarantees the maximum shielding. It is undoubtedly the most recommended in important cable runs thanks to its low loss at a really attractive cost for the high performance of this cable. RH 200 INT. Cable coaxial de 50 ohms de MUY BAJA PERDIDA, especial para radiocomunicación. Gracias a su doble apantallamiento: malla de cobre al 96% lámina de cobre super conductora, esta cable garantiza el máximo apantallamiento. Es sin duda el más recomendable en tiradas de cable importantes gracias a su baja perdida a un coste realmente atractivo por las altas prestaciones de este cable.

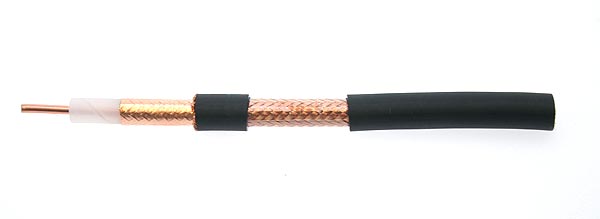

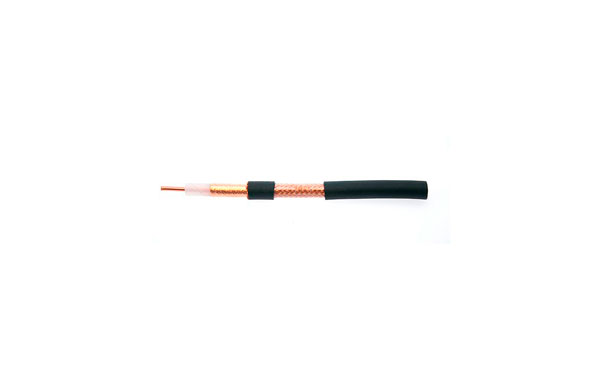

In the photos you can see the double shielding: 96% copper MESH copper foil super conductive.

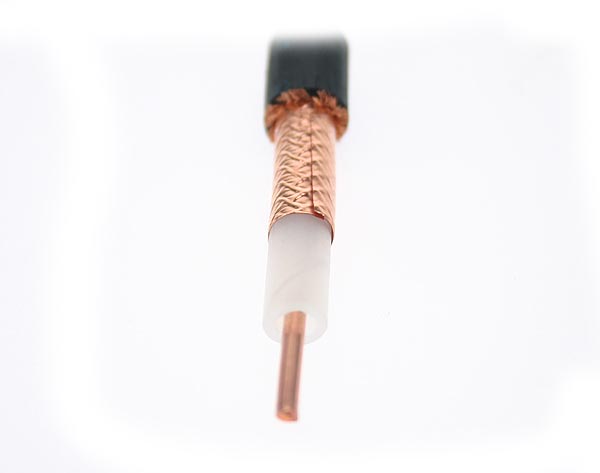

In the photo below you can see the most characteristic of this cable, its copper foil and above the mesh, which guarantees a double shielding for which a very low loss of signal.

En la foto de abajo se puede ver lo más caracteristico de este cable, su lámina de cobre y por encima la malla, lo cual garantiza un doble apantallamiento por lo cual una muy baja perdida de señal.

The attenuation table is really amazing:

27 Mhz. Attenuation of 1.3 dB / 100 meters La tabla de atenuación es realmente sorprendente:

50 Mhz. Attenuation of 2.5 dB / 100 meters

27 Mhz.    Atenuación de 1,3 dB/100 metros100 Mhz. Attenuation of 3.6 dB / 100 meters

150 Mhz. Attenuation of 4.4 dB / 100 meters

200 Mhz. Attenuation of 5.3 dB / 100 meters 100 Mhz.   Atenuación de 3,6 dB/100 metros

400 Mhz. Attenuation of 7.9 dB / 100 meters

150 Mhz.   Atenuación de 4,4 dB/100 metros600 Mhz. Attenuation of 10 dB / 100 meters

860 Mhz. Attenuation of 12.1 dB / 100 meters

1000 Mhz. Attenuation of 13.2 dB / 100 meters

1750 Mhz. Attenuation of 18.7 dB / 100 meters

2400 Mhz. Attenuation of 22.2 dB / 100 meters

1000 Mhz. Atenuación de 13,2 dB/100 metros

1750 Mhz. Atenuación de 18,7 dB/100 metros

2400 Mhz. Atenuación de 22,2 dB/100 metros











CHARACTERISTICS Central Driver: 1 thread of 2.50 mm. Outside diameter: Mesh coverage: to 96%. 192 threads of 0.15 mm. (96% coverage)
CARACTERÍSTICAS
10.30 mm
I

mpedance: 50 ohms 1 hilo de 2,50 mm.

Propagation speed: 84% 10,30 mm.

Cobertura de la malla:  al 96%. 192 hilos de 0,15 mm. (cobertura del 96%)

I mpedancia: 50 ohmios

Velocidad de propagación:  84%
