DXSR8E 1.9-29MHz ALINCO HF radio SSB / CW / AM / FM

DXSR8E ALINCO emisora HF 1.9-29MHz SSB/CW/AM/FM 66922
Not available product.
  • DXSR8E
  • Original station ALINCO works 1.9-29MHz HF bands SSB / CW / AM / FM

    More info

  • 630,00€
  • VAT not included

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..

ALINCO DXSR8E HF 1.9-29MHz radio SSB / CW / AM / FM

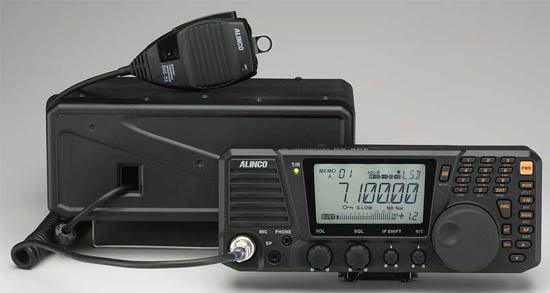

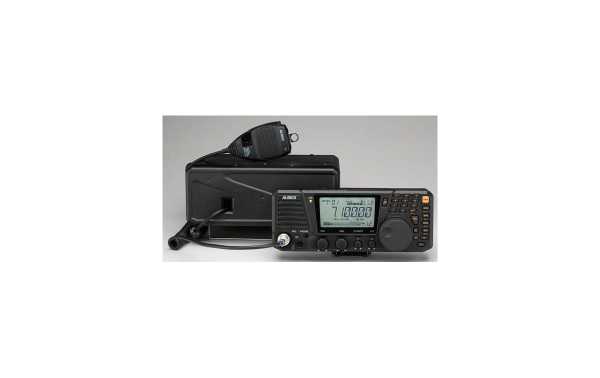

Control detachable front panel
fully detachable front panel control with a large LCD screen allows the installation of radio flexibility, whether in your car, boat or home. (Optional EDS-17 cable required)

The power output has three steps, with a maximum of one hundred watts. The lower level is dedicated to QRP transmissions and its output can be set internally in the plate, between 0.1 and 2 watts.

Is cooled by a large fan that sends air flow to the two transistors responsible for providing the 100 watts of output.

It has good sensitivity and is a bit wide in selectivity, even in the narrow band pass. Working with him from our editorial impressions are good, provided on the basis that its reason for being is the ultimate ease of use, which makes it very suitable for those who do not want to complicate your life with extensive menus and numerous functions.

RF attenuator and preamplifier selectable in 4 steps, / 3 TX output power levels with a Super-low setting (QRP variable 0.1W ~ 2 W) / Double memories VFO / 600ch in 3 banks / Connections Auto- antenna tuner and line output amplifier ALC / independent in the AF level, RIT muffler, and if shifter / Dial lock and key lock / TX-RX lamp / alphanumeric display / Auto-Off / CTCSS code for 10 million hits FM repeater / microphone headset and external speaker on the front panel / Large, temperature-controlled internal cooling fan power anti-overheating limiter / protection of high SWR.

The DX-SR8 covers all HF bands in all modes (at reception ranges from 135 KHz to 30 MHz), but what the manufacturer has done it is to apply technology that takes pride in the recipients scanner (in Alinco which figures prominently), giving the new HF six hundred memories divided into three banks.

Frequency shift has intermediate-band two steps, wide and narrow, and a two-level attenuator, -10 and -20 dB.

Theoretically, the passband width is 9 kHz for AM, 2.4 kHz SSB and Morse 1 KHz, the Strait is 2.4 KHz in AM, 1 KHz and 0.5 KHz SSB Morse.

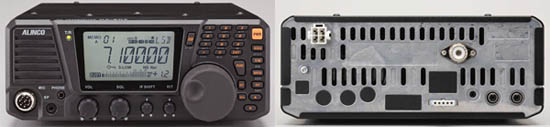

ALINCO DXSR8E HF 1.9-29MHz radio SSB / CW / AM / FM

ALINCO DXSR8E HF 1.9-29MHz radio SSB / CW / AM / FM


Esp ecificaciones
Mode of operation J3E (USB, LSB), A3E (AM), A1A (CW), F3E (FM)
Impedance of the antenna 50ohm unbalanced
Frequency Stability + /-1ppm
Energy Demand 13.8 V DC + / -15% (from 11.7 to 15.8V DC)
Land method Negative ground
Power Consumption Receiver: 1.20(max.) 0.7 (Mute)
Transmission: 23C/b>
Operating Temperature -10digC to 60digC (+14 to +140 digF digF)
Dimensions 240 (w) x 94 (H) x 255 (D) mm (projections not included)
(9.45 "(w) x 3.7" (H) x 10 "(d)
240 (W) x 100 (H) x 293 (d) mm
(9.45 "(w) x 3.94" (h) x 11.54 "(d)
Weight Approx. 4.1kg (144.6 oz)
Output power SSB, CW, FM: 100 W (Hi) Approx. 10W (bass) Approx. 1 W (S-Low)
AM: 40W (Hi) Approx. 4W (on) Approx. 0.4 W (S-Low)
The modulation system SSB: Balanced modulation
AM: Modulation of low power
FM modulation of the reactance
Spurious emissions Less than-50dB (A less than-45dB in the range of 30m)
Carrier suppression More than 40dB
Unwanted sideband More than 50 dB (1 kHz)
Maximum FM deviation + /-2.5KHz
Receiver circuitry Double-conversion superheterodyne
Sensitivity SSB: (0.15 to 1.8MHz) 0dBu (1UV)
CW: (1.8 to 30 MHz)-12dBu (0.25uV)
AM: (0.15 to 1.8MHz) +20 dBu (10uV)
AM: (1.8 to 30 MHz) +6 dBu (2UV)
FM: (28 to 30 MHz)-6dBu (0.5uV)
Intermediate frequency 71.75MHz first, second 455KHz
Selectivity SSB, CW, AM (narrow): 2.4KHz/-6dB 4.5KHz/-60dB
AM, FM: 6KHz/-6dB 18KHz/-60dB
-6dB: 6kHz or more
-60dB: 16KHz or less (NFM)
Spurious rejection ratio and image More than 70dB
Audio Output More than 2.0W (8ohm 10% THD)
RIT variable range + /-1.2kHz
(U.S. / Canada Amateur)
(Amateur European regions and others)
Microphone Impedance 300ohm
Transmit frequency coverage 160m band
(1.8 m)
1.80000 - 1.99999MHz 1.80000 - 1.99999MHz
80m band
(3.5 M)
3.50000 - 3.99999MHz 3.40000 - 3.99999MHz
* Band of 60m
(5.3 million)
40m band
7.00000 - 7.29999MHz 6.90000 - 7.49999MHz
30 meter band
10.10000 - 10.14999MHz 9.90000 - 10.49999MHz
20m band
14.00000 - 14.34999MHz 13.90000 - 14.49999MHz
17m band
18.06800 - 18.16799MHz 17.90000 - 18.49999MHz
15m band
21.00000 - 21.44999MHz 20.90000 - 21.49999MHz
12 meter band
24.89000 - 24.98999MHz 24.40000 - 25.09999MHz
10 meter band
28.00000 - 29.69999MHz 28.
