KAD BIBAND ANTENNA OF FIBER And STAINLESS STEEL 143-147/430-450 MHz D

KAD BIBANDA GARUTA 61867
Available product.
  • KADBIBANDA
  • KAD BIBAND ANTENNA OF FIBER And STAINLESS STEEL 144/430 MHZ. Been worth antenna to transmit and to receive...

    More info

  • 118,00€
  • VAT not included

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..


DESCRIPTION OF THE PRODUCT

ANTENNA BIBAND KAD GRAUTA

Antenna BASES BINDA

Antenna of high performance
KAD BIBANDA

ASK FOR A TRANSPORT BUDGET BEFORE PAYMENT

KAD BIBAND ANTENNA OF FIBER And STAINLESS STEEL 144/430 MHZ. Been worth antenna to transmit and to receive in two bands VHF/UHF. Radiales.Se has 4 can install in mastil diametro 30 mm to 45 mm Type of connection N. Longitud  2,84 m.s a section.

CHARACTERISTIC:

Power Power: 200W

- Connector Connector: "N"

- Gain Gain: 6dB (144MHz), 8dB (430MHz)

- Impedance Impedance: 50 ohms

- R.O.E. S.W.R.: 1.2

- Weight Weight: 1,6 kg

- Length Wave wave 2 Xs  5/8 (COLINIAL)

- Lenght Length: 2.84 ms







CHARACTERISTICS

Type - Type - Type
2 colinear xs 5/8
Frequency - Frequency - Fréquence
143-147/430-450 MHz
Power - Power - Puissance
200 W
Gain - Gain (dB) - Gain
6 dBd/8 dBd
Polarization - Polarization - Polarisation
Vertical
Impedance - Impedance - Impédance
50 Ohm
Type of adjustment - Adjust type - Type d'ajustage
Ajustada/Ajusted

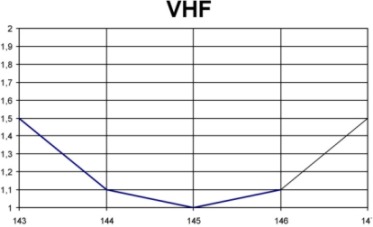

R.O.E - S.W.R
1,2:1
Assembly - Mounting (mm)
Mástil/Mast 30-45 mm
Type conect. - Type of conn. - Type of conn.
N Female N Female
Gross weight - Gross weight (gr..)
1620 gr.. (1pcs)
Dimensions - Packages dimensions (cm)
10 xs 300 cm
Long.Radiante - Radiator Length - Radiant Longueur
2840 mm
Long.Elemento - Element Length - Element Longueur
4 xs 520 mm
