LAFAYETTE VENUS

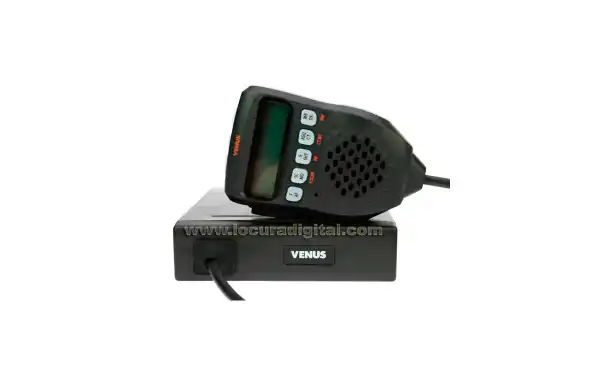

LAFAYETTE VENUS CB 27 Mhz. Transceiver with subtones.

RADIO WITH MICROPHONE EXTENSION CABLE!

CB 27 Mhz transceiver. AM / FM. This is a mobile transceiver with easy and immediate use, which gives the possibility to select any CB band, so it can be used in all European countries.

Supplied with the smart microphone.

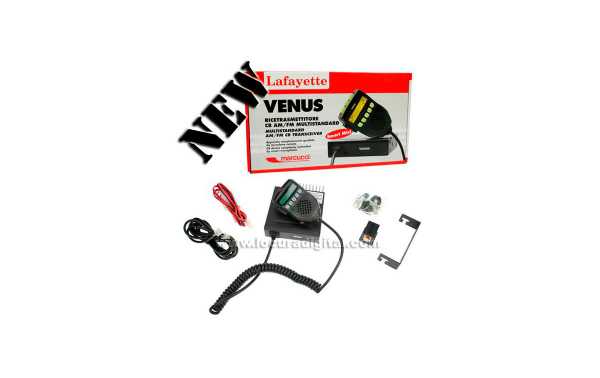

DC power cable with fuse, mounting bracket and screws, 3-meters extension cable and user’s manual.

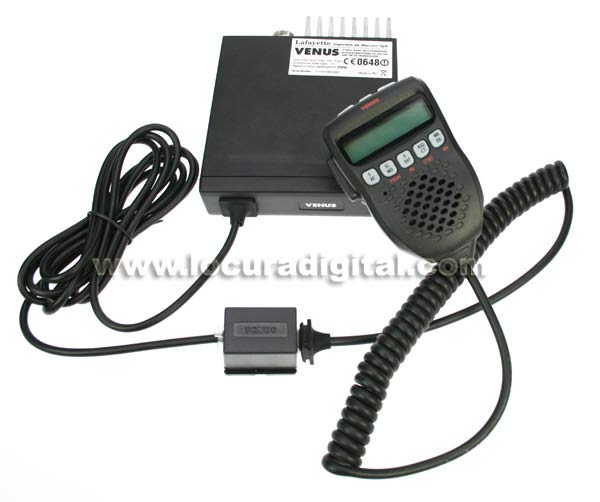

Equipped with a 2-meters extension cable to extend the reach of the microphone, which at the same time is the transmitter (microphone cable 1meter), allowing you to place the radio in different parts of the car, such as under a seat.



Viewing the operating frequency and channel number

Scanning with adjustable stop and restart set on 4 levels

Priority Channel

Multi-frequency adjustment

Backlight display and keys in three colours (green, blue and yellow)

Timeout Timer function

Roger Beep Button operation with audible signal (beep key)

Volume control (40 levels) / ON / OFF

9 levels with adjustable squelch function (ASQ)

Received signal strength indicator

Power transmission indicator

Direct access to emergency channel 9 or 19

Local DX Function

Key lock

Microphone cable with RJ45 modular connector for quick installation

Socket for external speaker

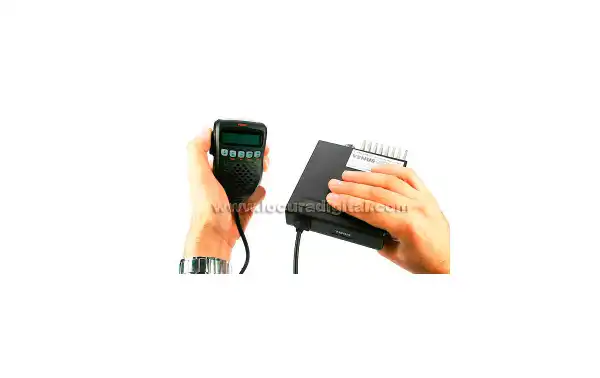

Screen, microphone, speaker and all the control buttons are integrated into the microphone control.

The remote control is equipped with a cable with a special connector to link it to the radio.

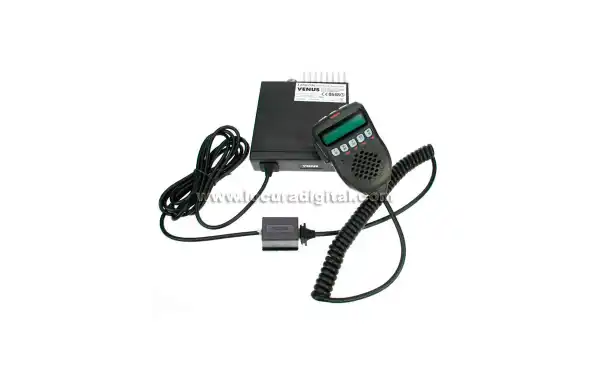

Extension cable: up to 3-meters distance between the front panel and the module is possible.

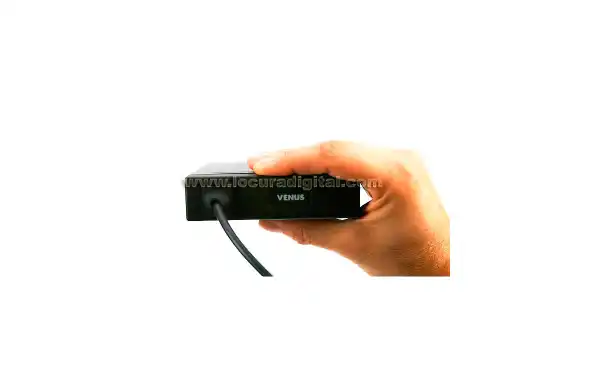

By design, its installation in vehicles is very flexible. The black box can be easily installed in the car seat or in other parts of the car using the extension cable.







Features

Channels:

The regulations of various countries set:

Germany Band = 80 FM channels 4W / 1W 40 AM channels

CE Volume = CEPT 40 FM channels 4W

EU Volume = European Union of 40 FM channels 4W / 40 AM channels 1W

E Band = Spain, Italy, 40 FM channels 4W / 40 AM channels 4W

U Band = UK 40 FM channels 4W CEPT / 40 FM UK-Channel 4W

Po Band = Poland 40 FM channels 4W / 40 AM channels 4W



Modes:

AM / FM



Features and functions:

LCD backlight display, with display of frequency channels, S-Meter, etc.

CTCSS function possible in FM mode (38 CTCSS codes selectable)

Roger Beep (switchable)

Scan and Priority scan functions

Surge protection circuit

Manually adjustable squelch

Quick access to channels 9 and 19

4 memory channels

Adjustable volume in 40 steps

RX / TX indicator

Programmable timer timeout (Time Out Timer)

Illumination of the screen available in three colours or off

Recognize the key tones (disabled)

Local / DX switch

Reset function

Selectable key lockout

3,5mm jack for external speaker on the back of the black box



Audio output power:

max. 2 W @ 8 Ohm



Power Supply:

DC 13,8 V



Dimensions W x D x H mm:

Microphone 95 x 58 x 25

Radio 29 x 108 x 136



Weight:

Radio: 480g.

Microphone : 140g.
