KIT ZEUSBLACK A. CB 27 Mhz transmitter. LAFAYETTE BLACK ZEUS br

LAFAYETTE ZEUS BLACK KIT A. INCLUYE ANTENA SIRTEL S9 + SOPORTE PARA RETROVISORES KF 110 + CONECTOR PL 259 PARA EMISORA. 62839
  • LAFAYETTE ZEUS BLACK KIT A. INCLUYE ANTENA SIRTEL S9 + SOPORTE PARA RETROVISORES KF 110 + CONECTOR PL 259 PARA EMISORA. 62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
  •  62839
Available product.
  • ZEUSBLACKKITA
  • LAFAYETTE A. ZEUS BLACK KIT INCLUDES ANTENNA SUPPORT SIRTEL MIRRORS S9 + KF 110 + CONNECTOR FOR...

    More info

  • 115,00€
  • VAT not included

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..

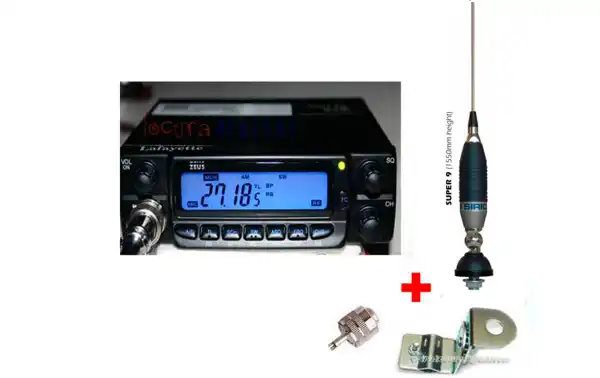

LAFAYETTE BLACK ZEUS.

! COMPLETE KIT READY TO ASSEMBLE AND USE!

CB 27 Mhz transmitter. high performance. Color BLACK.

INCLUDES ANTENNA SUPPORT SIRTEL MIRRORS S9 + KF 110 + CONNECTOR FOR STATION PL 259.

40 channels AM / FM. Innovative and stylish appearance, type car radio, backlit LCD screen in blue. It has the dual-channel listening, role of channel number or frequency of the same, three memoirs, roger beep, Automatic noise eliminator, direct access to emergency channel, etc ..., size small to enormous benefits.

Important

E24 compliant mount which allows electronic equipment in public transport vehicles

40 CH AM / FM, 4-watt AM / FM, 27 Mhz CB Issuer.

  • TL / RB (low Tone / Roger Beep) button
  • SCH / BP (Sub Channel / Beep Tone)
  • SW / SC (Sub Watch / Scan)
  • Auto Squelch / Memory 1 (ASQ/M1)
  • Frequency / Memory 2 (FRQ/M2)
  • CH9/Memory 3 (Emergency Chanel9/M3)
  • Power / Sound Volume
  • LCD Display
  • Chanel Adjustment
  • Squelch Adjustment
  • Rx / Tx LED Indication
  • 8 pins

    view more images Lafayette BLACK ZEUS do>>> click here >>>>>

LAFAYETTE A. ZEUS BLACK KIT INCLUDES ANTENNA SUPPORT SIRTEL MIRRORS S9 + KF 110 + CONNECTOR FOR STATION PL 259.

27 Mhz CB mobile antennas.
- Conical rod-stainless steel 17 / 7 PH.
- 90 º labeled System.
- Base TURBO + 4 mts. RG58.
- TURBO 3000 7 / 8 wave.
- Impedance 50 Ohm.
- Polarization vertical.
- VSWR <1.2:1.
- Pot. max. 200 W.
- 1690 mm lengths.
- Weights Gr 95%

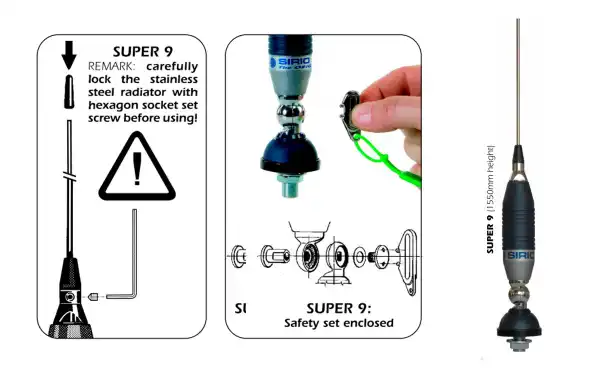

S9 SIRTEL SIRTEL PLUS ANTENNA CB 27 Mhz. with ball + base + cable

Made by SIRTEL (a prestigious Italian manufacturer) this antenna is synonymous with high quality and performance. This antenna is ideal for sheet metal assemblies and allows the joint making the perfect angle.

Length: 150 cm
Power max.: 200 W pep
Type: 5 / 8


Kit Contents
S9 SIRTEL PLUS

Joint

S9 SIRTEL PLUS

Assembly

S9 SIRTEL PLUS



FEATURES

SPECIFICATIONS
General
Transmitter: Crystal controlled PLL synthesizer
Receiver: Double conversion, superheterodyne system
Voltage operation: 13.8 V DC
Temperature: -10 ° C ~ +50 ° C
Channel step: 10 kHz
Dimension: 140 (D) x 145 (W) x 40 (A) mm
Weight: 900 gr. w / o accessories
Transmitter
Output power: 4W FM / AM
Frequency range: 26 965 ~ 27.405 MHz 40Ch
Frequency tolerance: ± 600 Hz
Modulation sens: 3mV (1.25 kHz input)
Capablity Modulation: AM: 90%
FM: 2 kHz
Receiver
Frequency range: Ch 40 ~ 27 405 26 965 Mhz
Sensitivity: AM: 0.5 microvolts (s / n 10dB)
FM: 0.3 microvolts (12dB SINAD)
Squelch: 0.5 microvolts
Auto squelch: 0.3 microvolts
S / N ratio: 40 dB
Distortion: 3%
Max power: 4 watt
S / meter (S-9): 1000 microvolts
Test condition
Power source: 13.8 Volt DC
Antenna impedance: 50 Ohm non-inductive
Audio impedance: 8 Ohm

Accessories
