INTEK H-520 PLUS

INTEK H-520 PLUS AM-FM 4Watts MULTISTANDARD CB 27 MHz HANDHELD
Joins the INTEK last generation range of multi CB radios, with a hardware and software new design, specially designed for users who want a citizen band multifunctional equipment compatible as portable, mobile or fixed.

With the included accessory CAR-520, we can transform the H-520P (laptop) in a 4W of power base or car station in a few seconds.

IMPORTANT ! The radio is factory pre-programmed on the CE frequency band (CEPT 40CH FM 4W). This product is subject to national restrictions. Before operating this radio, please check that the frequency band has been correctly programmed according to the country where radio is used.



Adjustable RF output power (3 levels)
Multi-Standard, 8 bands.
Multiple functions.
Powered with 6 x Alkaline or Ni-MH batteries.

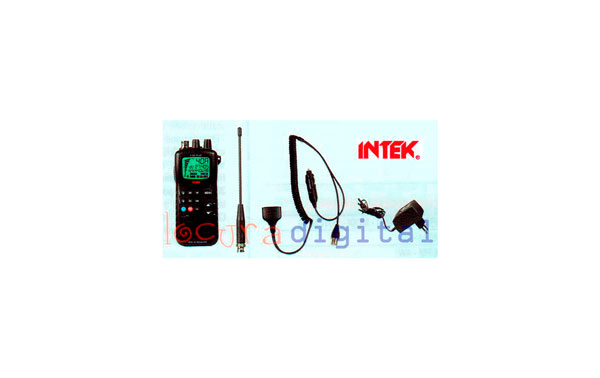

Battery charger and mobile car adaptor.



INTEK H-520 PLUS AM-FM 4Watts MULTISTANDARD CB 27 MHz HANDHELD + CHARGER + ACCESSORIES




INTEK H-520 PLUS AM-FM 4Watts MULTISTANDARD CB 27 MHz HANDHELD + CHARGER + ACCESSORIES



INTEK H-520 PLUS AM-FM 4Watts MULTISTANDARD CB 27 MHz HANDHELD + CHARGER + ACCESSORIES



Features

GENERAL
Channels     Refer to programmed band
Modes (AM, FM)     Refer to programmed band
Operating Temp.     -10°/+55°C
DC Input Voltage     7.2Vdc ±15%
Size     68(L) x 146(H) x 38(D) mm
Weight     218 gr.

TRANSMITTER
System     CPU Controlled PLL
Synthesizer
Max Output Power     4W at 9Vdc
Modulation     AM / FM
Output Impedanced     50 Ohm unbalanced
Current Drain     1500 mA (at no modulation)

RECEIVER
System     Double Conversion Super Heterodyne
IF     1° 10.695 MHz / 2° 455 KHz
Sensitivity     0.5µV for 20dB SINAD (FM)
0.7µV for 20dB SINAD (AM)
Audio Output Power     0.3W at 8 Ohm
Audio Distorsion     <8% at 1 KHz


Frequency Band/Mode Program
E1     Italy/Spain 40CH AM/FM 4W
I2     Italy 36CH AM/FM 4W
DE     Germany 80CH FM 4W / 12CH AM 1W
D2     Germany 40CH FM 4W / 12CH AM 1W
EU     Europe/France 40CH FM 4W / 40CH AM 1W
CE     CEPT 40CH FM 4W (DEFAULT)
UK     England 40CH + CEPT 40CH FM 4W
PL     Poland 40CH AM/FM 4W (-5 KHz)

IMPORTANT ! The radio is factory pre-programmed on the CE frequency band (CEPT 40CH FM 4W). This product is subject to national restrictions. Before operating this radio, please check that the frequency band has been correctly programmed according to the country where radio is used.
