! OFERTON WALKIE SUMERGIBLE !

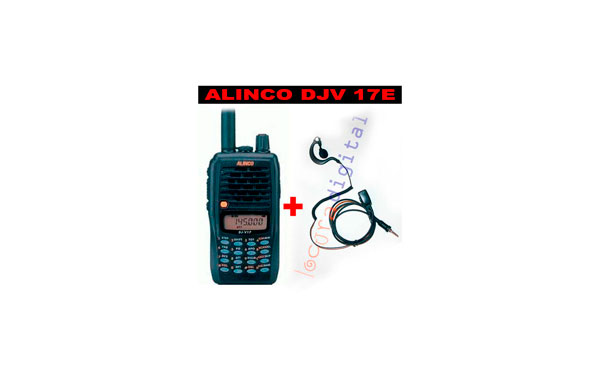

ALINCO VHF Portatil FM 5W DJ-V17E +! PINGANILLO GIFT PIN29 VX7!

! SPECIAL WALKIE PARA APPLICATIONS OF MOUNTAIN, SNOW, SENDERISMO, ETC!

PIN29 VX7
AURICULAR MICRO WITH PTT FOR YAESU VX7/VX 6/VX 120/VX 170 ALINCO DJ V17
! SUPERIOR QUALITY!

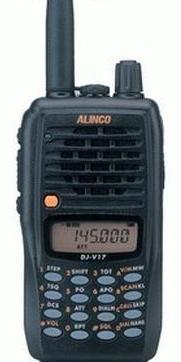

Alinco DJ-V17E is a portatil of VHF with 5 W. of power, robust and resistant to the portable agua.Transceptor of the band of VHF of a reduced and ergonomic size, it has display alphanumeric and he is submersible in the water (30 minutes 1 meter).

Provided accessories:

Battery Ni-Mh EBP-65 (7,2V/700 mAh).

Slow shipper of batteries EDC-147 (230 V.ac)

Antenna

Clamp for the belt

Strap of hand

Manual in Spanish and ingles

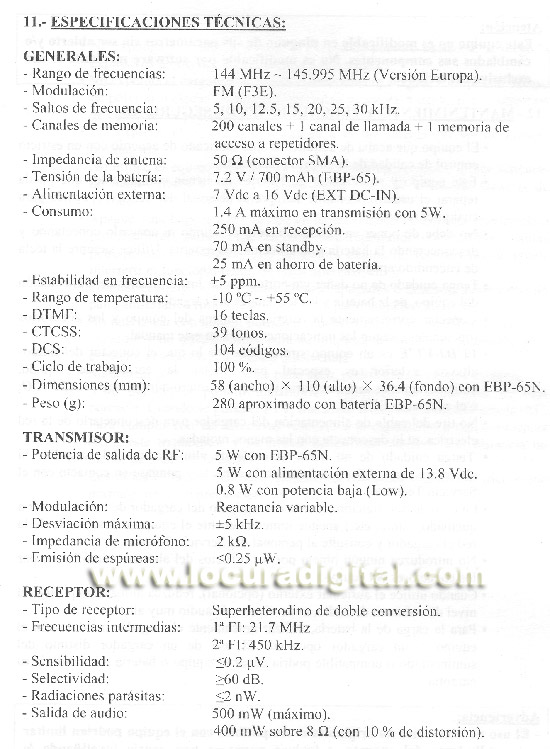

* Frequencia: TX-144-146/RX-130 - 173.995MHz
* Power output: 5W with EBP-65N
* Modulation: 16k0FE' (FM)
* Receiver Mode: FM
* Way recepcion:FM
* Voltage:DC 7,0 - 16.0V (EXT DC-IN)
* Consumption: TX 1, max/RX approx. 250mA
* Freq.stabilizada: +/- 5ppm
* Deviation: +/- 5KHz
* Espurreas: Less than -60dB
* Receptor:Double Conv.Superheterodyne
* IF:1st 50.85MHz, 2nd 450KHz
* Jump of Frecuencias:5,10, 12,5, 15, 20, 25, 30kHz
* Subtonos CTCSS
* Sensitivity (12dB SINAD): VHF/UHF hambands-15dBu or less (0.17uV or less)
* Selectivity: +/- 12KHz or dwells (-6dB), +/- 35KHz or less (-60dB)
* Exit of audio: 90mW
* Dimensions: 58 xs 110 xs 36.4mm
* Weight: 280gr



COMPATIBLE ACCESSORIES

EBP-63: Ion-Li battery 7A V/II00 mAh.
EBP-64: Ion-Li battery 7A V/1600 mAh.
EBP-65: Ni-MH battery 7A V/700 mAh.
EBP-66: Ni-MH battery 7A V/2000 mAh.
EDC-36: Cable adapter for the lighter of vehicles with inhibídor filter of noises.
EDC-37: Cable for external feeding Dc.
EDC-43: Lighting cable of vehicles for the load of Ni¬MH batteries.
EDC-143T/E/UK: Compartment-shipper of tablecloth batteries (T: 120 V; E: 230 V; UK: 230 V with English pin).
EDC-143R: Multiple shipper of batteries.
EDC-14Â/E/UK: Fast shipper of batteries (A:120 V; E/UK: 230 V).
EDC-144R: Multiple shipper of batteries.
EDC-146: Shipper of wall (120 V).
EDC-147: Shipper of wall (230 V).
EDC-148: Shipper of wall (230 V) with English pin.
EDH-34: Portapilas.
EDS-10: Cable for external micro-loudspeaker.
EDS-11: Clonado cable for.
EME-6: Earpiece.
EME-12: Micro-helmet with VOX control.
EME-13: Earpiece and microphone withVOX control.
EME-15: Microphone of clamp with VOX control.
EME-20: Mícroauricular.
EMS-47: Micro-loudspeaker with control of audio.
EMS-59: Micro-loudspeaker.
ESC-41: Cover.
