KM-506 P4 radio microphone 4-pin

KM506P4 63954
Discontinued product.
  • KM506P4
  • KM-506 P4 radio microphone 4-pin Microphone ergonomic, lightweight and rugged, ideal for use...

    More info


  • Not Available

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..

Equivalent Products

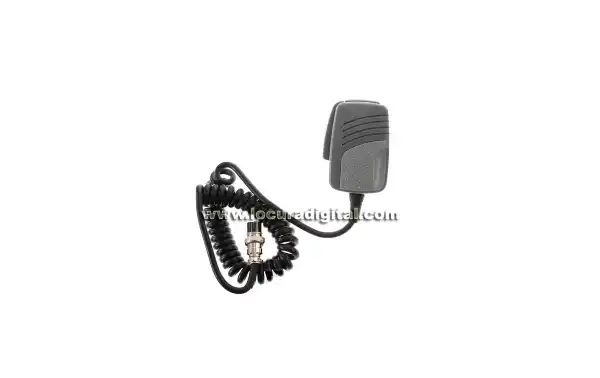

KM-506 P4 radio microphone 4-pin

Microphone ergonomic, lightweight and rugged, ideal for use in trucks, vans, cars.


Front KM-506 P4

KM-506 P6 6 PINS

Rear View KM-506 P4

KM-506 P6 6 PINS

Measures

KM-506 P6 6 PINS

4-pin connector



Impedance: 500 Ohm
Frequency: 300 Hz - 8 KHz
Sensitivity: -72 + / - 3 dB (at 1kHz)
Omnidirectional

PIN's relationship

1. audio / AF
2. GND / GND
3. RX
4. TX
