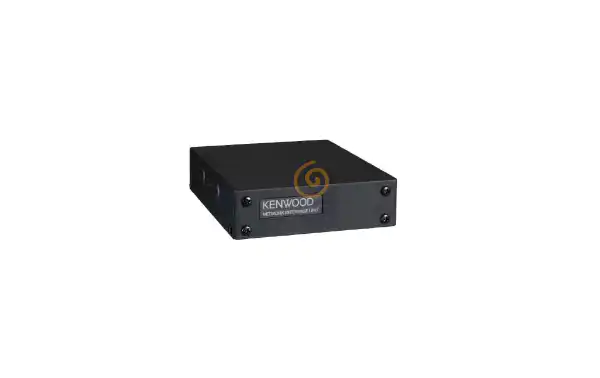

KENWOOD KTI-3 Unidad Interfase de red para NEXEDGE NXR-710/810 65849
Available product.
  • KTI3
  • Kenwood KTI-3 network interface unit NEXEDGE NXR-710/810 Kenwood has a new accessory for the units...

    More info



We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..


Kenwood KTI-3 network interface unit NEXEDGE NXR-710/810
Kenwood has a new accessory for the units Repeater / Base NEXEDGE.
The KTI-3 adds the ability to network the computers IP Conventional NXR-710 and 810.
It is ideal for users who use a conventional IP network.

Kenwood KTI-3 network interface unit NEXEDGE NXR-710/810


FEATURES

Conventional IP network to function in the system NXR-710/810 NEXEDGE

Size suitable for installation in the internal space NXR-710/810

Conventional IP network protocol compatible with NXR-700/800. The interconnection is available

Serial Port 'N-SYNC "in connection with NXR-710/810

Ethernet Supports 10BASE-T type and 100BASE-TX

Two LED indicators (POWER, STATE)

Update firmware and configuration with remote access via IP network.

Function (future)

DC power cable (1m)

Connect to DC power NXR-710/810 (+ B / GND)

Connectors

N-Sync Connector NXR-710/810 (4P4C modular)

Ethernet LAN connector (RJ-45)

AUX (15-pin Molex)

ISO 9001 Quality Management for Manufacturing

Environmental liability design Green Kenwood

3. The KTI-3 can work with NXR-710/810 from a number of series. If

NXR-710/810 is before the specified, requierere dating with the new

firmware update for the new conventional IP network.

For more information, consult your Kenwood.

4. To use this function, it requires the latest programming software KPG-129d. To

more information, consult your Kenwood.

3. ACCESSORIES

Instruction Manual: English, Spanish, German, French, Dutch,

Italian, Turkish, Greek, Russian

Cushion: Long 1pc, Small 4pcs

Sync Cable (1m): 1pc

4. SPECIFICATIONS

change without notice.

KTI-3

Operating voltage 10.8 to 15.6V

Max power consumption. 200mA

Working Temperature Range -30 ° C to +60 ° C

Dimensions (HxWxD)

(Excluding projections)

106 x 32 x 125 mm

Weight 0.49kg

FCC

Code of Federal Regulations Title

47 Part 15 Subpart B

IC ICES-003

EMC Directive

Directive 2004/108/EC

EN61000-6-1, EN61000-6-3

Standards

Applicable

Security

Directive 2006/95/EC

Applicable standards: IEC EN 60950-1,

IEC EN 60065





FEATURES

Kenwood has a new accessory for the units Repeater / Base NEXEDGE.

The KTI-3 adds the ability to network the computers IP Conventional NXR-710 and 810.

These new products are included in the green initiative "green" Kenwood

relating to environmental responsibility in the design and production of the product.

Conventional IP network to function in the system NXR-710/810 NEXEDGE

Fit in the space available within the NXR-710/810

Compatible with conventional network protocol IP NXR-700/800.

Ethernet Supports 10BASE-T type and 100BASE-TX

Notes:

1. The KTI-3 can work with NXR-710/810 from a number of series. If the NXR-710/810 is before specified, requierere dating with the new

firmware update for the new conventional IP network. For more information, consult your Kenwood.

2. To use this function, it requires the latest programming software KPG-129d. For more information, consult your Kenwood.

Improvements

Easy Migration from Analog to Digital NXR-710/810.

The KTI-3 can be fed directly from NXR-710/810. No need for any additional power supply.
