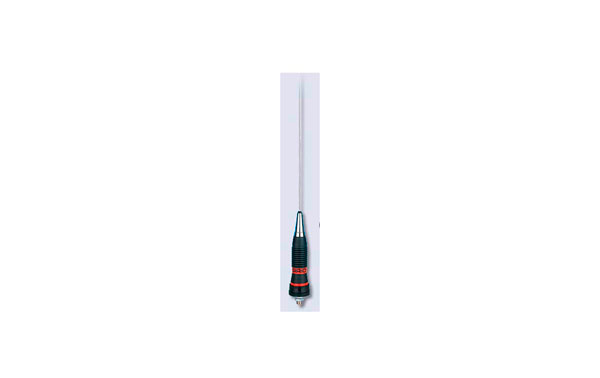

SIRIO AS 100N. ANTENA MOVIL BANDA CB 27 MHZ

 350
Producto disponible.
  • AS100N
  • Antena movil Sirio AS 100 + base rosca PL + cable 4mts, Longitud 102cm

    Más info

  • 23,50€
  • IVA no incluido

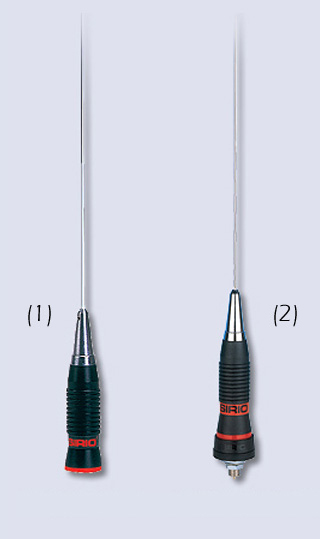

Antena movil Sirio  AS 100 +  base +  cable  4mts, Longitud 102cm




CB & 10m Mobile antennas
Tunable from 27 to 28.5 MHz
Protection from static discharges DC-Ground
17/7 PH tapered stainless steel whip
Suitable for magnetic mount


P/N 2209005.23    AS 100 N

Electrical Data
Type: CB base loaded
Frequency range: 27-28.5 MHz
Impedance: 50%u03A9 unbalanced
Radiation (H-plane): 360° omnidirectional
Polarization: vertical
Bandwidth at S.W.R. 2:1:
 AS 100 PL/N: 580 KHz

S.W.R. at res. freq.: %u2264 1.2:1
Max. power:
 AS 100 PL/N: 100 Watts (CW) continuous, 300 Watts (CW) short time

Mounting:
  AS 100, 145, 170 PL: UHF-male (PL 259)
Cable lenght / Type:
 AS 100, 145, 170 N: 4 m / RG 58


Mechanical Data
Materials: Brass, Copper, Nylon, Stainless Steel
Height (approx.):
 AS 100 PL/N: 1020 mm


Weight (approx.):
 AS 100 PL: 180 gr
