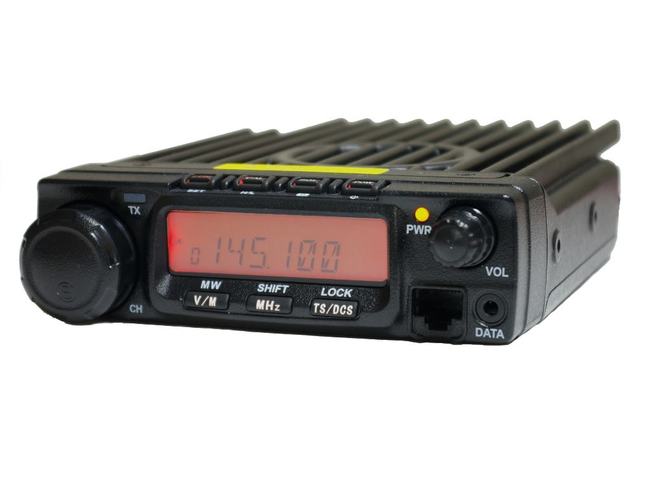

ANYTONE AT-588

ANYTONE AT-588 MOBILE RADIO VHF 144 MHZ POWER 60 WATTS.
It's a robust transceiver designed based on the modern equipment of the professional range.
It's built to be the perfect travelling companion.
Despite its size, the AT-588 provides a high RF power of 60 watts.



ANYTONE AT-588 MOBILE RADIO VHF 144 MHZ POWER 60 WATTS



Kit contents:
  • AT-588 Radio
  • Microphone(with DTMF keypad)
  • DC power cable with fuse holder
  • Mobile installing bracket



ANYTONE AT-588 MOBILE RADIO VHF 144 MHZ POWER 60 WATTS

ANYTONE AT-588 MOBILE RADIO VHF 144 MHZ POWER 60 WATTS

ANYTONE AT-588 MOBILE RADIO VHF 144 MHZ POWER 60 WATTS



Features

Output Power: 60W/25W/10W
100 programmable alpha-numeric memory channels+ Call channel,
CTCSS/DCS/5-Tone decodes and encodes
Four different single-tone pulse frequencies
CTCSS/DCS scan
Compander to reduce noise
Theft alarm
ANI function(DTMF/ANI,5-Tone/ANI) PTT ID.
QHM-03 multifunctional microphone with DTMF
Scramble function(option)


TECHNICAL SPECIFICATION:

Frequency Range: VHF: RX 136-174Mhz TX 144/145Mhz
Channel: 200 Channels
Channel Spacing: 25K (Wide Band) 20K(Middle Band) 12.5K
Phase-locked Step:5/6.25/10/12.5/15/20/25/30/50kHz
Operating Voltage: 13.8V DC 15%
Squelch: Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability: 2.5ppm
Temperature Range: 20~+60
Dimension (WxHxD): 145 (W) x 47 (H) x 190 (L)mm
Weight: Approx 1.2Kg
Sensitivity (12dB Sinad): Wide band 0.25V Narrow band: 0.35V
Adjacent Channel Selectivity: 70dB 60dB
Intermodulation: 65dB 60dB
Spurious Rejection: 70dB 70dB
Audio Response: +1~-3dB(0.3~3kHz) +1~-3dB(0.3~2.55kHz)
Hum & Noise: 45dB 40dB
Audio distortion: 5%
Audio power output: 2W@10%
