YAESU VX-3 R double KITA Walkie VHF / UHF band PINGANILLO + GIFT

YAESU VX 3R 61878
  • YAESU VX 3R 61878
  • YAESU VX 3R 61878
  • YAESU VX 3R 61878
  • YAESU VX 3R 61878
  • YAESU VX 3R 61878
  • YAESU VX 3R 61878
  • YAESU VX 3R 61878
  • YAESU VX 3R 61878
Available product.
  • VX3EKITA

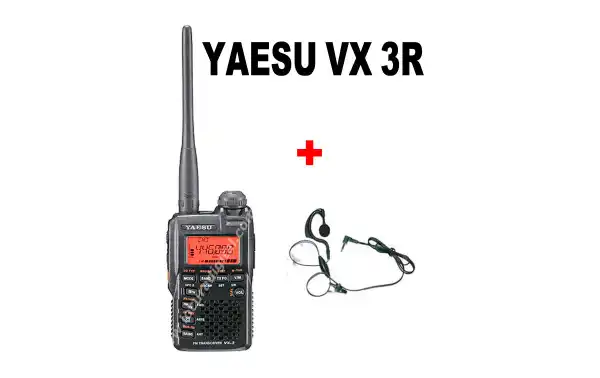

  • YAESU VX 3 R KIT A + GIFT Walkie PINGANILLO dual VHF / UHF band

    More info

  • 165,00€
  • VAT not included

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..


! 1 Pinganillo GIFT!


YAESU VX 3

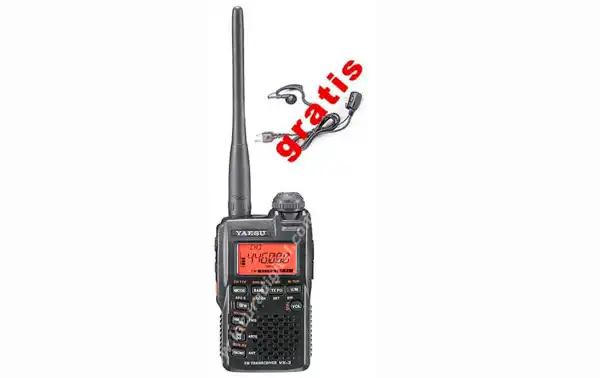

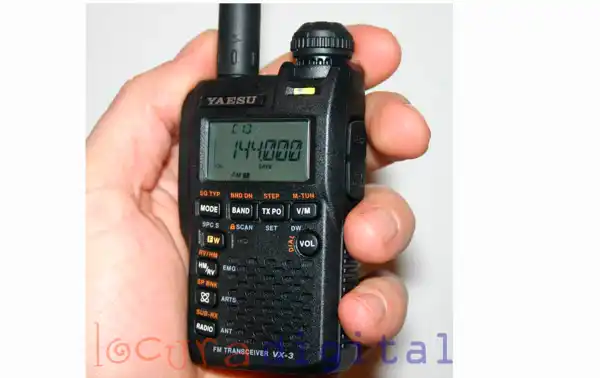

ref: VX 3 Walkie dual band VHF / UHF YAESU VX-3 R

The third generation portable VX-3E is equipped with features more convenient and valuable. Chance of AA battery operation. Enhanced recepeci?M stereo. Internal ferrite antenna for AM band.

Yaesu again leads the world of portable compact transcepetores. The high capacity battery lithium ion provided is compatible with VX2E

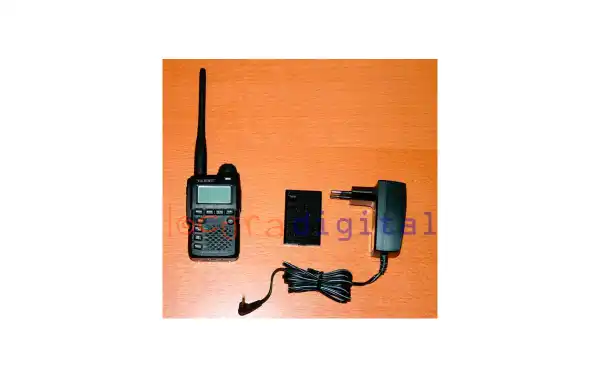

Includes:

- 1 Walkie
- 1 Pinganillo GIFT
-

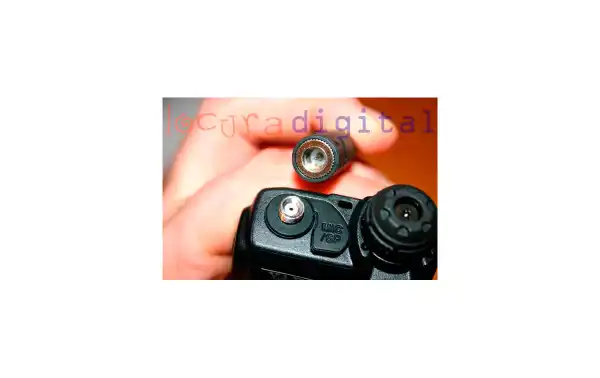

1 Antenna
-

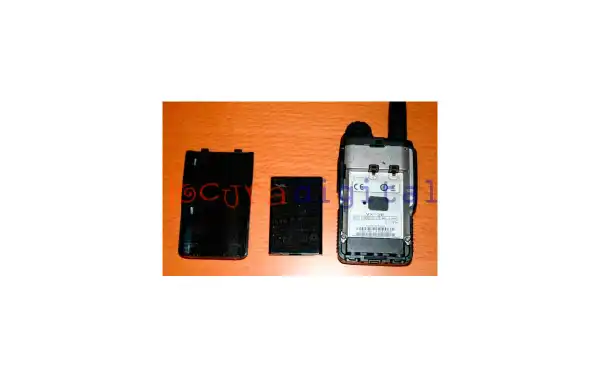

1 Battery
-
1 Charger

-
"0Spanish and English Manual


see Spanish manual in PDF>>>> click here>>>

































ACCESSORIES NOT INCLUDED

Microphone MH-34 A4B speaker
VC-25 Headset with VOX
MH-37 A4B Micro headset with PTT
E-DC-21 Power Supply DC / DC for mobile use
CT-44 Microphone Adapter
CSC-92 Carrying Case

FEATURES

-
Extraordinary improved reception

-
WIRES key for direct access to the Internet gateway

-
Lithium Ion Battery High Capacity (1000 mAh)> 1300 channels memory 6-character alphanumeric

-
Estroboc?o multicolor LED, with built-in "emergency beacon"

-
Up to 3 W RF power with external power EDC-21 (optional power cable)

-

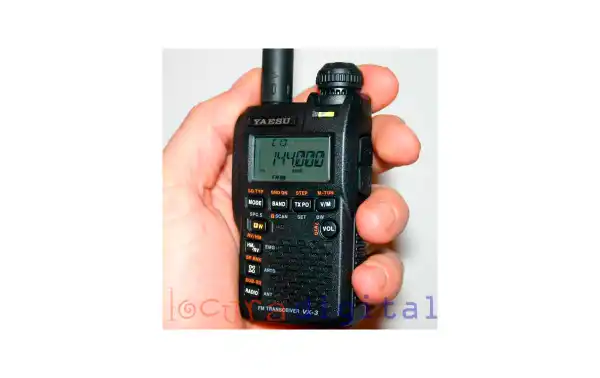

Ultra-compact 47 x 81 x 23 mm

-

Lightweight only 130 g.

-

The optional battery lets you work with AA batteries

-

Special Memory Banks

-

High-capacity memory, 1286 channels. 24 banks of 100 channels

-

Extended Coverage Receiver (band telephony disabled)

-

Internal ferrite antenna for AM band

-

Separate stereo headphone jack or headset

-

Dual AF (SubRX): Listen to your favorite FM or AM station, while monitoring the amateur band.

-

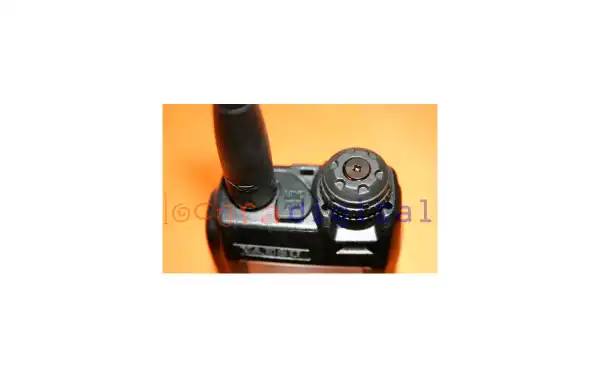

New function mechanical dial lock

-

Features learning and training CW

-

Role of emergency automatic identification (EAI)

-

Role of short text messages

Frequency
Ranges
:
RX
0.5-1.8 MHz (AM Broadcast)

( USA Version)
1.8-30 MHz
(SW Band)

1930-1976 MHz (50 MHz HAM)

76-108 MHz (FM)

108-137 MHz (Air Band)

137-174 MHz (144 MHz HAM)

174-222 MHz (VHF TV)

222-420 MHz (ACT1)

420-470 MHz (430 MHz HAM)

470-800 (729) MHz (UHF TV)

(757-774) MHz (UHF TV)

800-999 MHz (GEN2; USA Cellular Blocked)

TX
144-146 (148) MHz

430-440 (450) MHz

Channel Steps
:
5/9/8.33/10/12.5/15/20/25/50/100 kHz

Frequency Stability
:
± 5 ppm (% u201310 ° C to +60 ° C)

Repeater Shift
:
± 600 kHz (144 MHz)

± 1.6/5.0/7.6 MHz (430 MHz)

Emission Type
:
F2D, F3E

Antenna Impedance
:
50
W

Supply Voltage
:
Rated:
3.7 V DC,
Negative Ground

Operating:
3.5 ~ 7 V,
Negative Ground (
EXT DC
Jack)

5.0 ~ 7 V,
Negative Ground (
EXT DC
Jack with Charging)

Current Consumption
:
120 mA (Receive)

60 mA (Standby, Saver Off)

30 mA (Standby, Saver On, Save Ratio 1:2)

50 mA (Radio Band Receive)

100 uA (Auto Power Off)

1.3 (1.5 W Tx, 144 MHz) 3.7 V DC

1.6"0(3 W Tx, 144 MHz) 6 V DC

1.2"0(1 W Tx 430 MHz) 3.7 V DC

1.8"0(2 W Tx, 430 MHz) 6 V DC

Operating Temperature
:
% U201320 ° C to +60 ° C

Case Size
(W x H x"9:
1.9% u201D% u201D x 3.2 x 0.9% u201D (47 x 81 x 23 mm) (W / O knob & antenna)

Weight
:
4.6 oz (130 g) With FNB-82LI & antenna



Transmitter

RF Power Output
:
1.5 W (@ 4.5 V AA x 3 or 3.7 V FNB-82LI
144 MHz)

3 W (@ 6 V or EXT DC
144 MHz)

1 W (@ 4.5 V AA x 3 or 3.7 V FNB-82LI
430 MHz)

2 W (@ 6 V or EXT DC
430 MHz)

Low 0.1 W (@ 4.5 V AA x 3 or 3.7 V FNB-82LI)

Low 0.3 W (@ 6 V or EXT DC)

Modulation Type
:
Variable Reactance F2D, F3E

Maximum Deviation
:
± 5 kHz (F2D, F3E)

Spurious Emission
:
At least 60 dB Below (HIGH)

At least 50 dB Below (LOW or Less Than 1 W)

Microphone Impedance
:
2 k
W
