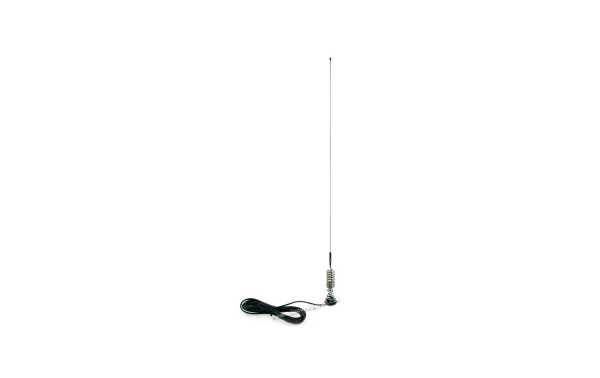

SIRTEL SLA2C VHF Antenna 144-174 Mhz. spring and moth. 142 cm.

SLA2C SIRTEL Antena VHF 144-174 Mhz. con muelle y palomilla. 142,5 cms. 65214
Discontinued product.
  • SLA2C
  • SIRTEL SLA2C VHF Antenna 144-174 Mhz. spring and moth. 142 cm. Type - Type - Type 5 / 8 ...

    More info


We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..

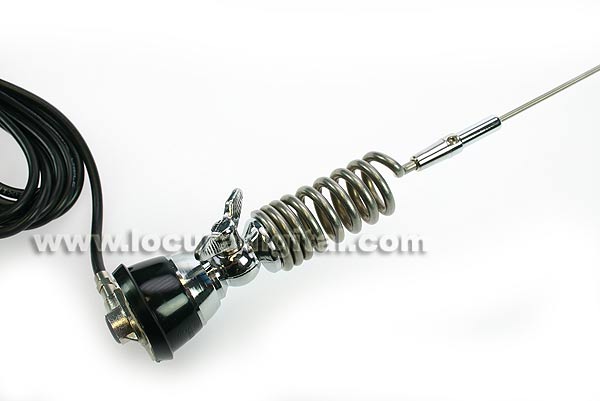

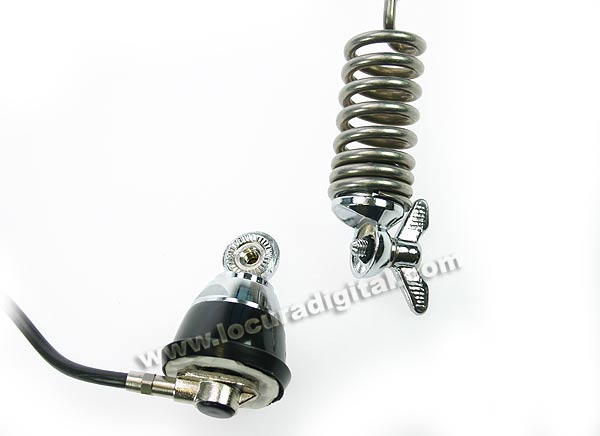

SIRTEL SLA2C


GAMMA SIRTEL 2R













SIRTEL SLA2C

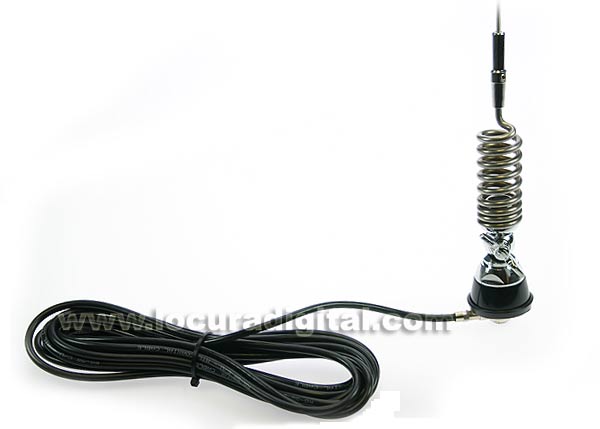

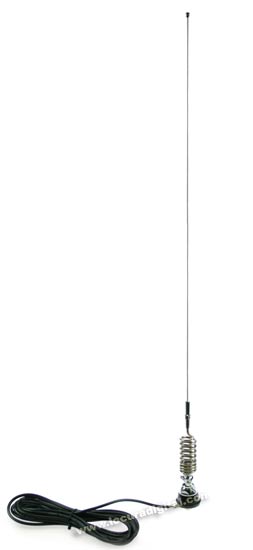

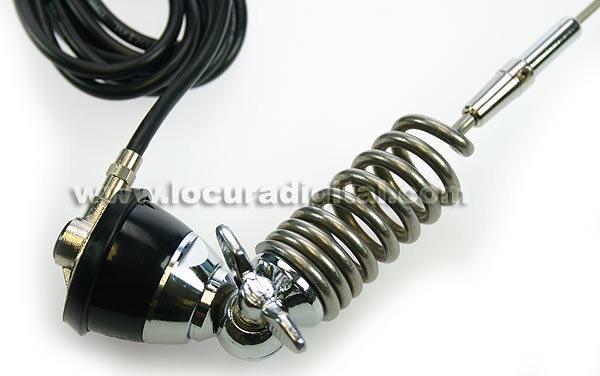

VHF Antenna 144-174 Mhz. spring and moth. 142 cm.
Type - Type - Type 5 / 8
Frequency - Frequency - Fr?ence 136-174 MHz
Power - Power - Puissance 250 W
Gain - Gain (dB) - Gai 3dB (5,15 dBi)
Polarization - Polarization - Polarisation Vertical
Impedance - Impedance - Impedance 50 Ohm
Type of Adjustment - Adjust type - Type d'ajustage Adjustable / Adjustable
ROE - SWR 1.2:1
Mounting - Mounting (mm) Hole / Hole 21 mm
Length - lenght (mm) 1425 mm
Gross weight - Gross weight (gr.) 532 gr. (1pcs)

This antenna is ready to make a hole in the plate of the vehicle there is the possibility of an accessory not included to avoid having to make hole in the plate of the vehicle to see support DJD1 recommended antennas>>

Excludes PL 259 connector required to connect to the station.
PL259 connector view more information>>>>


SIRTEL SLA2CSIRTEL SLA2C

SIRTEL SLA2C

SIRTEL SLA2C

SIRTEL SLA2C

SIRTEL SLA2C

SIRTEL SLA2C

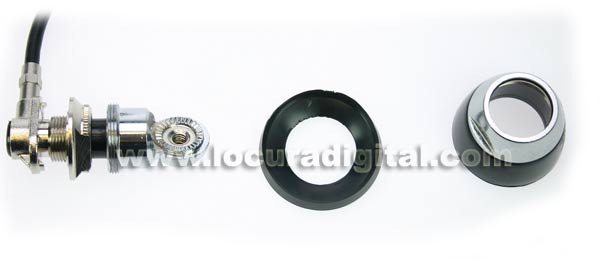

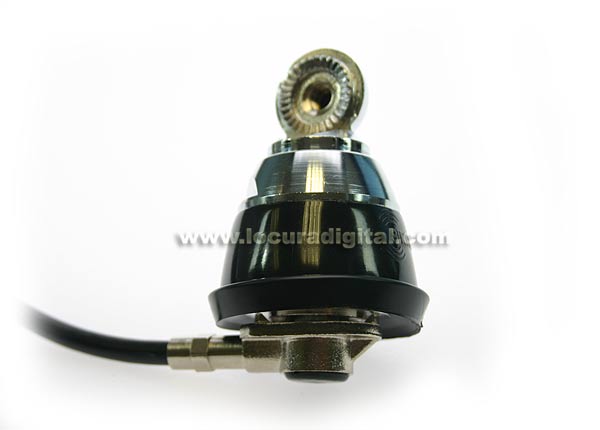

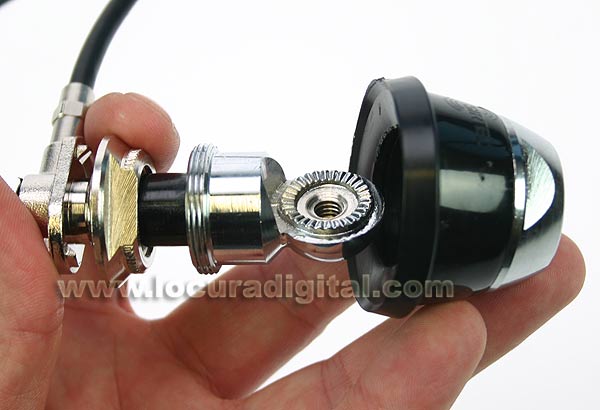

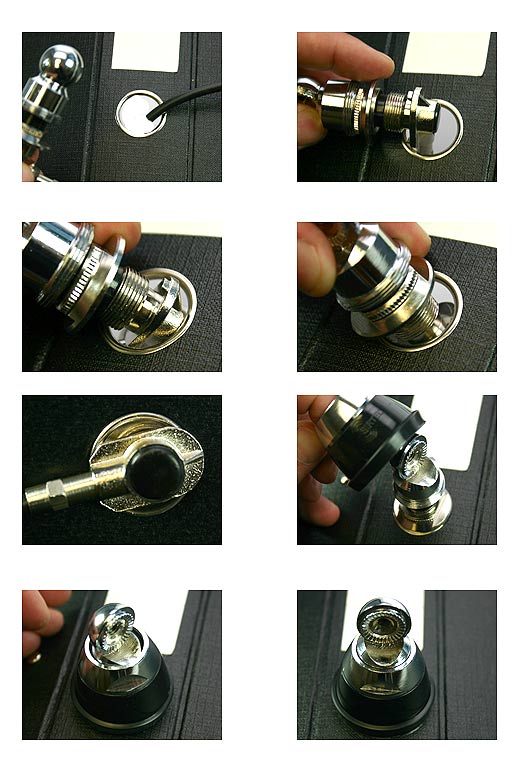

This antenna system is valid to put in brackets and specially designed to make holes in sheet from above without removing the cover of the vehicle.

SIRTEL SLA2C

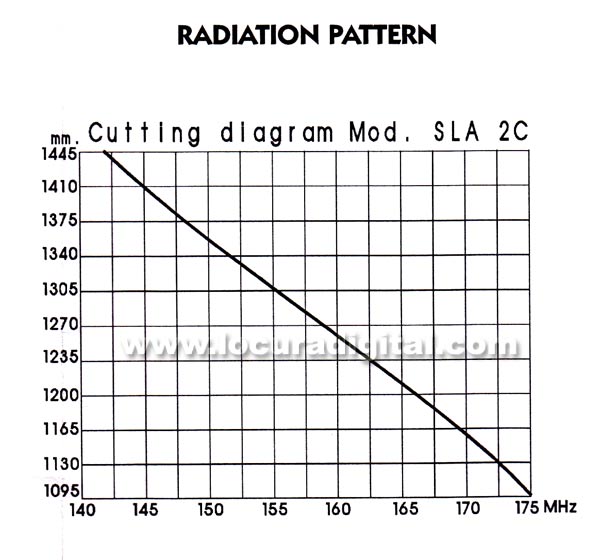

Cutting board rod

SIRTEL SLA2C


FEATURES

Antenna VHF 144 -174 MHz. spring and moth. 142 cm.
Type - Type - Type 5 / 8
Frequency - Frequency - Fr?ence 136-174 MHz
Power - Power - Puissance 250 W
Gain - Gain (dB) - Gai 3dB (5,15 dBi)
Polarization - Polarization - Polarisation Vertical
Impedance - Impedance - Impedance 50 Ohm
Type of Adjustment - Adjust type - Type d'ajustage Adjustable / Adjustable
ROE - SWR 1.2:1
Mounting - Mounting (mm) Hole / Hole 21 mm
Length - lenght (mm) 1425 mm
Gross weight - Gross weight (gr.) 532 gr. (1pcs)
