Mobile antenna DIAMOND CR-8900

cr8900 60781
Available product.
  • CR8900
  • 8900 mobile antenna DIAMOND CR 10/6m/2m/70cm - Power: 150W SSB - Connector: PL - Gain: 2.15dBi 144MHz,...

    More info

  • 88,00€
  • VAT not included

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..

DESCRIPTION OF THE PRODUCT

Ref: DX_UHV_4 Mobile 4 antennaof DX UHV bands 1/4 (28/50MHz), 3/8 (144MHz), 3/4 (430MHz).

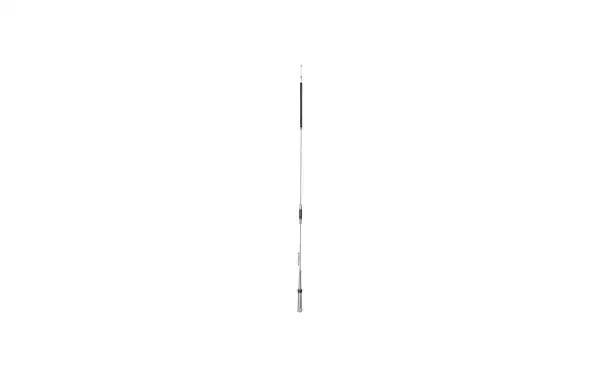

Mobile antenna CR8900

There are is available now to complement several bands of HF/VHF/UHF that have been introduced recently. The mobile antenna of CR8900 to designed to offer minimal resistance to the possible wind.

The height is only 1260mm. The bases there are to standard Pl-259 connector and it mounts easily.

CHARACTERISTIC:

Power: 150W (SSB)

- Connector: PL

- Gain: 2.15dBi (144MHz), 5.5dBi (430MHz)

- Impedance: 50O

- R.O.E. S.W.R.: 1.5

- Weight: 490gr

- Length wave: 1/4 (29/50MHz), 1/2 (144MHz), 5/8 (430MHz)

- Length: 1.260 mm.


SPECIAL SUPPLY!

Connector PL



CHARACTERISTICS

- Power: 150W SSB

- Connector: PL

- Gain: 2.15dBi 144MHz, 5.5dBi 430MHz

- Impedance: 50O

- R.O.E. S.W.R.: 1.5

- Weight: 490gr

- Length: 1/4 29/50MHz, 1/2 144MHz, 5/8 430MHz

- Length: 1.260 mm.
