LUTHOR TL-630-GAME HUNTING Walkie VHF136 SPECIAL CHANNELS 250 -174 MHz

LUTHOR TL-630-GAME HUNTING Walkie VHF136 SPECIAL CHANNELS 250 -174 MHz

TL630CAZA

Referencia: TL630CAZA (LUTHOR)

stock

114,95 incl. VAT

95,00€ w/o VAT

BUY NOW

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

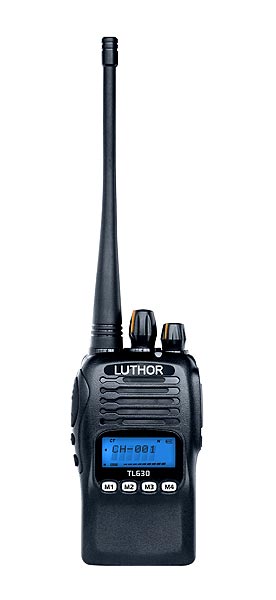

LUTHOR TL 630 HUNT

LUTHOR TL 630CAZA Walkie VHF 250 CHANNELS SPECIAL HUNTING 136,174 MHz. IP 67 Protection

PROFESSIONAL VHF band Walkie monkey 136,174 Mhz.
Totally protected against dust and water resistant IP 67
Includes fast charger casserole Lithium Battery VHF Antenna clip pinganillo gift.
PROFESSIONAL VHF band Walkie monkey 136,174 Mhz.

Luthor is extremely easy to handle and
operate. This compact portable transceiver is
extremely reliable. With these balanced performance is
presented as the perfect choice for your
business, especially in activities
inventory control and operations
industrial services.

!! It is necessary to attach the client to enter frequencies in Walkie !!



LUTHOR TL 630 Walkie 250 CANALES PROFESIONAL VHF136 174 mhZ. Proteccion IP 67 Disponibilidad Marzo 2013

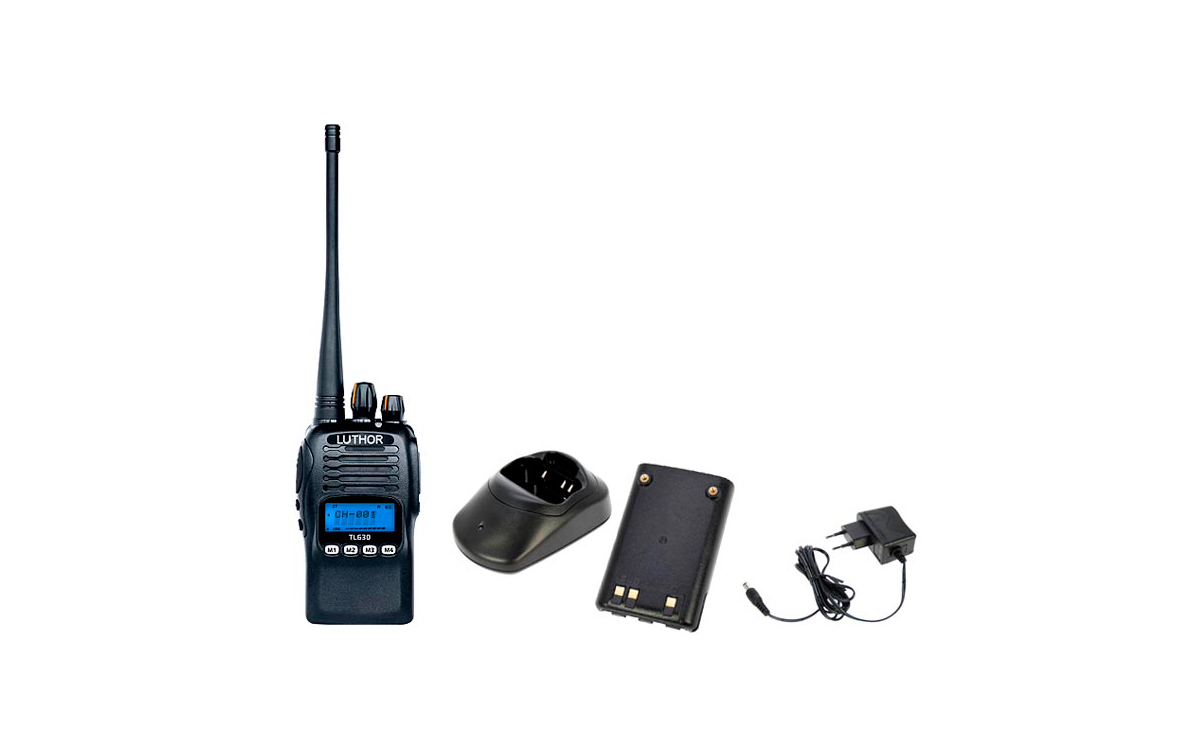

Kit Contents Luthor TL 630 HUNT
  • 1 walkie Luthor TL 630 HUNT

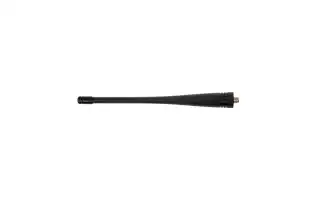

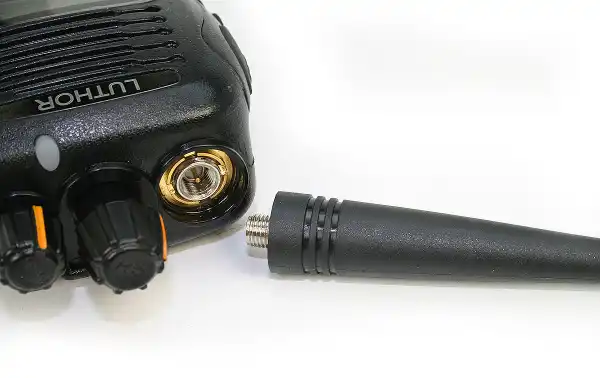

  • 1 Antenna VHF

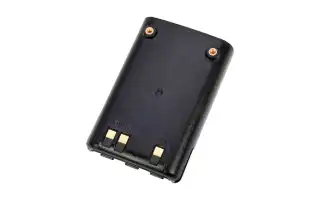

  • 1 Lithium Battery 1500 mAh
  • 1 clip belt
  • Intelligent 1 Charger
  • 1 Pinganillo Pin19K




LUTHOR TL 630 Walkie 250 CANALES PROFESIONAL VHF136 174 mhZ. Proteccion IP 67 Disponibilidad Marzo 2013



LUTHOR TL 632 Walkie 250 CANALES PROFESIONAL UHF 410 470 mhZ. Proteccion IP 67 Disponibilidad Marzo 2013



Features

This compact portable transceiver, easy to use,  Has 250 channels, allowing assign each  One of them a separate QT and DQT tone for  Protect unwanted receptions.


Robust and Reliable


Luthor is designed to survive the bumps, drops and harsh environments.


OTHER FEATURES


Output Power 5W (VHF)


Programming and adjustment for PC  Channeling Wide / Narrow  Battery Saver  Busy Channel Lock,  Timer Transmission  Low Battery Alarm




GENERAL

Frequency range 136,174 MHz
Number of Channels 250 channels
Channel spacing
Width / Width 4K / Narrow 25 kHz / 20 kHz / 12.5 kHz
Operating Voltage 7.5 V DC ± 20%

Operating Temperature Range 20 ° C ~ 60 ° C
Frequency Stability 2.5 ppm to 5 ppm
Antenna Impedance 50

Dispersion Frequency 30 MHz Channel
Dimensions (W x H x D), not included Projections

RECEIVER

Sensitivity (Width / Width 4K / Narrow)
EIA 12dB SINAD 0.28 V / 0.28 / 0.35 V
EN 20dB SINAD 3 dB V (0.35) / 3 dB V (0.35 V) / 1 dB V (0.45 V)
Selectivity Adjacent channel
Width / Width 4K / Narrow 70 dB / 70 dB / 60 dB
Intermodulation 65 dB
Rejection 70 dB spurious Response
Audio Distortion Less than 5%
Audio output 500mW / 8

TRANSMITTER
Power RF (High / Low) 5 W / 1 W Output
Modulation Limiting ± 5.0 kHz to 25 kHz ± 4.0 kHz to 20 kHz ± 2.5 kHz to 12.5 kHz
36 dBm Spurious Emission

1 GHz, 30 dBm> 1GHz
Modulation Width / Width 4K / Narrow 16K0F3E / 14K0F3E / 11K0F3E
Noise FM (EIA) Width / Width 4K / Narrow 45 dB / 43 dB / 40 dB
Modulation distortion Less than 5%
Microphone impedance 1.8 k






Accessories 1/9
