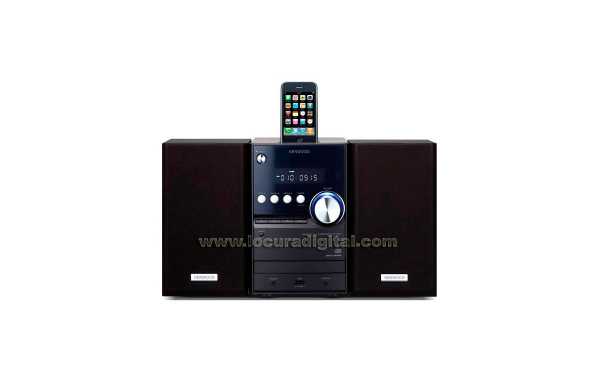

M-515b KENWOOD HI-FI Micro-Based iPod - BLACK COLOR Finish
The M-515 micro system fits easily into a small space, offers a complete range of input sources, including CD, USB and iPod / iPhone dock with built-in. It even has an FM tuner. | Compact size and sleek design | | Powerful 20W x 2 amplifier with subwoofer channel | | Includes dock iPod / iPhone, CD slot, USB port. | | CD-R/RW (MP3/WMA) | | Front AUX input |
Kenwood M-515-B
|
Storage Features | USB-A Terminal (USB Host) | Yes | | Decoding Format USB | MP3/WMA |
General Features | Tone Control | Bass and Treble | | X-Bass / Subwoofer | Yes | | Remote | 29-key Card Type |
Amplifier | Max Output Power Stereo | 2 x 20 Watt |
Tuner | Tuner | Yes, FM | | Radio Data System (RDS) | Yes | | Radio Text | Yes | | Programming (PTY) | Yes | | Number of presets | 30 | | Timer | Alarm (Timer 1, Timer 2, Timer 3) Sleep (10 ~ 180 min.) |
Playable Media | CD DA / CD-R/RW | Yes | | MP3 | Yes | | ID-3 tag | Yes | | WMA | Yes |
CD Features | CD DA / CD-R/RW | Yes | | MP3 | Yes | | WMA | Yes | | Programming play | Yes | | Repeating play | Track, Group, All | | Shuffle | Yes |
Features iPod dock | Connection iPod / iPhone | IPod direct connection (with integrated Dock docking station) with charging function | | Video Output | Video output (composite) to play iPod videos | | Supported versions of iPod | iPod nano (1 st -5 th gen.) iPod mini (1 and 2nd gen.) iPod (4 th gen.) iPod Video (5 th gen.) iPod Photo (4 th gen.) iPod Classic, iPod touch (1 st & 2 nd gen .) iPhone, iPhone3G, iPhone3GS | | Control iPod functions | Play / pause, skip or fast search forward / backward, random, repeat. |
Digital inputs / outputs | USB-A Terminal (USB Host) | Yes |
Analog inputs / outputs
| Composite Video Output | Yes | | Speaker Terminals Push-type | If | | Headphone Jack (3.5 mm) | Yes | | Front Auxiliary Input Jack (3.5mm) | Yes | | FM antenna connector 75 Ohm | Yes |
Speakers | Type | Shelving | | Settings | Wide Banda Bass Reflex type | | Grid. | Fixed |
Audio section | DIN Power Music | 2 x 20 Watt | | Nominal Output | 2 x 20 Watt (1kHz, 10% THD, 6 ohms) | | Graves | Yes | | Treble | Yes | | Line (AUX): Sensitivity / Impedance | 500mV / 47k ohms | | Line (AUX) High: Sensitivity / Impedance | 250mV / 47k ohms |
Tuner Section | Frequency range FM reception | 87.5 ~ 108MHz |
USB Specifications | Format | USB Host (Playing) | | Standard USB | 1.1 / 2.0 | | USB Devices | USB mass storage devices | | MP3 Sampling Frequency (Stereo) | 32/44.1/48kHz | | MP3 Bitrate (CBR / VBR) | 32 kbps to 320 kbps | | WMA Sampling Frequency (Stereo) | 32/44.1/48kHz | | WMA Bitrate (CBR / VBR) | 48 kbps to 192 kbps | | ID-3 tag | If | | Maximum number of folders | 99 | | Maximum number of files | 999 | | Maximum supply current | 500mA | | File System | FAT 16 / 32 |
Specifications iPod docking station | IPod connection | Maximum power 5 CC, 500 mA |
Speaker Specifications
| Maximum input peak power | 20 Watt | | Impedance | 6 ohms | | Speaker | 100mm cone |
General Specifications | Display Type | Blue backlit LCD |
Power Specifications | Power Consumption | 16 Watt | | Stand-by Consumption (pending) | 1 Watt |
Dimensions and Weights | Main Unit Dimensions (WxHxD) | 165 x 250 x 226 mm | | Speaker Dimensions (WxHxD) | 140 x 250 x 134 mm | | Net weight of unit | 2.3 kg | | Speaker Net Weight | 1.3 kg each |
|
|
