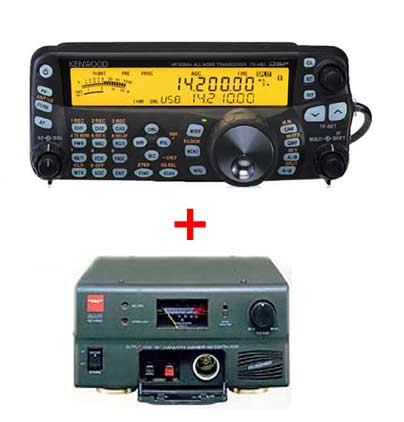

Issuer 480SAT KENWOOD TS-HF 50 Mhz + DIAMOND POWER SUPPLY 40AMP GZV

TS-480SAT Emisora KENWOOD HF 50 Mhz + 1  FUENTE DE ALIMENTACION 25 A. MIRMIDON MPS 3036D  61591
Not available product.
  • TS480SATKIT
  • Issuer 480SAT KENWOOD TS-HF 50 Mhz + DIAMOND POWER SUPPLY 40AMP GZV 4000 WARRANTY KENWOOD IBERICA...

    More info

  • 864,00€

  • Not Available

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..

Equivalent Products



Ref: TS-480SAT TS480SAT KENWOOD HF 50 Mhz Play Special Expeditions

! OFFER! ! OFFER! ! OFFER! ! OFFER! ! OFFER!

Issuer 480SAT KENWOOD TS-HF 50 Mhz + 1 power supply 40 amp DIAMOND GZV 4000

This team is all I want to have a ham radio. Its size and weight make it easily transportable. "0power output of 100W. It also has built-in antenna tuner. This station can be sure to enjoy the best quality at the best price.

We emphasize that thanks to its separate control panel is perfect for use with the base station.

LEVEL ONE COMMUNICATIONS, AT HOME AND NOT

KENWOOD TS-480SAT

LCD control panel with separate speaker
The front of the station has amber lighting, and all keys are lit, being independent can be placed anywhere up to 4m from the main unit

TX / RX AF DSP
The digital signal processor 16-bit AF offers features like noise reduction, TX / RX equalizer filters and FAs.

Continuous RX
500kHz (VFO: 30kHz) to 60MHz TX covers all Amateur bands 1.8MHz to 50MHz

Compact
In addition to a compact and easy to transport, it incorporates a mounting bracket and the carriage of the station even more comfortable.

Among other characteristics described Quad mixer that provides RX dynamic range of the TS-950 class, PSK31 compatibility, packet group tuning (with TM-D700E), PC-based control and optional IF filters.

KENWOOD TS-480SAT

EXCELLENT POWER AND PERFORMANCE

RF Power Output High

RF Power Output High Featuring a double final section presenting combiner and splitter circuitry, the TS-480SAT provides 100 watts of RF output with a power supply 13.8V DC.

Separate Power Sources
F
Separate Energy uent TS-100W 480SAT has two power terminals (DC1, DC2) for separate supply to each of the halves of the double final section. Thanks to this balance of power ensures a stable output. This provision allows the use of two energy sources PS-53 or a single power source 41A.

AF digital signal processing (Tx / Rx)
Thanks to a digital signal processor offers 16-bit double-precision arithmetic operations (equivalent to 32-bit processing), a 100MHz clock and converters"0/"0and"0/"016-bit, TS 480SAT offers many powerful features .

AF Filters

Tilt tuning can be used to remove unwanted noise signal by using high-cut filters and low-cut (SSB, FM and AM), while the width allows adjustment of the passband to avoid adjacent noise (CW / FSK .)

IF filters (options)

Optionally available for more intense operations of the CW narrow IF filters with bands of 500Hz and 270Hz (YF-107C, YF-107CN) and SSB narrow IF filter with 1.8kHz band (YF-107SN). Either of these IF filters can be installed inside the transceiver.

TX / RX equalizer

The equalizer offers flat setting (default), a great boost (2 types), Formant pass, bass boost (2 types), conventional and user separately for transmit and receive.

Configurable control program using the ARCP-480 radio.

Dual cooling fans
The team has twin fans to get perfect cooling.
Thanks to these and the front of the station is separated from the main unit, the fans can create an air flow from front to back. Thanks to this system may transmit continuously for about 30 minutes without having to disconnect

KENWOOD TS-480SAT



This figure is provided for reference purposes only and depends on there being an ambient temperature of 25 º C, antenna SWR of 1.2 or less and nothing to obstruct the flow of air generated by cooling fans.

IF filters (options)
"0quad-mixer provides RX dynamic range equivalent to Class TS-950 (with 50 kHz separation).

TX Filter

The audio quality during transmission can be adjusted to suit by switching between two passband settings (500-2500Hz and the default 300-2700Hz).

Automatic tuning of CW

This feature uses DSP to perform an automatic reset at a desired frequency during CW operations. It is also compatible with RIT.

CW Support

"0full range of CW features, including automatic tuning. When in SSB mode, pressing a button will automatically switch to CW is very handy for 50MHz operations, especially when combined with slow crawl.
Another handy feature is the ability to record different messages for quick transmission during contests.
You can choose between listening between signals or semi full. For the first option, the delay time between key release and active receive mode can be set between 50ms and 1000ms in 50ms steps. Other CW features include separation control (400-1000Hz), the driver side tone volume adjustment 3 steps and an electronic switch, microphone paddle mode and CW reverse mode.

Noise Reduction

NR1 is a line enhanced filter with 10 levels of adjustment (including auto) very good to extract a desired signal. "0good choice for CW operations is NR2 (SPAC), adjustable in 2ms increments (2 ~ 20ms). You can suppress noise at the same frequency as the desired signal, allowing you to extract a weak desired signal noise.

Digital noise limiter (DNL)
With three level settings, the DNL is highly effective at removing even the pulse noise that can not be eliminated with digital and analog circuitry noise suppressor. However, for extra clarity, can be used in conjunction with a noise suppressor, which removes pulse noise at the IF stage.

KENWOOD TS-480SATKENWOOD TS-480SAT

Voice Processor

Available for transmission SSB, FM and AM, the speech processor enhances the clarity of the messages to the receiving station. Can be finely adjusted levels of input / output (0 ~ 100).

ENHANCED OPERATING EASE

Built-in automatic antenna tuner

The Automatic Antenna Tuner TS-480SAT with presets for quick band changes u2014% covers all amateur bands 1.8MHz to 54MHz.

Emphasis on portability

Emphasis on portability Outdoor use is facilitated by DC 13.8V operation and compact dimensions: the 3.2kg unit of measure 179mm (H) x 61mm (W) x 258mm (P), while the control panel 0.5kg has dimensions of 180mm (H) x 75mm (W) x 37mm (P).

Projections not included.

Memory Name function

It is possible a clear identification for the 100 memory channels with up to 8 alphanumeric characters each.

Multiple tracking features

Multiple scan functions Included among the many scan functions are in tracking programs, memory scan, group tracking, tracing slow, tracking and tracing CTCSS privacy codes.

LCD control panel with speaker independent
LCD control panel independently, presenting his own large 6.6cm speaker (2W max output) can be freely positioned at a distance of up to 4 meters from the main unit. The desktop panel support provided is practical to use the radio at home on a desk, while the mobile panel bracket is ideal for mounting in a car. The panel can be fitted in place or removed from a support instantly. It also features 34 keys, each with backlighting to enhance operating ease.

PC-based Control

PC-based Control Program ARCP control of radio-480 (downloadable for free from the Kenwood website) allows PC-based control of all transceiver functions, as well as custom EQ curves TX / RX

PSK31 compatible (SSB / FM)

The TS-480HX/SAT can connect directly to a computer for the increasingly popular PSK31 mode. It also offers the following features and practices:


-
Separate adjustment of the levels of input / output of AF (10 steps)
-
Choice of frequency (1000Hz or 1500Hz)
-
Bandwidth Adjustable AF DSP filter (7 steps)
-
CW narrow IF filters selectable (if fitted)
-
TX with VOX function (no need to control line PTT) PTT operation via the data terminal

Voice guide and storage unit (optional)

The voice guide and storage unit VGS-1 can have two important roles: vocal confirmation of frequency, function keys, etc. and recording / playback of messages received by the transceiver. You can register a total of 90 seconds (3 x 30 seconds) and stored in Flash ROM for playback and transmission. In addition, a convenient constant record function means you can always play the final 30 seconds of reception for confirmation.

Other Features

-
Function Display with transverter (up to 999.9999 MHz)
-
Selection of diversion Wide / Narrow (FM TX)
-
Direct Frequency Input
-
CTCSS (42 CTCSS frequency)
-
1750Hz Tone
-
TX driver
-
Minimum RF output 5W QRP Operation
-
Noise Suppressor
-
Tuning Packages Group TM-D700E
-
Automatic disconnection
-
Timeout Timer

KENWOOD TS-480SAT


Kit Contents

KENWOOD TS-480SAT

Kit Contents

HF radio measurements TS480SAT KENWOOD

KENWOOD TS-480SAT

KENWOOD TS-Front 480SAT

KENWOOD TS-480SAT

Rear View

KENWOOD TS-480SAT

KENWOOD TS-480SAT

Antenna connector

KENWOOD TS-480SAT

Front view of the cover

KENWOOD TS-480SAT

Measures of the cover

KENWOOD TS-480SAT

Rear view of the cover

KENWOOD TS-480SAT

Assembly station

KENWOOD TS-480SAT

Front View Microphone

KENWOOD TS-480SAT

Side view of microphone

KENWOOD TS-480SAT

Top view of microphone

KENWOOD TS-480SAT

Microphone Rear View
KENWOOD TS-480SAT

FEATURES

TS-480SAT
GENERAL
Transmitter Frequency Range 1.81% u2013 2.0MHz, 3.8MHz 3.5% u2013, u2013 7.1MHz 7.0%, 10.1% u2013 10.15MHz,
14.0% u2013 14.35MHz, 18.168MHz u2013 18,068%, 21.0% u2013 21.45MHz,
24.89% u2013 24.99MHz, 29.7MHz 28.0% u2013 50% u2013 52MHz
Receiver Frequency Range 30MHz 0.5% u2013 50% u2013 54MHz (VFO: Continuous 30kHz% u2013 60MHz)
Mode

SSB (J3E), CW (A1A), FSK (F1B), FM (F3E), AM (A3E)

Power Requirements DC13.8V ± 15%
Current Consumption
Transmission

Waiting


I nferior to 20.5A

Less than 1.5A

Operating Temperature -20 ° C +60 ° C% u2013
Frequency Stability
Main Unit:


With optional SO-3 attached:

Within the range ± 5ppm (-20 ° C% u2013 +60 ° C)
Within the range ± 5ppm (-10 ° C% u2013 +50 ° C)


Within the range ± 0.5ppm (-20 ° C% u2013 +60 ° C)
Within the range 1.0ppm (-10 ° C +50 ° C% u2013

Antenna Impedance 50 ohms
Microphone impedance 600 ohms
Grounding Method Negative Grounding
Dimensions (A x"0x P)
Unit: without / with projections

Panel: without / with projections

179 x 61 x 258mm / 179 x 69.5 x 278mm

180 x 75 x 37mm / 183 x 78 x 68mm

Weight (approx.) 3.7kg (Main unit 3.2kg / Panel 0.5kg)
TRANSMITTER
RF Power Output
HF (AM)

50MHz (AM)

100W (25W)


100W (25W)

Modulation:
SSB / FM / AM:
Balanced / Phase / Low Power
Maximum Frequency Deviation: Wide / Narrow Less than ± 5kHz / Less than ± 2.5kHz
Spurious Radiation: HF / 50MHz Below-50dB / Less than-60dB
Carrier Suppression Greater than 40dB (SSB)
Sideband Suppression Undesired Greater than 40dB (SSB)
Transmit Frequency Response 400% u2013 2600Hz (within the range of-6dB)
XIT Variable Band ± 9.99kHz
Adaptation Band
Antenna Tuner
16.7% 150% uDBC0% u2013 uDC31
RECEIVER
Circuitry
CW SSB, AM, FSK
FM
Double superheterodyne
Triple superheterodyne
Intermediate Frequency: 1st IF / 2nd IF / 3rd IF 73.095MHz / 10.695MHz / 455kHz (FM only)
Sensitivity
SSB / CW / FSK (S / N 10dB)

AM (S / N 10dB)


FM 12dB SINAD

4?V lower (0.5% u2013 1.705MHz) / Less than 0.2?V (1,705% u2013 24.5MHz)
0.13?V lower (24.5% u2013 30MHz) / Less than 0.13?V (50% u2013 54MHz)
31.6?V lower (0.5% u2013 1.705MHz) / Less than 2?V (1,705% u2013 24.5MHz)
1.3?V lower (24.5% u2013 30MHz) / Less than 1.3?V (50% u2013 54MHz)

0.22?V lower (28% u2013 30MHz) / Less than 0.22?V (50% u2013 54MHz)

Squelch Sensitivity
SSB / CW / FSK / AM

FM

Less than 18?V (0.5% u2013 1.705MHz) /
1.8?V lower (1.8% u2013 30MHz) / Less than 1.1?V (50% u2013 54MHz)

0.2?V lower (28% u2013 30MHz) / Less than 0.2?V (50% u2013 54MHz)

Image Rejection Ratio Greater than 70dB
IF suppression factor Greater than 70dB
Selectivity
SSB / CW / FSK
AM
FM

Higher than 2.4kHz (-6dB), Less than 4.4kHz (-60dB)
Higher than 5.0kHz (-6dB), Less than 40kHz (-60dB)
Higher than 12.0kHz (-6dB), Less than 25.0kHz (-50dB)
RIT Variable Band ± 9.99kHz
Elimination Aperiodic Greater than 40dB (1kHz)
Audio Output Power More than 2.0W (8 ohms, 10% distortion)
IF Rejection

-

Accessories
