LAFAYETTE SSD87 digital soldering station and desoldering

SSD87 LAFAYETTE estación soldadora y desoldadora digital. 65347
Available product.
  • SSD87
  • LAFAYETTE SSD87 digital soldering station and desoldering. The soldering and desoldering station...

    More info

  • 175,00€
  • VAT not included

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..

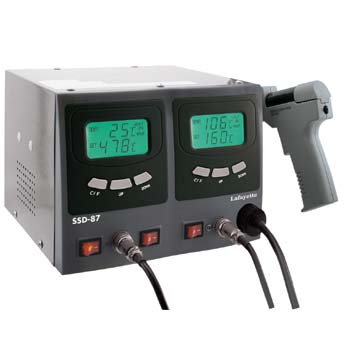

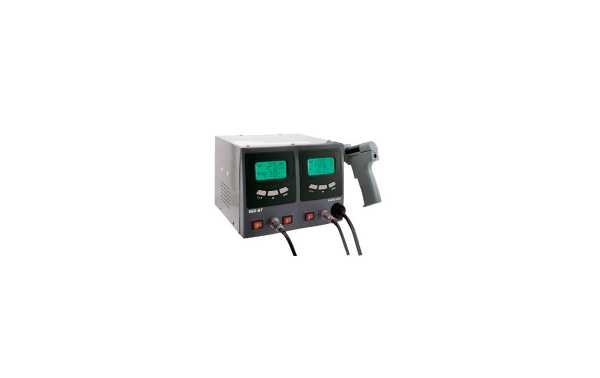

LAFAYETTE SSD87 digital soldering station and desoldering.
The soldering and desoldering station is a high performance and multi-function station for electronic product research, production and rework.

The soldering and desoldering the gun tool are automatically controlled by two
micro-processors.

The digital control electronics and a high quality sensor and heat exchange system guarantees precise control of temperature in the soldering tip.

The highest degree of temperature precision and optimum dynamic thermal load conditions is obtained by rapid and accurate recording of measured values in a closed loop control, and this is especially designed for the free production techniques lead.



LAFAYETTE SSD87 digital soldering station and desoldering.

FEATURES

TECHNICAL DATA
STATION
Input Voltage: 220-240VAC
Power consumption: 60 W 80 W
Main fuse: 3,15
WELDING
Voltage: 24VAC
Energy: 60W to 130W of heat Classification
Temperature: 160 ° C - 480 ° C
Heating element: Ceramic
Desoldering GUN
Voltage: 24VAC
Vacuum pressure: 600 mm Hg
Energy: 60W
Temperature: 160 ° C - 480 ° C

OPTIONAL ACCESSORIES WELDING
60W Soldering Gun Ref 33-410-271
Parts of resistance Ref 33-410-272
N4-1 0.5 mm Tip Ref 33-410-273
N4-2 0.2 mm Tip Ref 33-410-274
N4-3 45 ° Tip Ref 33-410-275
N4-4 knife 2mm Council Ref 33-410-276

OPTIONAL ACCESSORIES Desoldering
Soldering Supplies Ref 33-410-277
Parts of resistance Ref 33-410-278
N5-1 Tip ?0.8 mm Ref 33-410-279
N5-2 Tip ?1 mm Ref 33-410-280
N5-3 Tip ?1.3 mm Ref 33-410-281
