KENWOOD TK 3301
| The renewed TK 3301 is presented as a transceiver even more compact and robust than its prececesor. Added audio and transmission improvements. |
All of our equipment warranty Kenwood Iberica Spain.
Kenwood TK-3301 lithium battery
Free use without license and without permission.
Buy and use.
And is used primarily for business or leisure, enjoy practical and reliable communication with radio Kenwood ProTalk portable compact. It's the affordable way to stay in constant contact since no license is required to use this laptop that can take anywhere. What's more, its sturdy construction and high quality specifications make the ProTalk is ideal for applications requiring uncompromised performance. Easy to handle and extremely versatile, Kenwood ProTalk keep your lines of communication
Segrafonia is a voice coding system, may hold private conversations and the voice is unrecognizable to other walkies, is only valid for Kenwood TK3301 walkies. Configuration to be activated by computer will need the programming cable.
02 KSPL MORE INFO >>>>>
It also lacks the computer software TK3201
Another option when making purchases on the form may indicate segrafonia turn, is free.
! WALKIE professional!
Rugged, reliable Obsoletely, ideal for working in adverse conditions.
Heat, humidity, low temperatures.
! FREE USE WITHOUT LICENSE!

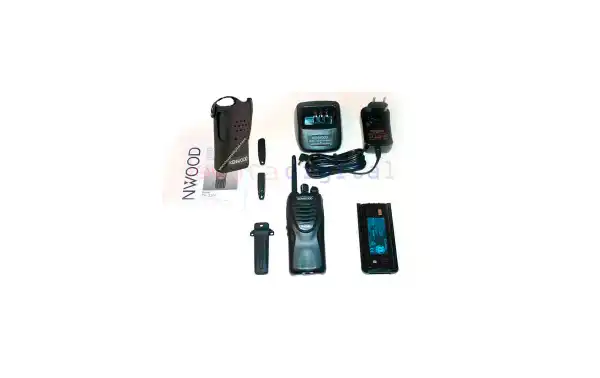

Ref: TK-3301 KIT2
1 BATTERY 2000mAh Battery KNB 45l
1 rapid desktop charger KSC 35
1 Belt Clip
1 Cover KLH131 kenwood
User manual in Spanish, French.
! COMPATIBLE WITH MAKING THE MOST OF FREE USE WALKIES, ALAN, MOTOROLA, ETC .. WITH TK3301
In this case we see how the 3301 TK channel 1 is channel 1 and 10 of any walkie undertone free to use.
CHANNEL NUNERO regards TK3301 channel should put the channel selector channel 1 is the number one on the Motorola T5022, T5622, TLKRT7, XTR446, Alan G7, G5, etc. .. should put the walkie TABLE NUMBER concerns walkie channels in this case would caanl 1 and 10 CTCSS Tone number refers to the undertones.
CHANNEL 1 = MOTOROLA TK3201, ALAN, CHANNEL 1 Subtone 10
CHANNEL NUNERO regards TK3301 channel should put the channel selector on the number 8 is channel eight on the Motorola T5022, T5622, TLKRT7, XTR446, Alan G7, G5, etc. .. should put the walkie TABLE NUMBER concerns walkie channels in this case would be channel 5 and 07 CTCSS Tone number refers to the undertones.
CHANNEL 8 = MOTOROLA TK3201, ALAN, CHANNEL 5 Subtone 07
This table will note that we have detailed the 13-14-15 and 16
channels DIGITAL IMAGING,
this is because they have a digital undertone, so most of the
conventional free use walkies
(Motorola T5422, T5022, Midland G7, etc ...) may not bind
to these channels.
| Led illuminated in red is in charge || Led illuminated in green Charging finished |
| KLH131 COVER |
Renewing Kenwood TK 3101, the current 3301 ProTalk TK enhancements have been added. The renewed TK 3301 is presented as a transceiver even more compact and robust than its prececesor.
It is compatible with TK 3101, TK 3201 and all PMR 446 walkie.
FEATURES 16 CHANNELS (8 CHANNELS FREQUENCY ACCORDING PMR446) 500MW POWER, CTCSS and DTS, VOX CONTROL CHANNEL SEARCH USED, CONNECT TO EXTERNAL MICRO-EAR
Lithium Battery (7.4 v 2000mah.) Fast charger included with the walkie.
| FEATURES |
16 Channels be programmed by the user in one of the 8 frequencies pre-stored PMR446, guided by the voice synthesized.
The ProTalk ® offers 16 channels, each of them can
Signaling DQT digital voice traffic removes unwanted and provides groups on shared frequencies or radio systems. The system Voice programming guide allows the user synthesized select from a list 38 pre-stored ringtones QT / DQT or without tone.
The sub-audible tone or analog QT
PMR446 service is a voice communication system of short-range unlicensed featuring eight RF channels that are compatible for use across Europe. Each RF channel can be assigned a key tone Quiet Talk (QT) (Quiet Talk) to eliminate unwanted signals. This helps minimize interference from other users and will not hear the audio if your radio receives a signal with the incorrect tone key. The ProTalk also has a channel selector button 15 positions can be programmed with any of the eight RF channels. QT eight keys are stored presets per channel
Compatibility and continuity
Thanks to the 8 pre-stored frequencies and QT tones and 38 DQT tones, the ProTalk ® can operate on the same channels and codes of tones than other brands. So choosing the compact Kenwood ProTalk ® does not collide with any of their previous investments in equipment PMR446 radio.
Pack% u201Ctodo including% u201D
The ProTalk ® is ready for immediate use after purchase. Supplied with all necessary accessories, fast charger and Li-ion battery KNB-45L, extra capacity (2000mAh). Also included belt clip.
Long battery life
The battery included is the KNB-45L (2000mAh) and offers up to 20 hours of operation.
Range of 5km (3 miles)
The new ProTalk ® offers 0.5 W of output power and enables direct communication radio radio on the same frequency (single) for distances up to 5km *.
* The distance range depends on terrain, obstructions and other conditions
The laptop may have to work in noisy environments, so the audio frequency curve of the new ProTalk ® has been designed to optimize communication. In addition, the 32mm-diameter speaker delivers up to 500mW, ensuring high and clear communications.
Scan Channel confirmation mode Key lock Voice Masker Alert Tones TOT: limiter channel occupancy time low battery warning
Compact and intuitive design
The new ProTalk ® is an industrial design worthy of winning - very functional and sturdy, stylish enough to work at home, in the lobby of a hotel or restaurant. Every detail has been carefully designed. Its rounded edges provide a comfortable ergonomic grip and slip channel selector ensures a good grip for a secure channel selection.
Cast aluminum chassis
The cast aluminum chassis provides exceptional strength. This feature, combined with the design of underwater case and shock protection or fall says the ProTalk ® provides years of reliable use. This rugged radio is built to meet all weather. In fact, the new ProTalk ® meets and exceeds the stringent standard of protection IP54/55 dust and rain, and U.S. environmental standards MIL-STD 810 C,"C and F, which includes the blowing rain ordeal.
| 8 channels of RF and 16 simplex |
Battery saving function.
Low battery warning light, red light flashes and audible warning
Battery life 16 hours
45L KNB litio.2000 mAh battery.
Walkie VOX Voice Activation.
When you reach the streaming limit of 1 minute timeout timer automatically switches to ProTalk reception. This limits the transmission time of each unit to help reduce channel congestion and conserve battery power.
This feature automatically puts the receiver in "sleep mode" to conserve energy when it has been in standby mode (no transmission or reception) for 10 seconds.
Low battery alarm
Alerts you when to recharge the battery via the LED flashing red.
By providing aluminum casting, injection molding the Kenwood ProTalk meets military standards for reliable performance in harsh environments.
The aluminum injection molding provides exceptional strength that, when combined with rugged design and sealed, allows the ProTalk provide years of reliable use. The ProTalk also meets the environmental specifications MIL-STD 810 C,"0and E on vibration, shock, humidity, dust and light rain. Besides being extremely durable, the ProTalk also has adequate measures. ProTalk Bring in your pocket or belt and barely notice it is very small and lightweight
