DIAMOND X-30 Dualband VHF / UHF base antenna. ORIGINAL JAPANESE

Antenna BASE ORIGINAL JAPANESE DIAMOND BIBAND X-30 .Antena valid for transmit and receive on two VHF / UHF bands. It has three radiales.Se can be installed on mast diameter 30 mm to 60 mm. Connection Type N. Length 1.3 m. A stretch. 5773
  • Antenna BASE ORIGINAL JAPANESE DIAMOND BIBAND X-30 .Antena valid for transmit and receive on two VHF / UHF bands. It has three radiales.Se can be installed on mast diameter 30 mm to 60 mm. Connection Type N. Length 1.3 m. A stretch. 5773
  • X -30 DIAMOND ANTENNA ORIGINAL JAPANESE DIAMOND BIBAND VHF / UHF 5773
  • X -30 DIAMOND ANTENNA ORIGINAL JAPANESE DIAMOND BIBAND VHF / UHF 5773
  • X -30 DIAMOND ANTENNA ORIGINAL JAPANESE DIAMOND BIBAND VHF / UHF 5773
  • X -30 DIAMOND ANTENNA ORIGINAL JAPANESE DIAMOND BIBAND VHF / UHF 5773
  • X -30 DIAMOND ANTENNA ORIGINAL JAPANESE DIAMOND BIBAND VHF / UHF 5773
  • X -30 DIAMOND ANTENNA ORIGINAL JAPANESE DIAMOND BIBAND VHF / UHF 5773
  • X -30 DIAMOND ANTENNA ORIGINAL JAPANESE DIAMOND BIBAND VHF / UHF 5773
  • X -30 DIAMOND ANTENNA ORIGINAL JAPANESE DIAMOND BIBAND 144 VHF / UHF 430 Mhz 5773
  • X -30 DIAMOND ANTENNA ORIGINAL JAPANESE DIAMOND BIBAND 144 VHF / UHF 430 Mhz 5773
Available product.
  • X30
  • Dualband base antenna DIAMOND X-30 ORIGINAL JAPANESE. Antenna valid for both VHF / UHF bands.

    More info

  • 39,95€
  • VAT not included

DIAMOND X-30

diamond x30 ORIGINAL

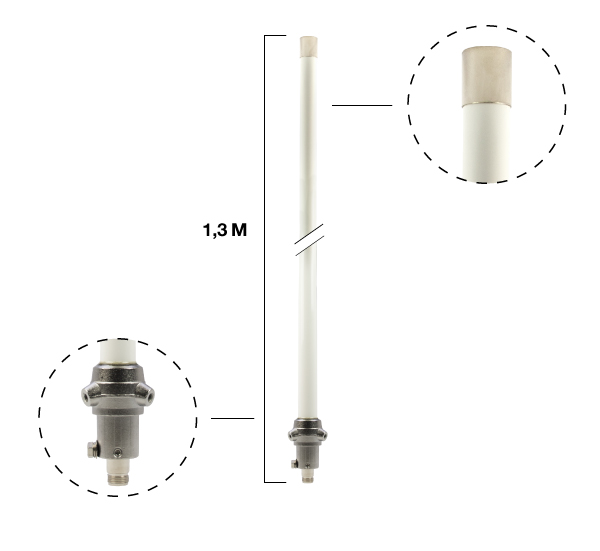

Dualband base antenna DIAMOND X-30 ORIGINAL JAPANESE. Antenna valid for transmitting and receiving on both VHF / UHF bands. It has three radials. It can be installed on a mast with a diameter from 30 mm to 60 mm. Connection Type: N female. Antenna length: 1.3 m White fiber. One section.

antena base bibanda diamond original japonesa x 30 .antena valida para transmitir y recibir en dos bandas vhf/uhf. dispone de tres radiales.se puede instalar en mastil diametro 30 mm a 60 mm. tipo de conexion n. longitud 1,3 m. un tramo.

Kit Contents DIAMOND X-30
  • 1 White fiber antenna
  • 2 Brackets for mast from 30 mm to 60 mm

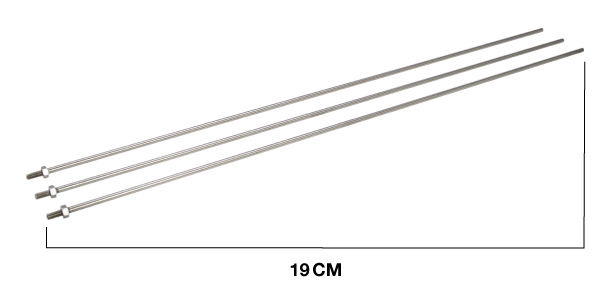

  • 3 Radials with 19 cm length
  • 1 English installation assembly

antena base bibanda diamond original japonesa x 30 .antena valida para transmitir y recibir en dos bandas vhf/uhf. dispone de tres radiales.se puede instalar en mastil diametro 30 mm a 60 mm. tipo de conexion n. longitud 1,3 m. un tramo.

You might consider the adapter to PL see link click here <<< >>>

antena base bibanda diamond original japonesa x 30 .antena valida para transmitir y recibir en dos bandas vhf/uhf. dispone de tres radiales.se puede instalar en mastil diametro 30 mm a 60 mm. tipo de conexion n. longitud 1,3 m. un tramo.

Features

  • Impedance: 50 Ohm
  • VHF Gain: 3 dB
  • UHF Gain: 5.5 dB
  • Maximum power: 150 watts
  • Wave length VHF 1/2 (144 Mhz)
  • Wave length UHF 5/8 (430 Mhz)
  • Antenna length: 1.3 meters
  • Sections: 1
  • Weight: 800 grams
  • SWR: 1.5
  • Connector: N female
  • Radials: 3 with a length of 19cm
  • Maximum resistance to wind: 60 m / sec (135 MPH)
