Available product.
  • X200N
  • Dualband base antenna DIAMOND X-200N ORIGINAL JAPANESE. Antenna valid for both VHF / UHF bands.

    More info

  • 68,00€
  • VAT not included

DIAMOND X-200

diamond x30 ORIGINAL

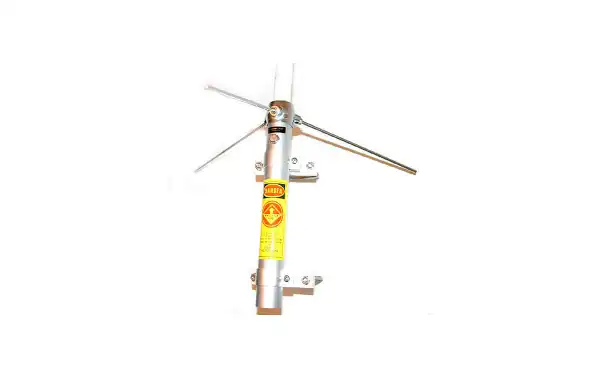

Dualband base antenna DIAMOND X-200 ORIGINAL JAPANESE. Antenna valid for transmitting and receiving on both VHF / UHF bands. It has three radials. It can be installed on a mast with a diameter from 30 mm to 60 mm. Connection Type: N female. Antenna length: 2.5 m White fiber. Two sections.

antena base bibanda diamond original japonesa x 200. antena valida para transmitir y recibir en dos bandas vhf 144 /uhf 430. dispone de tres radiales. se puede instalar en mastil diametro 30 mm a 60 mm. tipo de conexion n hembra. longitud antena fibra color blanco 2,5 m. dos tramos.

Kit Contents DIAMOND X-200

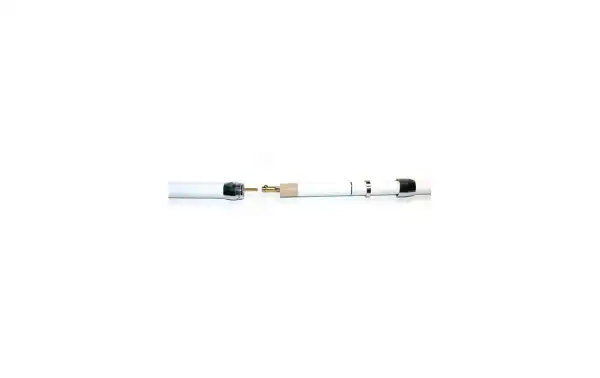

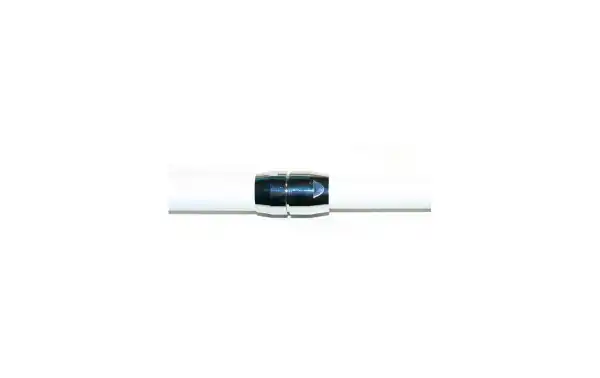

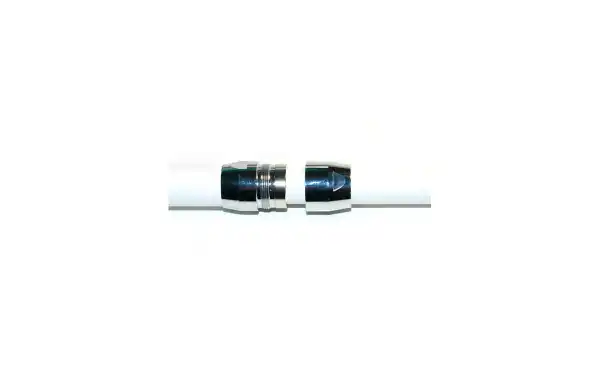

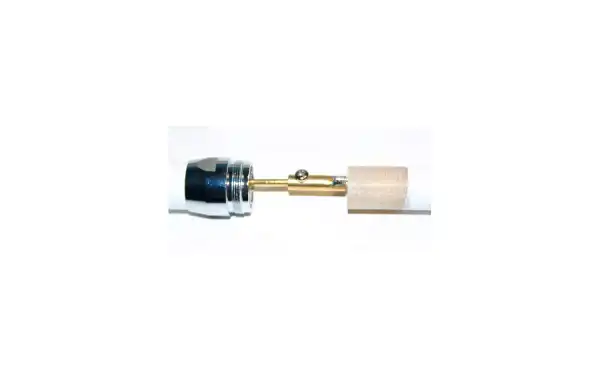

  • 1 White fiber antenna with two sections

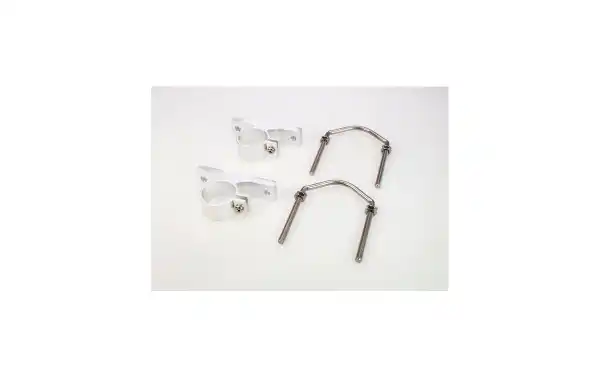

  • 2 Brackets for mast from 30 mm to 60 mm
  • 3 Radials with 52 cm length
  • 1 English installation assembly

antena base bibanda diamond original japonesa x 30 .antena valida para transmitir y recibir en dos bandas vhf/uhf. dispone de tres radiales.se puede instalar en mastil diametro 30 mm a 60 mm. tipo de conexion n. longitud 1,3 m. un tramo.

You might consider the adapter to PL see link click here <<< >>>

antena base bibanda diamond original japonesa x 200. antena valida para transmitir y recibir en dos bandas vhf 144 /uhf 430. dispone de tres radiales. se puede instalar en mastil diametro 30 mm a 60 mm. tipo de conexion n hembra. longitud antena fibra color blanco 2,5 m. dos tramos.

Features

  • Impedance: 50 Ohm
  • VHF Gain: 6 dB
  • UHF Gain: 8 dB
  • Maximum power: 200 watts
  • Wave length VHF 5/8 (144 Mhz)
  • Wave length UHF 5/8 (430 Mhz)

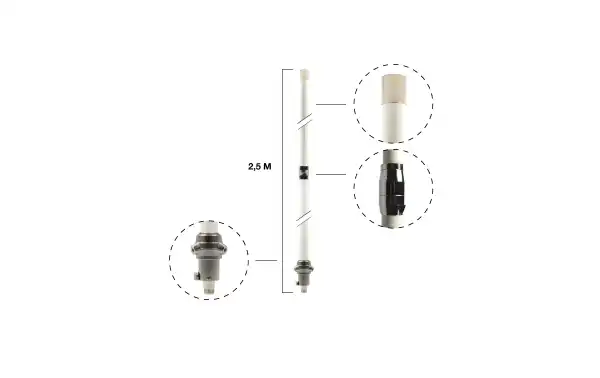

  • Antenna length: 2.5 meters
  • Weight: 1.2 kg
  • SWR: 1.5

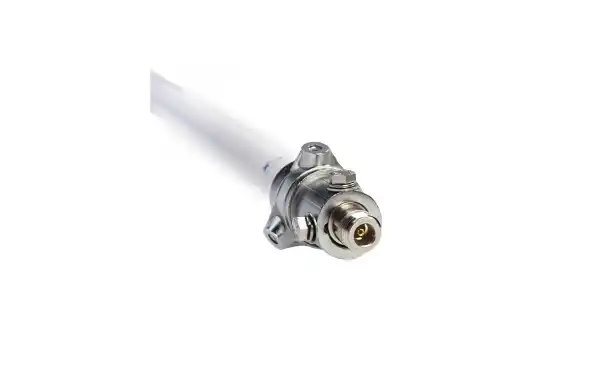

  • Connector: N female

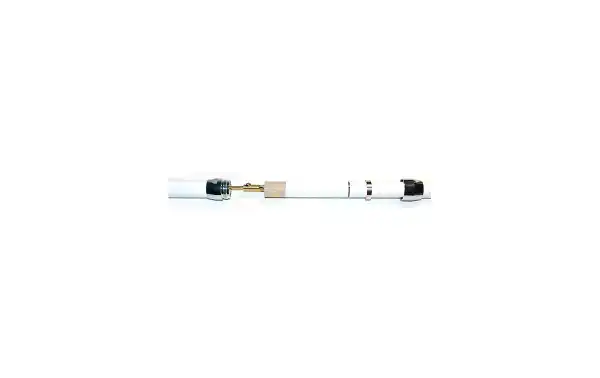

  • Sections: 2

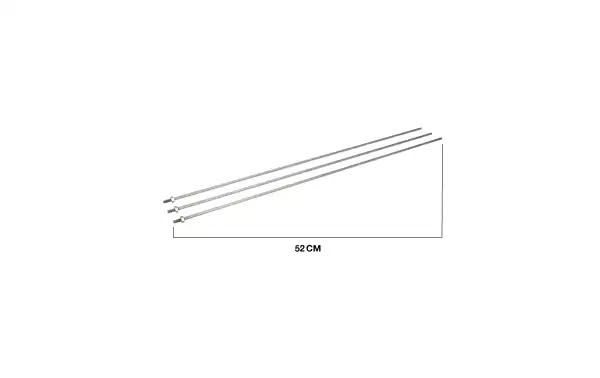

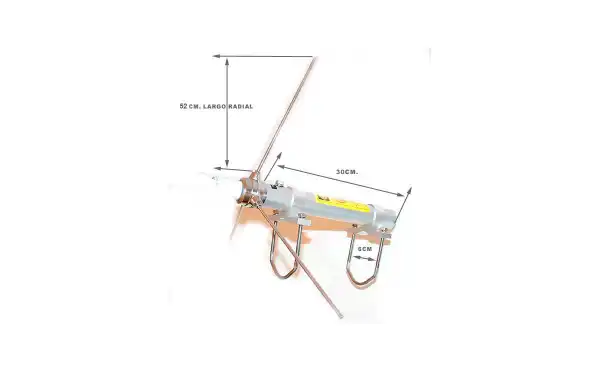

  • Radials: 3 with a length of 52cm
  • Radials Material: Stainless Steel
  • Maximum resistance to wind: 50m / sec (112.5 MPH)
