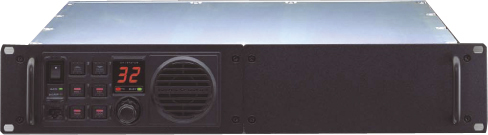

YAESU VERTEX STANDARD YAESU VXR9000UA TYPE REPEATER 440 470 MHz UHF type C DUPLEXER
It comes with the duplexer adjusted to the frequency required by the customer.
Repeater VERTEX STANDARD VXR 9000 allows communicate users distant and / or by the orographic characteristics of the land, mountains, valleys, tall buildings, industrial structures, basements etc., is not possible direct link with mobile or portable computers. In these cases YAESU / VERTEX has developed over years of experience repeater systems of high robustness in all weather conditions. With a repeater station can connect zones isolated to the reliability and control over the system provides us with a decentralized system of large operators. The VXR 9000 us provide years of perfect operation. Thanks to its chassis alloy allows use in continuously without overheating problems
|The VXR 9000 is a relay that can switch based mode with the touch of a button and incorporate a microphone, its design allows easy use as a base station or install 19-inch rack. |
The VXR 9000 can grabarle up to 32 channels, selectable computer and has the function scanner for use together by one or more networks
The VXR 9000 has a 13.5 VDC battery input emergency so that if a fault occurs the main power in the 9000 VXR automatically switch to auxiliary input and incorporate an audible signal to alert the transmission problem.
We can also schedule other modes; in case of failure CC go to low power and emit the alarm signal, etc.
We can also "Resetar" distance the VXR 9000 utilzando the decodificadota function 2 adjustable shades.
| || |
| ||FEATURES |
|UHF 440 470 MHz |
|Synthesized channels 32 12.5 / 25 KHz software selectable |
|RF output power: 25W adjustable May 10 |
|CTCSS / DCS |
|Silencer preset internally |
|Volume and Squelch accessible from front |
|Antenna Connector Type "N" |
|numerical information channel in use |
|6 front programmable keys |
|Secrafonía options supports low or high security |
|TOT, penalization, BCLO, BTLO |
|selectable base mode or repeater |
|Input for battery backup |
|Space inside duplexer |
|Programmable by PC |
|Optional entry line |
|Data input port D SUB 25 pin |
|Working temperature: 30 ° C ~ 60 ° C |
|Dimensions: 483x88x343 mm |
|Weight: 9.7 Kg |
