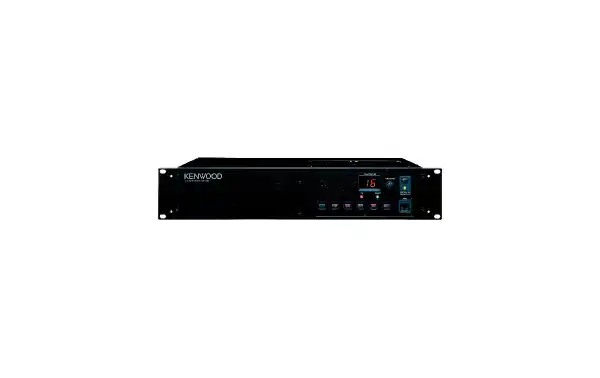

UHF REPEATING TKR-850E3 KENWOOD 406-430+ POWER SUPPLY KPS RPT + DUPLEXOR
The TKR-850 can be a %u20Çrepetidor comunitario%u201D thanks to their controller of up to 16 simultaneous groups QT/DQT, with programmable functions such as access by 5-Tonos, YOU GO of the Transmitter in CW, limitors of continuous transmission. Levels of power preprogrammed TKR-750: 25W or 50W; TKR-850: 25W to 40W; TKR-851: 5W or 25W is ideal for the place where it is used, in applications of primary configuration and reserve
CONVENTIONAL USE Or OUTPOST
The TKR-750/850 can be used like conventional repeater or transceiver of a system of shared resources (trunking, etc). The internal conventional controller can be avoided and the unit external controller will accede easily to thehandling of the repeater for advanced systems of communication.
AndSTACIÓN BASES WAY SÍMPLEX Or DÚPLEX
The TKR-750/850 can be formed to work in station way bases símplex or dúplex, has up to 16 channels and scan high-priority. It anticipates the antenna switch in solid state to operate in simple way with unique antenna (it requires internal modifications, to see manualthe on watch one). The accessory connectors provide the remote interface ofc ontrol of the tone or of CC. Also the six function keys PF, indicators LED, the button of the volume, the local loudspeaker are programmable, the control tones/warning / alerts/beginning and its levels to facilitate any local installation, in a room of equipment oen a remote place.
SELECTIVE RINGING OF 5 TONES, TO OPEN/TO CLOSE REPEATER
The coder/built-in decoder of 5 Tones (up to 3 frame) is compatible with an ample range of European protocols - EEA, EIA, CCIR, ZVEI, ZVEI-2, as well as the format of Kenwood tone - at the same time that allows detailed adjustments of the parameters. There is also a function decoder of 5 Tones to open or to close the repeater; this one can be used jointly with the QT/DQT.
WIRELESS REMOTE CONTROL BY 5-TONOS/DTMF
All the functions of Keys PF of the frontal panel and the functions of Entrance AUX can be activated and be deactivated by remote control through the air via codes of 5-Tonos or DTMF and their actions confirmed by a tone of recognition or a code of personalizeable 5-Ton os/DTMF. Also Exits AUX can be activated or deactivated when codifying a code I specify of 5-Tonos/DTMF with the purpose ofbeing able to monitorizar states or alarms (examples: COR, state of the ventilator, feeding CC loss, slope of power RF, failure of the PLL, detection TOR and TX). The assigned entrances and exits to a programmable function cannot be associated to specific codes of 5-Tonos/DTMF for the control of external devices (examples: Failure of the conditioned air, door/open vestibule).
DISPLAY & INDICATORS LED
Display frontal of 2 carcteres/7 segments has improved its visibility and allows to assign 2 alphanumeric characters to the indication of channel and indication of Scan based on station bases, indication failure PLL and way programming PC, as much on way bases or repeater. The frontal LED two-color pencil provides indication of transmission, reception, main feeding CC/reserve.
FACILITIES IN FEEDING OF RESERVE
A tone of warning of feeding of reserve is transmitted during 5 seconds after provision CC exchanges of the feeding %u20Çprincipal%u201D to %u20Çreserva%u201D. Optionally a Tone of reminder can be added to the transmissions while it is in feeding of reserve. These warnings can be activated when exchanging of main feeding to reserve or by monitoring of the level of voltage available in the entrance of feeding of reserve, level of programmable tension.
SOFTWARE PROGRAMMING® WINDOWS And FITS
The programming and fits from compatible PC with Windows® provides a easy route of personalización and calibration using software KPG-91D and the cable of programming KPG-46. The more common parameters * of calibration are with no need fit to open to the unit or use of tools.
* They require manual tuning: the helical resonador of the receiver, the waveform of the MCF and the coil detector of Quadratura. Windows® is a registered tradename of Microsoft Corporation, U..A.
FACILITIES OF THE REPEATER
Communitarian repeating way up to 16 Tones QT/DQT
Interface of the external controller
Compatibility with conventional controllers or of shared resources
Tone of courtesy
Up to 8 YOU GO of the transmitter in CW
Timer of repetition tail
Timer of maximum time of transmission.
CHARACTERISTICS OF THE STATION BASE
Operation símplex or full-dúplex
Commutator for antenna only way simplex
Entrances with remote control
Indicating LED of channel & scan of 7 segments and 2 characters
Indication of 2 alphanumeric characters by Channel
Indicators LED of feeding/transmission/reception
6 illuminated Keys PF
Key PF Remote local way/
Raised keys PF/lowered of channel
Control knob of volume
Connector of frontal microphone
Optional port for unit encriptación of voice
Formable power 25-50W (TKR-850: 25-40W; TKR-851: 5-25W)
Continuous transmission (100% @ 25W)
Design of assembly in rack 19%u201D
Spaced of channel ancho/estrecho
Main connector of feeding CC (provision of nourishing CA to CC optional)
Connector of feeding CC reserves with automatic change
Tones of warning and operation of feeding reserve
Exit of later external loudspeaker (4 audio W)
Connector later external access (25 Pin)
Connector of tests - Loudspeaker - later AUX (15 pin)
Built-in ventilator of refrigeration (controlled by the temperature or feeding)
Functions of entrance/programmable exit AUX
Selection of remote channel BCD (3 lines)
Entrances macro-function AUX
Selecionables entrances AUX by level or flank
Control of the functions remote wireless by tones DTMF/5
selectionable Pre-emphasis in entrance TA AUX
External entrance PTT activates in the beginning
Processing DSP of the QT/DQT
Audio tablet expanded by DSP (single way bases)
Elimination of the noise of tail by silenciamiento of QT/DQT
Tones of alert for control, warning, alert & connection
Electronic serial number (ESN)
Message incorporated with protection by password
Oscillating of high stability (TCXO)
Programming & fits by compatible PC Windows® 98/2000/Me/XP
