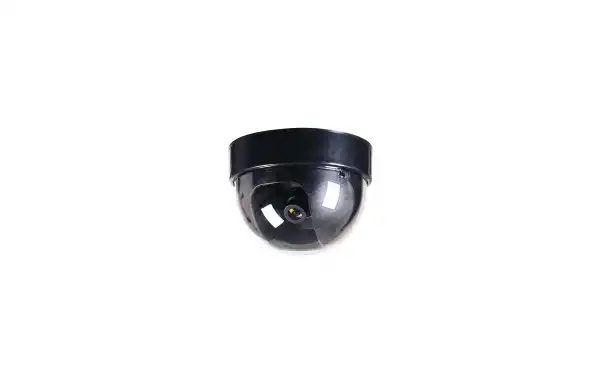

BRV-300T DOME Camera reverse gear type for rear view systems. For use

BRV300T 63094
Available product.
  • BRV300T
  • BRV300T DOME Camera reverse gear type for rear view systems. For use with monitors that have mirror function....

    More info

  • 49,00€
  • VAT not included

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..


Ref: BRV 300T DOMO camera reverse gear type for rear view systems. For use with monitors that have mirror function. This camera is for indoor use.


Valid for TAK7511 / DF2155 / DF2255 / 2510CM / TAK2510 / FP2500 / DF1150 / DF6500 / DF3170IR / DF4500 / DF27TV.




TAK 300T reversing camera for rear view systems



Connector 300T TAK reversing camera

DF8083S Cámara marcha atras para sistemas de retrovisión








FEATURES



?
Model BRV 300T
Image Pick up Device 1/3 "SHARP COLOR CCD
Horizontal Resolution 420 TV Lines
Number of Pixels NTSC: 510 (H) x 492 (V) PAL: 500 (H) x 582 (V)
Scanning System NTSC: 525 Lines, 60 Field / sec,
PAL: 625 Lines 50 Field / sec
Sync System Internal Synchronization
Gamma Characterlstic 0.45
S / N Ratio = 48dB (AGC Off)
Electronic Shutter Time On: NTSC 1/60 ~ 1 / 100,000sec, PAL 1/50 ~ 1 / 100,000sec;
Off: NTSC 1/60 Sec, PAL 1/50 Sec
Usable Illumination 1 Lux (F: 2.0)
Lens Board Lens 3.6mm / F2.0 (optional)
Video Output 1.0Vp p 75 ohm
Gain Control (AGC) Auto
Cable BNC JACK
Operation Temperature 10 ~ 50 RH95% Max
Storage Temperature 20? ? ~ 60 RH95% Max
Power Supply DC12V 400mA ± 10%
Dimension 80 (D) x 70 (H) mm
Weight 250g







Accessories
