KIT-1 BARRISTER BRV7 Camera for reversing maneuvers 1 CAMERA WITH SOUN

BRV7_SISTEMA_AYUDA_APARCAMIENTO_CAMARA_MARCHA_ATRAS_MONITOR_7_PULGADAS KIT1 65027
Available product.
  • BRV7KIT1

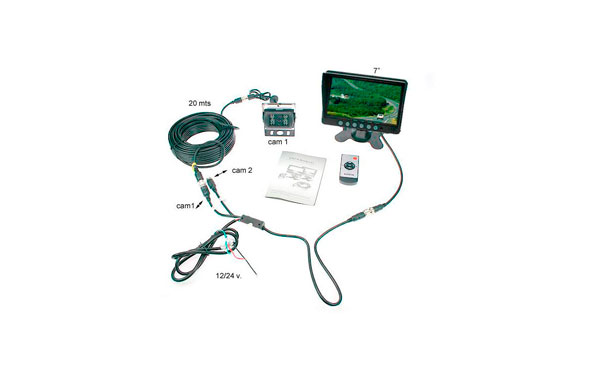

  • BRV7 KIT-1 Camera Barrister for reversing maneuvers + 7 inch Monitor - BLACK HOUSING rear view system....

    More info

  • 198,00€
  • VAT not included
0Lux (IR LED ON)
OUTLINE OF POSSIBLE CONFIGURATIONS
IR projection distance

  KIT VISION reverse gears

6 meters

Power consumption
BRV7 KIT 1 BARRISTER Camara reversing maneuvers 2W

The kit is composed of a 7-inch monitor that includes an exterior color camera. This camera is placed in the rear of the vehicle, allowing you to see what's behind all times and to escuhar.El microphone installed in the camera can be used to give instructions to the driver from outside the instructions can be heard by the driver through the monitor speaker.

The camera is very robust and incorporates a mounting assembly is simple. Thanks to this support we can fix the camera angle. It includes cutting edge technology that detects light. By the time the camera detects no light, switches to night mode.
VIDEO enters the monitor by the connection cable that incorporates. Water resistance The monitor includes a screen saver, protect from light, offering a clean, sharp image at all times.

Suitable for campers, caravans, trucks, vans, etc. To reverse maneuvers, parking, loading, vehicle security and surveillance, etc.

IP66

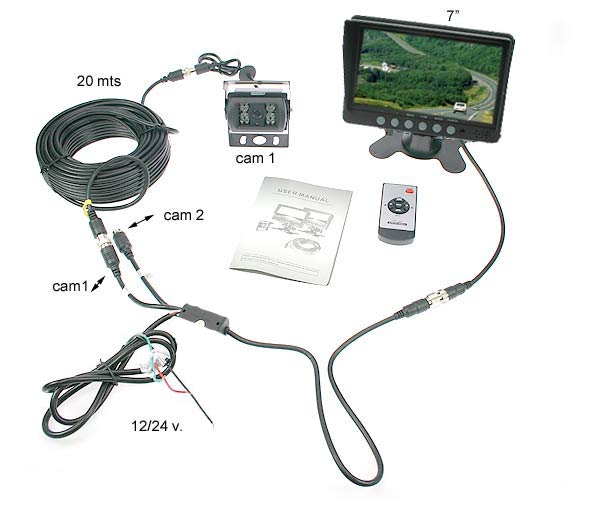

The subminister kit with all necessary accessories for installation
TFT LCD Monitor 7 inches.
Cable connection of 20 meters.

Supply 12 v or 24 v.
Material Chassis
Supplied with all accessories for assembly.

I just

Continuous Vision Camera

Weight of camara and support

Connecting the monitor to the camera using the connection cables get the picture at all times.



380g



Operating temperature
10 · C 50'C

  Includes

BRV7



  Front view BRV7

    BRV7



Side view   BRV7

BRV7



Rear View   BRV7

BRV7



  BRV7



BRV7



  View camera BRV7













   Camera connector

DF2510 SISTEMA AYUDA APARCAMIENTO





BRV7



Display Device: Digital Color Monitor
Video Input: 2 channels
Sound system: SI
Tanaño Screen: 7 inches
Application Power Supply: (12V24V)
Power consumption: 8,64W


Digital color monitor 7 inch 16: 9
Operating temperature: 10º C / 65º C
Resolution: 800 x 480 RGB dots
Video Format: PAL
Function display: Mirror / Normal / Rotacion
Certificates: CE / RoHs / FCC / e 1303 12699







FEATURES

The convenient system for large vehicles embergadura
Good view. No reflejante
Possibility of choosing image
TFT LCD Monitor 7 inches AV1, AV2
The camera is designed for outdoor use waterproof
High resolution and wide field of view

SPECIFICATIONS



TFT LCD Monitor

Display Device

Color TFT LCD Monitor

Screen size

7 inches

Audio output

200MW

speaker

if

Terminals

(AV1, AV2,

Power consumption

about 8W

Dot Pitch

0.107 (H) 0.319 (V)

Resolution

960 (H) 234 (V)

angle vision

U: 15 / D: 35, R / L: 55

Contrast

150: 1

Gloss
300cd / m2 Contrast: 150: 1 Welght. 430g
Dimensions
Width 125mm 163mm Height 30.5mm Fund





Camera



image Sensor

Color CCD

voltage input

DC12V ± 15% (350rnA)

Lens:

2.9 3.6mm (Board)

scanning System

2: 1 lnterlace

Resolution

380 TV lines

signal / noise

~ 48dB (AGC Off)

output video signal

1.0Vp p 75 ohm

Caracteristica gamma

0.45

internal Synchronization

SyncSystem

minimum Illumination

0Lux (IR LED ON)

Distancia de proyección IR

6 meters

Consumo de energia

2W

Resistencia al agua

IP66

Material del chasis

Me tal

Peso de camara y soporte

380g

Temperatura de funcionamiento

10·C 50'C

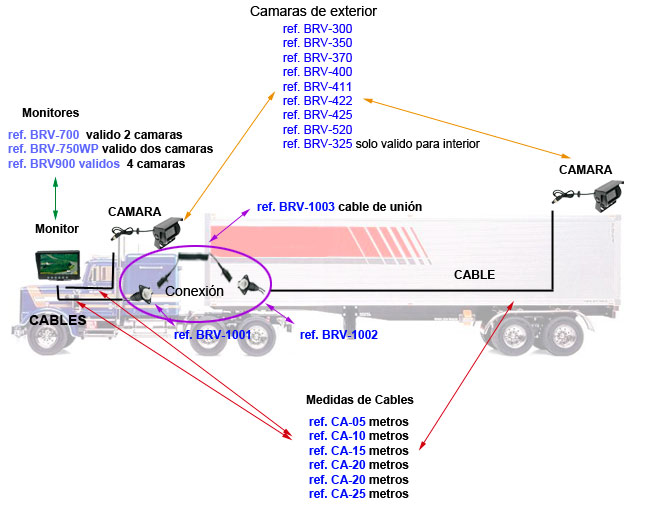

ESQUEMA DE POSIBLES CONFIGURACIONES







Accessories
