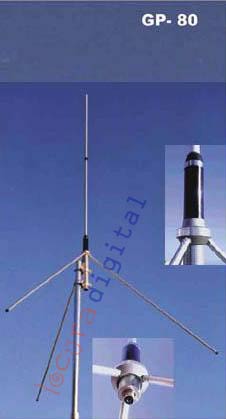

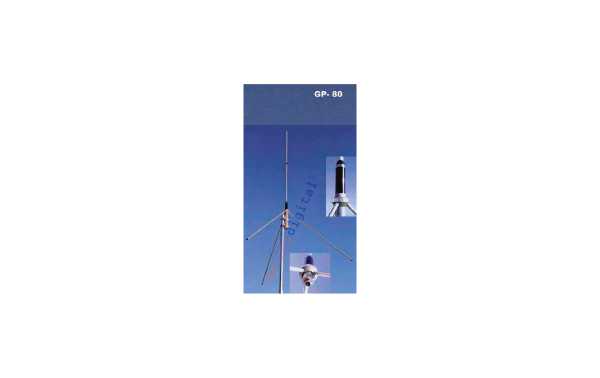

GP80 AERIAL OF BASE SPECIAL AVIACION 118- 136 MHZ

GP80 ANTENA DE BASE ESPECIAL AVIACION 118- 136 MHZ 62393
Available product.
  • GP80

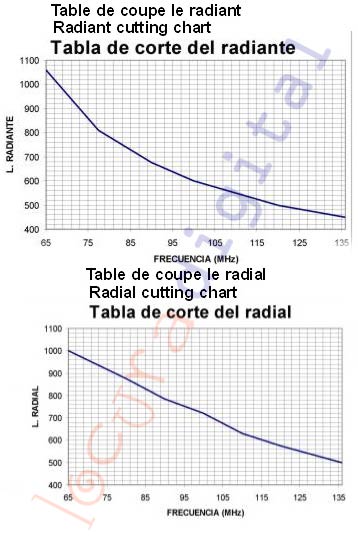

  • GP80 ANTENA DE BASE ESPECIAL AVIACION 65 - 136 MHZ With table of cut stops bigger performance.

    More info

  • 75,00€
  • VAT not included

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..



 !! SPECIAL STOPS AVIACION BASE!



GP80 AERIAL OF BASE SPECIAL AVIACION 118- 136 MHZ





Kind - Type - Type
Ground plane 1/4
Frequency - Frequency - Fréquence
65-136 MHz
Boosts - Power - Puissance
200 W
Profit - Gain (DB) - Gain
0 dBd (2,15 dBi )
Polarization - Polarization - Polarisation
Vertical
Impedance - Impedance - Impédance
50 Ohm
Kind of tightening - Adjust type - Type d'ajustage
Adjustable/ Adjustable
R.O.E - S.W.R
1,2:1
Assembly - Mounting (mm )
Mast/ Mast 30-45 mm
Type conect. - Type of conn. - Type of conn.
Type UHF/ Type PL
Weight brute - Gross weight (gr.)
1860 gr. (1pcs )
Sizes - Packages dimensions (cm )
134 x 9 x 8,5
Long.Radiante - Radiator Length - Radiant Longueur
1060 mm
Long.Radial - Radial Length - Radial Longueur
1000 mm
