ICOM IC A6. For Equipment Aerial Band WITHOUT VOR

 46847
Available product.
  • ICA6
  • For Equipment Aerial Band. ACCREDITED FOR AVIATION. Without VOR, Walkie 118/136 VHF talkie MONOBAND MHz....

    More info

  • 241,20€
  • VAT not included

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..

DESCRIPTION OF THE PRODUCT

6 ICOM IC-A E
MONOBAND VHF/AM 118/136,975 MHZ
ICOM MARKING DIFFERENCE

For Equipment Aerial Band
ACCREDITED FOR AVIATION
Without VOR




ICOM MARKING DIFFERENCE!

Walkie VHF talkie MONOBAND (118/136 MHz).
Power 5vatios.
Bellboys and screen of great size
- immediate Selection of the emergency channel 121.5
- 50 programmable memories
- Search of frequencies and memories
- Night for Illumination uses


Ref: IC A6 E

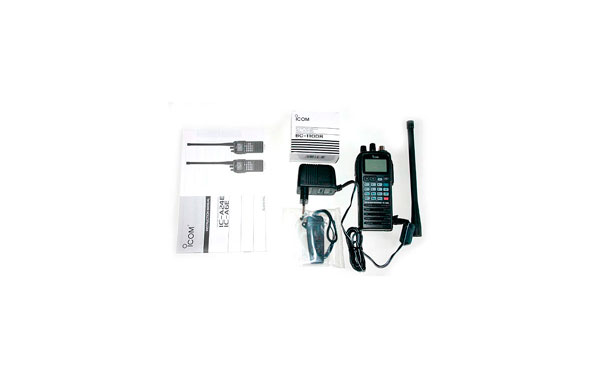

It includes:
1 VHF walkie IC To 6 and + to shipper +1 BC -110 Dr BP battery 210N 7,2V. 1650mAh. Neither to paper Castilian paper clip belt manual +









Connector of antenna type BNC



CHARACTERISTICS

Portable equipment VHF A.M. Aerial Band. Cover of frequency: Tx/Rx from 118 to 136,975 MHz. Power output to 5V DC: Discharge, low of 1 W. 200 channels of memory. Key of direct Access to 121,5 MHz.

- Bellboys and screen of great size
- immediate Selection of the emergency channel 121.5
- 50 programmable memories
- Search of frequencies and memories
- Night for Illumination uses
- Power of emission of 5 W

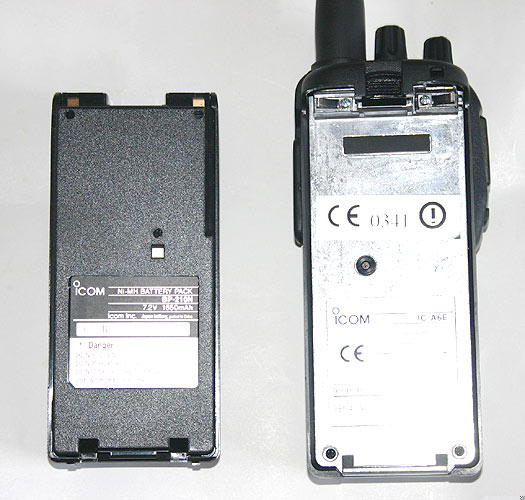

- Battery of NiMh of high capacity (1,650 mAh)
- Robust resistant structure outdoors

General
%u2022 Frequency range: Tx/Rx 118.000%u2013136.975MHz, Rx 108.000%u2013117.975MHz (IC-A24 only), Weather 161.650%u2013163.275MHz
%u2022 Mode: A.M. (6K0C9), WX FM (16K0GE')
%u2022 Chanel spacing: 25kHz
%u2022 no. of memory channels: 200 (20 CH 10 banks)
%u2022 Power supply requirement: 7.4/7.2V DC (Battery pack), 11.0V DC (External DC Jack)
%u2022 Current drain (AT 7,2 V DC): 1.Typical Tx , Rx typical audio Max. 300mA, typical Stand-by 70mA
%u2022 Frequency stability: 5ppm
%u2022 Operating temp. range: %u201310C to +60C; +14F to +140F

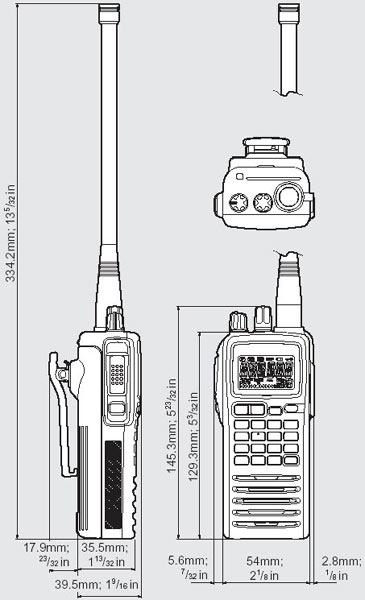

%u2022 Dimensions (WHD): 54129.335.5 mm, (2 1/85 3/3211 3/32 in), (projections not included)
%u2022 Weight (approx.): 430g; 15.z, (with antenna and BP-210N)
%u2022 Antenna impedance: 50? (BNC type)

Transmitter
%u2022 Output to power (AT 7.2V DC): 5.0W typ. (PEP), 1.5W typ. (CW)
%u2022 Modulation system: Low level modulation
%u2022 Modulation limiting: 70%u2013100%
%u2022 Audio harmonic distortion: Less mod than 10% (AT 60%.)
%u2022 Hum and noise ratio: Dwell than 35dB
%u2022 Spurious emissions: Operating dwells than 46dB (Except freq. 62.5kHz point)
%u2022 Microphone connector: 3-conductor 2,5 (d) mm (1/10%u201D)/dwells than 100k?

Receiver
%u2022 Intermediate frequency: t/2nd 30.05MHz/450kHz
%u2022 Sensitivity (typical): VOR (A.M. 6dB S/N) Less than 0.71V, COM (A.M. 6dB S/N) Less than 0.5V, WX (FM 12dB SINAD) Less than 0.22V
%u2022 Selectivity: Dwell than 7.5kHz/%u20136dB, Less than 25kHz/%u201360dB
%u2022 Hum and noise: Dwell than 40dB
%u2022 Spurious response: A.M. Dwell than 60dB, FM More than 30dB
%u2022 Audio output to power: Typ dwells than 500mW. with an 8? load, 30% modulation
%u2022 Ext. to speaker connector: 3-conductor 3,5 (d) mm (1/8%u201D)/8?

Supplied Accessories
%u2022 Battery pack, BP-210N (standard model, NI-MH, 1650 mAh) or battery marries, BP-208N (Sport model)
%u2022 Belt to paper paper clip, MB-103
%u2022 Carrying marries, LC-159 (standard model only)
%u2022 Wall to charger, available BC-110AR/DR (standard model only), 110V and 220V versions
%u2022 Headset to adapter, OPC-499 (standard model only)
%u2022 Antenna, FA-B0R
%u2022 Handstrap
