ICOM IC A24. For Equipment Aerial Band WITH VOR

 46849
Available product.
  • ICA24
  • For Equipment Aerial Band. ACCREDITED FOR AVIATION. WITH VOR, Walkie 118/136 VHF talkie MONOBAND MHz....

    More info

  • 308,70€
  • VAT not included

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..

DESCRIPTION OF THE PRODUCT

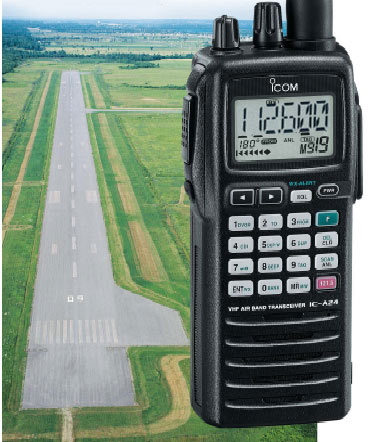

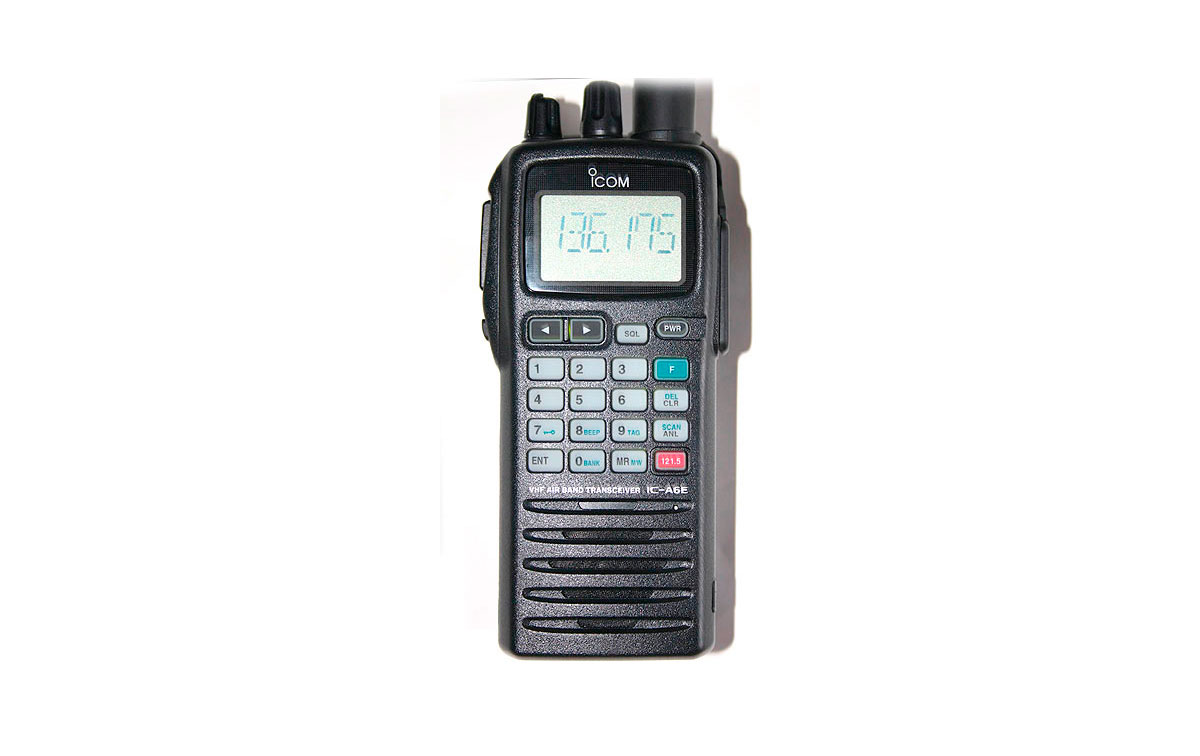

ICOM IC-A24 E
MONOBAND VHF/AM 118/136.975 MHZ
ICOM MARKING DIFFERENCE

For Equipment Aerial Band
ACCREDITED FOR AVIATION

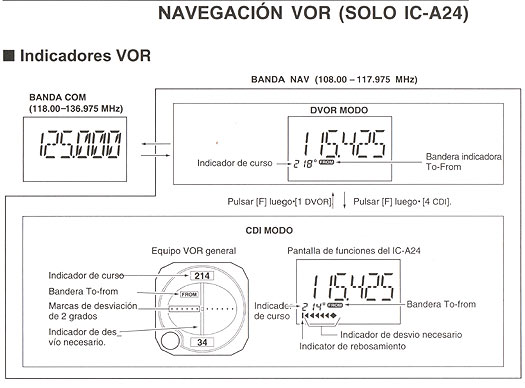

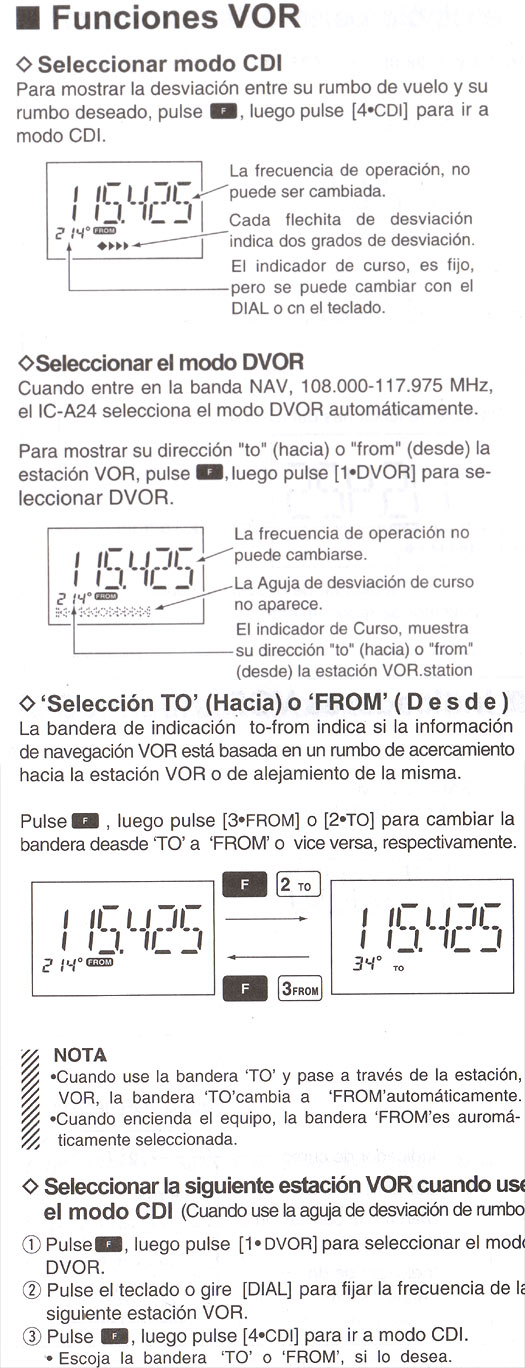

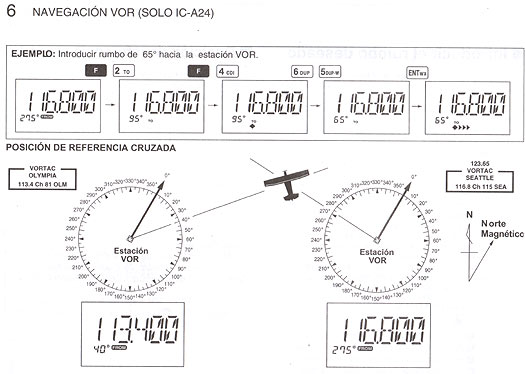

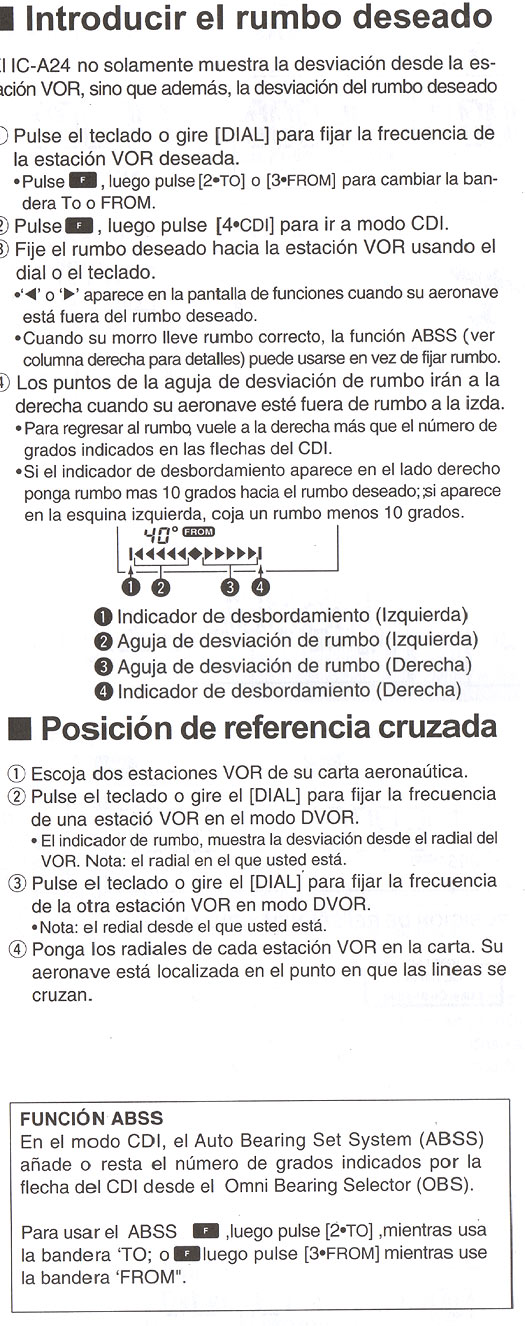

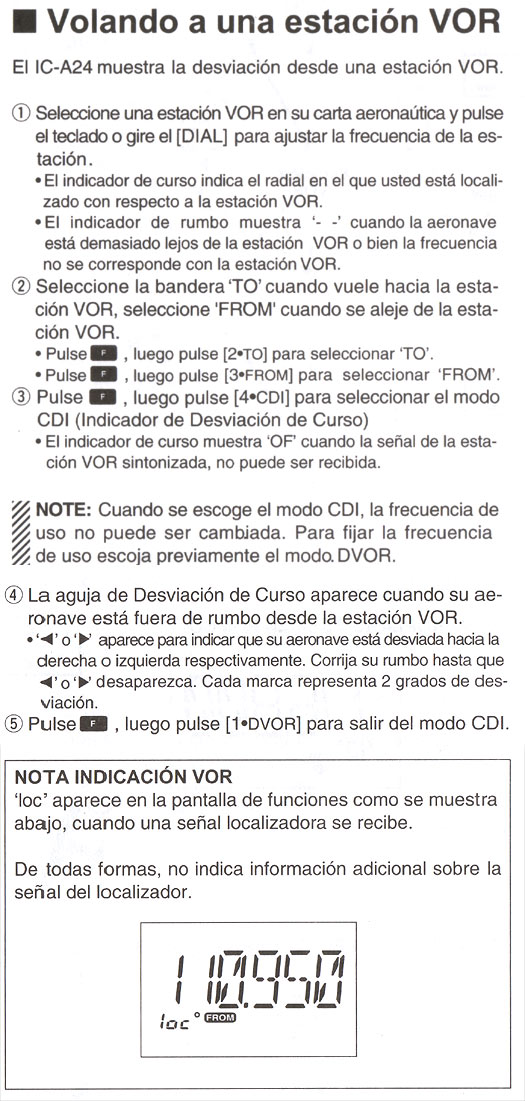

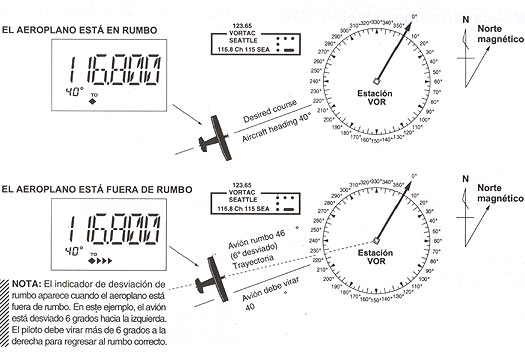

WITH VOR




ICOM MARKING DIFFERENCE!

Walkie VHF talkie MONOBAND (118/136 MHz).
Power 5 watts.

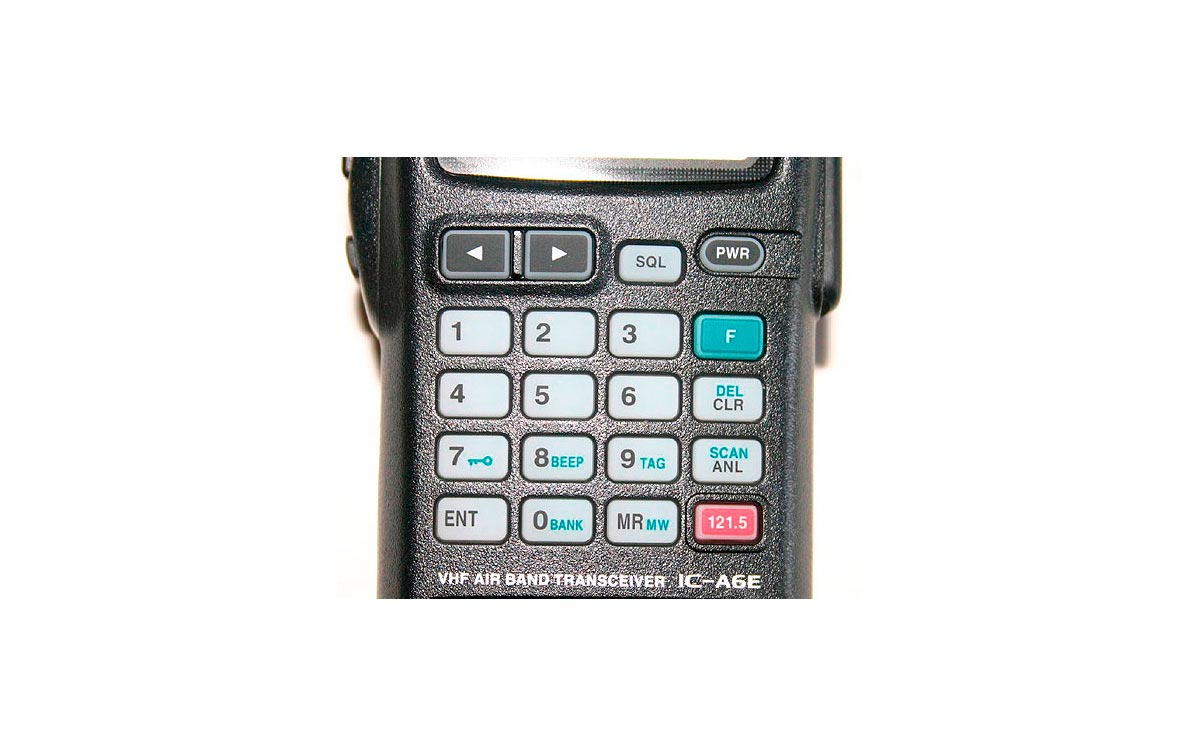

Bellboys and screen of great size
- immediate Selection of the emergency channel 121.5
- 50 programmable memories
- Search of frequencies and memories
- Night for Illumination uses


Ref: IC A24 E

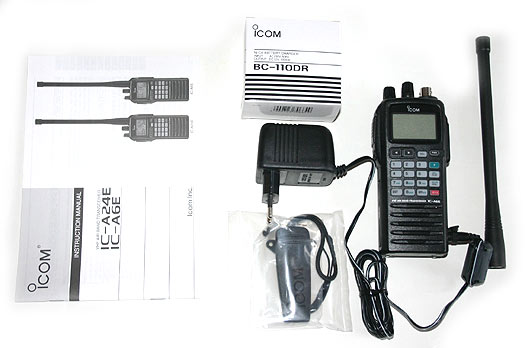

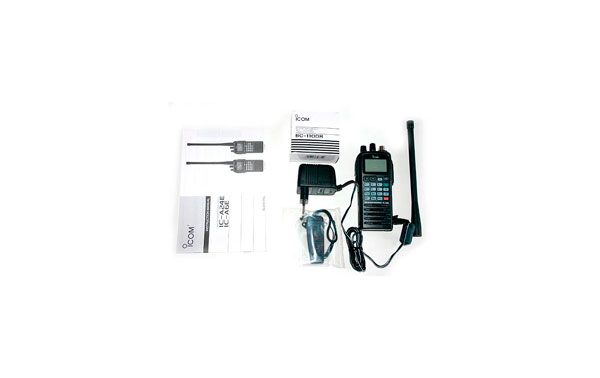

It includes:
1 VHF walkie IC To 6 and + to shipper +1 BC -110 Dr bateriaBP 210N 7,2V. 1650mAh. Neither to paper Castilian paper clip belt manual +

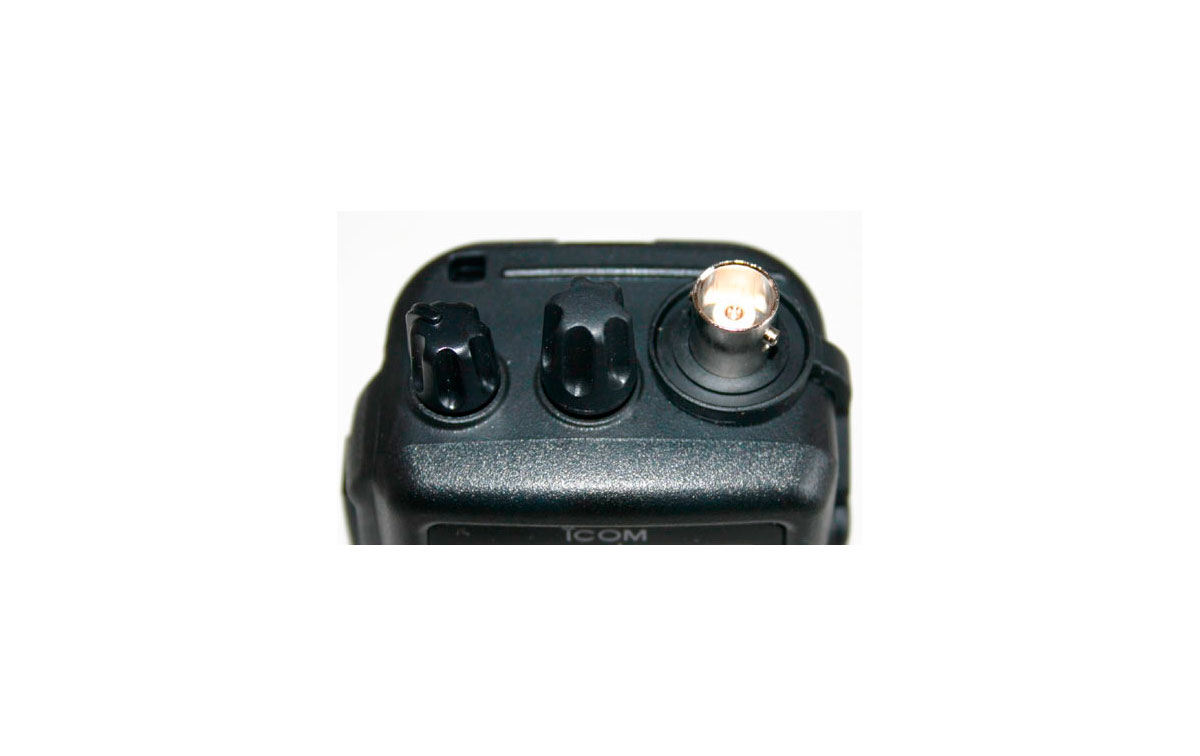

Connector of antenna type BNC







CHARACTERISTICS

Portable equipment VHF A.M. Aerial Band. Cover of frequency: Tx/Rx from 118 to 136,975 MHz. Power output to 5V DC: Discharge, low of 1 W. 200channels of memory. Key of direct Access to 121,5 MHz.

- Bellboys and screen of great size
- immediate Selection of the emergency channel 121.5
- 50 programmable memories
- Search of frequencies and memories
- Night for Illumination uses
- Power of emission of 5 W
- Battery of NiMh of high capacity (1.650 mAh)
- Robust resistant structure outdoors

General
%u2022 Frequency range: Tx/Rx 118.000%u2013136.975MHz, Rx 108.000%u2013117.975MHz (IC-A24 only), Weather 161.650%u2013163.275MHz
%u2022 Mode: A.M. (6K0C9), WX FM (16K0GE')
%u2022 Chanel spacing: 25kHz
%u2022 no. of memory channels: 200 (20 CH × 10 banks)
%u2022 Power supply requirement: 7.4/7.2V DC (Battery pack), 11.0V DC (External DC Jack)
%u2022 Current drain (AT 7.2 V DC): Typical Tx 1.Ä, typical Rx audio Max. 300mA, typical Stand-by 70mA
%u2022 Frequency stability: ±5ppm
%u2022 Operating temp. range: %u201310°C to +60°C; +14°F to +140°F
%u2022 Dimensions (W×H×D): 54×129.3×35.5 mm, (2 1/8×5 3/32×11 3/32 in), (projections not included)
%u2022 Weight (approx.): 430g; 15.òz, (with antenna and BP-210N)
%u2022 Antenna impedance: 50? (BNC type)

Transmitter
%u2022 Output to power (AT 7.2V DC): 5.0W typ. (PEP), 1.5W typ. (CW)
%u2022 Modulation system: Low level modulation
%u2022 Modulation limiting: 70%u2013100%
%u2022 Audio harmonic distortion: Less than 10% (AT 60% mod.)
%u2022 Hum and noise ratio: Dwell than 35dB
%u2022 Spurious emissions: Operating dwells than46dB (Except freq. ±62.5kHz point)
%u2022 Microphone connector: 3-conductor 2.5 (d) mm (1/10%u201D)/dwells than 100k?

Receiver
%u2022 Intermediate frequency: 1st/2nd 30.05MHz/450kHz
%u2022 Sensitivity (typical): VOR (A.M. 6dB S/N) Less than 0.71µV, COM (A.M. 6dB S/N) Less than 0.5µV, WX (FM 12dB SINAD) Less than 0.22µV
%u2022 Selectivity: Dwell than 7.5kHz/%u20136dB, Less than 25kHz/%u201360dB
%u2022 Hum and noise: Dwell than 40dB
%u2022 Spurious response: A.M. Dwell than60dB, FM More than 30dB
%u2022 Audio output to power: Dwells typ than 500mW. with an 8? load, 30% modulation

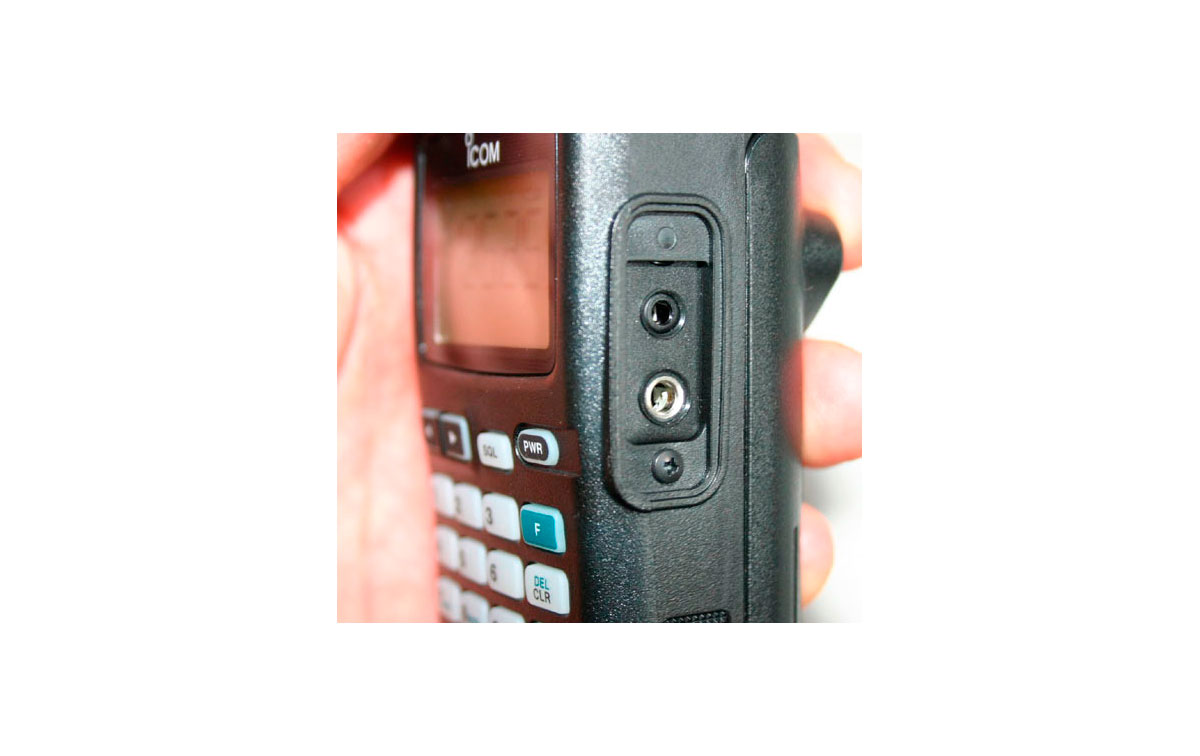

%u2022 Ext. to speaker connector: 3-conductor 3.5 (d) mm (1/8%u201D)/8?

Supplied Accessories
%u2022 Battery pack, BP-210N (standard model, NI-MH, 1650 mAh) or battery marries, BP-208N (Sport model)
%u2022 Belt to paper paper clip, MB-103
%u2022 Carrying marries, LC-159 (standard model only)
%u2022 Wall to charger, available BC-110AR/DR (standardmodel only), 110V and 220V versions
%u2022 Headset to adapter, OPC-499 (standard model only)
%u2022 Antenna, FA-B0ÀR
%u2022 Handstrap
