ICA210E ICOM FIXED MOBILE STATION IN AIRPLANE AVIATION! NEW NEW MODEL! BAND VHF 118.000 / 136.975 MHz
Fixture fly.

Does not include microphone is ready to connect headphones.

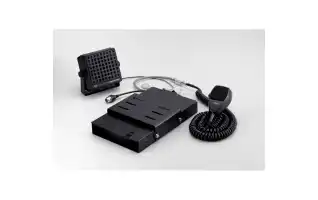

The optional microphone kit MB53 This kit is ready for installation with stand + mic + speaker.

BANDA 118.000 / 136.975 MHz

Large, bright OLED screen

! First a band VHF fixed mount air! The IC-A210 has a display with organic light emitting diode (OLED). The OLED emits its own light and offers many advantages over conventional screen in terms of brightness, vividness, high contrast, wide viewing angle and response time. Furthermore, the attenuation function automatically adjusts screen brightness for optimum day or night.

Easy channel selection

In the IC-A210 is quickly and easily you can select any memory channel. The indicator arrow button to allow bistable switching between main and standby channels. Dual watch function allows you to monitor two channels simultaneously. Additionally, the auto stack memory stores the last 10 channels used and allows you to easily return to those channels.

GPS memory function

When connected to an external GPS receiver * equipped with a database frequency of the airport, the frequency data such as nearby airports can be transferred and made available in the IC-A210.

* Ask your dealer for details about the GPS receiver available.

Power supply DC 12V/24V

The converter built-in DC-DC power supply accepts a DC 12/24V (11.5 / 27.5V). The IC-A210 is easily installed in most airplanes or vehicles.

Intercom Features

The IC-A210 has a built in voice activated intercom that allows the pilot to talk with the copilot via the headset. The IC-A210 has features adjustable audio level and squelch control.


Other features

  • TSO version planned (pending in July 2007)
  • 10 regular memory channels with channel name of 6 characters
  • 200 group memory channels (20 channels ?10 banks) with tag channel
  • Receiving NOAA Weather Channels (North America version)
  • One-touch access to 121.5MHz emergency frequency
  • Function ANL (Auto Noise Limiter) for noise reduction pulse rate
  • Remote control capability
  • Timeout timer
  • VFO Scanning
  • PC programming capability
  • Dial lock and screen lock
  • Squelch test function


FEATURES

Band 136.975 118.000 MHz   TX power 8 W typical (in carrier)
Modulation AM   AM Sensitivity <2% u03BCV
@ 6 dB S / N
Canalization 25 kHz

Microphone Impedance

600
Memory Channels

10 regular
10 banks (10 x 20 channels)
Recent 10

  Audio Power

5 W

60 mW
over 500% u03A9

Feeding from 13.8 to 27.5 Vdc i   Temperature Range from less than 20 ° C to +55 ° C
Size 160 ?34 ?271 mm   Weight 1.0 kg

Mounting Kit Speaker Connector Adapter Microphone
MB-53 SP-5 Type PS-80 HM-176
   Compatible with third

Specs

General

Frequency coverage

Tx / Rx

Rx Networks WX


118000-136975 MHz
161,650-163.275MHz
*

(* Only in the U.S. version.)
Frequency Spacing 25kHz
Frequency stability ± 5ppm
Operating Temperature least 20 ° C to +55 ° C
Antenna Impedance 50% u03A9
Number of memory channels 10 regular memory,
200 group memory,
GPS 10, 10 weather
*
,
10 auto stack memory
(* Only in the U.S. version)
Power Supply Requirement 11.5-27.5V DC (negative ground)
Current consumption (at 13.8V DC)
Transmission

Reception

5A max.
AF 4A max.
0.5A Standby

Dimensions (W ?H ?D)

(Not including projections)

160 ?34 ?271 mm

6 6% u2044 11% 16 ?1 32 ?10 u2044 21% u2044 32 "

Weight (approx.) 1.0 kg, 2.2 lbs
Transmitter
Output power 8W typical (carrier power
Spurious Emissions Least 60dB below
Microphone impedance 600
Receiver

Intermediate frequencies

The 1st

The 2nd

38.85 MHz

450 kHz

AM Sensitivity Less than 2.0 microvolts for 6 dB S / N (with 1 kHz 30% mod.)
Selectivity

± 3kHz to 6dB S / N

± 22kHz for 60dB S / N

Spurious Rejection Less than 74dB
Audio Output

5W with a load of 4

60mW with a load of 500
