YAESU VX-824 Walkie Talkie ATEX VHF 134-174 MHz

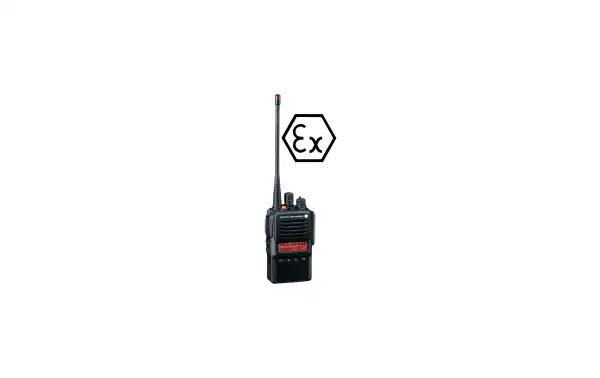

YAESU VX 824 ATEX 64393
  • YAESU VX 824 ATEX 64393

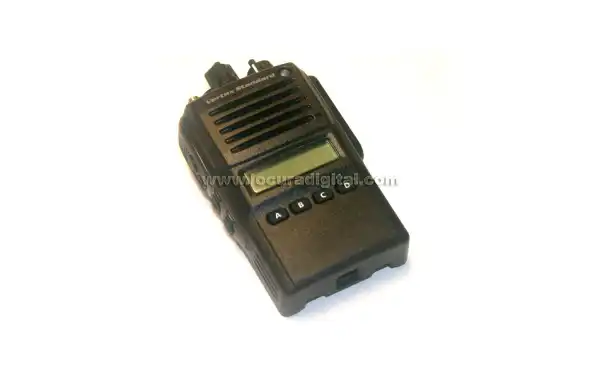

  • vx820/870 64393
  • vx820/870 64393
  • vx820/870 64393
  • vx820/870 64393
  • vx820/870 64393
  • vx820/870 64393
  • vx820/870 64393
  • vx820/870 64393
Discontinued product.
  • YAESU VX-824 Walkie Talkie ATEX VHF 134-174 MHz INCLUDES BATTERY + CHARGER + ANTENNA 134-174MHz...

    More info

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..

Intrinsically Safe

Frequency 134-174 MHz VHF

When making the request must specify the frequencies to make walkie

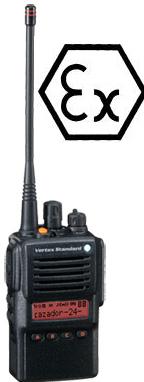

YAESU VX 824 ATEX VX-824 Series ATEX radios are high-end laptops for use in commercial radio standards ATEX approved for use in potentially dangerous situations explosive, refineries, gas stations, oil pipelines etc.. Its low weight and compact size for easy transport and use in professional applications. The high robustness (performance standards MIL 810 C,"C E), IP-54, 55.57 and studied its design allow a botonera intensive professional environments in high attrition at the same time simplifying their management for use by non-specialist. Moreover, the VX-824 has an added safety feature, the emergency call of lone worker.
Its matrix LCD 2 lines in 19 caractetes computers and icons gives the user greater amount of information, identification of the correspondent, the network status, status of equipment and so on.

With 512 channels, 1W power and all sorts of possible signals (CTCSS, DCS and 5 multi-tone) VX-824 offers a wide range of possibilities for use in professional networks with diverse needs, from communications to the most basic which require more complex caller ID, alarm signals, encoder / decoder digital animation etc

- Atex 824 Walkie Talkie
- Battery FNB-V100LI EX (ATEX)
- Charger Atex

ACCESSORIES ATEX (These are the only accessories that meet the rules)

FNB-V100 Lithium Ion Battery, 7.4 V / 1500 mAh
CD-37EX/PA desktop charger unit
VAC-6921EX multiple desktop charger for 6 teams

* Chargers are ATEX marked as being separate elements of the team and be used in safe area.



- Portable Transceiver VHF or UHF, the whole band, 16 channels
- Selectable power between 0.5 W or 1W
- Approved regulations ATEX: II 1 G or II 2 G EEx ia or EEx ib IIC T4 - IIC T3
- Multi-matrix LCD screen with 19 informative characters plus icons (2 line display), high visibility
- 512 Channels
- Keyboard DTMF 4 softkeys
- 5-tone multi -
- ANI Encoder for user identification
- System solitiario worker
- Scanner multimode
- Automatic audio compressor for use on networks 25 KHz modulation, dual channel.
- System Checker Auto coverage ARTS
- TOT penalty transmission
- BCLO; locking system with carrier emission detected
- BTLO; locking system with emission detected subtono
- High power audio 700mW
- Design highly resistant IP-54, MIL standards, and 55.57 C /"0/ E

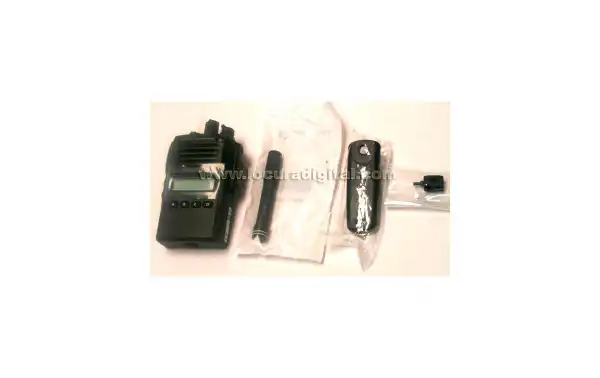

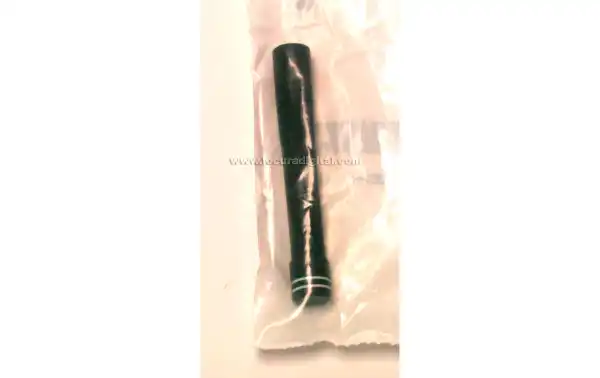

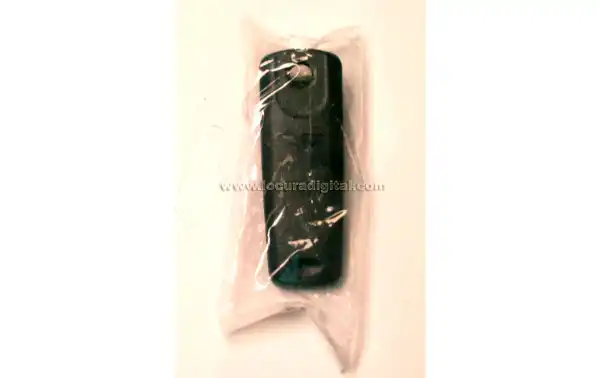

- Includes FNB-ATEX battery 1500 mAh 100LiEX, antenna and rubber - ATEX CD-37EX/PA42 desktop charger and belt clip.
