LAFAYETTE ATENA. Mobile radio CB 27 Mhz. AM/FM 4 Watts

ATENA LAFAYETTE 64239
Available product.
  • ATENA
  • LAFAYETTE ATENA. Mobile radio CB 27 Mhz. AM/FM 4 Watts. BLACK colour.

    More info

  • 69,00€
  • VAT not included

ANTENNA GAIN CONTROL!!
Listen to your teammates even though they are close to you

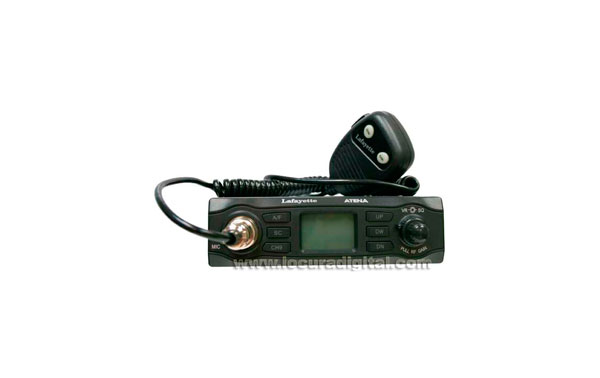

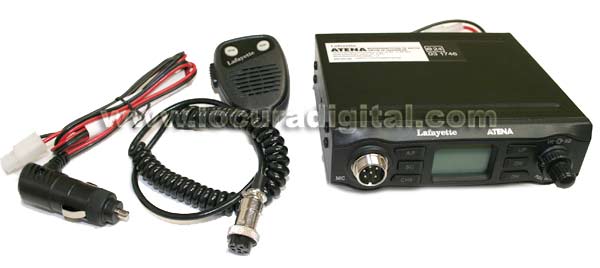

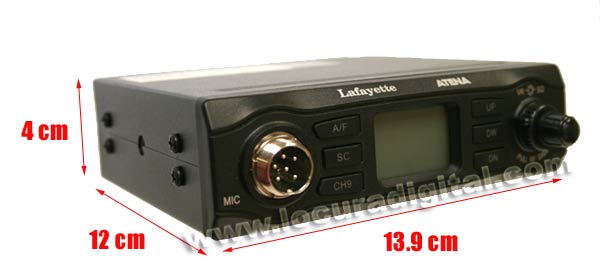

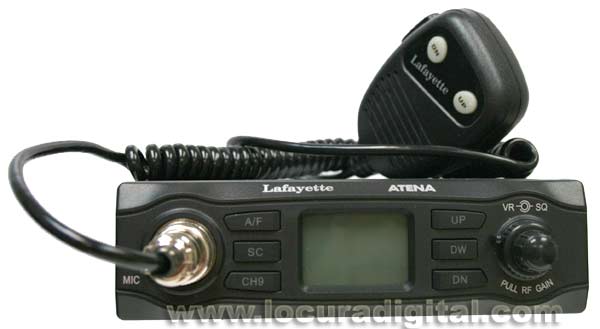

LAFAYETTE ATENA. CB 27 Mhz transceiver. AM / FM 4 watts. BLACK colour.

Lafayette presents his new 27 Mhz equipment, offering a stunning design and a NEW ANTENNA GAIN CONTROL.

With the gain control you can adjust the signal power that we want to enter on our radio, that way we will get to listen to other stations even though they are close to us.

In many occasions when two vehicles were too close together and tried to communicate with 27 MHz stations, they were receiving no signal, with this station this problem is solved thanks to its Antenna Gain Control. In a quick and easy way we can control the signal intensity that enters into our station and therefore achieve a perfect reception.

Important
Complies with the E24 legislation authorizing installing electronic equipment on public transport vehicles



PL Connector

lafayette cb atena
cb atena lafayette
lafayette cb atena

Features



General Specifications


Generic

Transmitter

PLL synthesizer crystal

Receiver

Double conversion superheterodyne system

Operating voltage

13.8 volts DC

Temperature Range

-10 º C 50 º C

Channel Step

10 Khz.

Transmitter

Output power

4 watts AM / FM 4 watts

Frequency range

26965-27405 MHz.

Frequency Tolerance

( -) 500 Hz

Modulation Sensitivity

6 mV (1.25 kHz. Input)

Modulation capability

AM: 90% - FM: 2 KHz.

Receiver

Sensitivity

AM: 0.5 (µV) (s / n 10 Db) - FM: 0.3 (µV) (12 dB SINAD)

Auto Squelch 0.3 (µV)

Squelch

0.5 (µV) MAX

S / N ratio

40 dB

Distortion

5%

Maximum Power

4 watts
