LAFAYETTE ERMES BLACK. 27 Mhz CB transceiver. Black colour

 62597
  •  62597
  • ERMES LAFAYETTE BLACK. CB 27 Mhz. High Performance Color BLACK. 62597
  •  62597
  •  62597
  •  62597
  •  62597
  •  62597
  •  62597
  •  62597
Available product.
  • ERMESBLACK
  • LAFAYETTE ERMES BLACK. 27 Mhz CB transceiver. High Performance. Black colour

    More info

  • 87,00€
  • VAT not included


LAFAYETTE ERMES BLACK. 27 Mhz CB transceiver. High Performance. Black colour.

Important

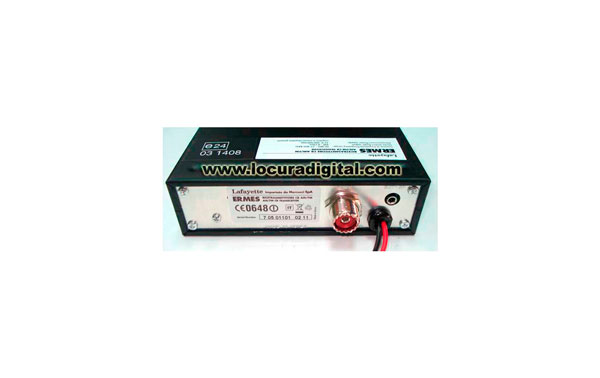

Complies with the E24 legislation authorizing installing electronic equipment on public transport vehicles



Features

SPECIFICATIONS
General
Transmitter: Crystal controlled PLL synthesizer
Receiver: Double conversion, superheterodyne system
Voltage operation: 13.8 V DC
Temperature: -10 ° C ~ 50 ° C
Channel step: 10 kHz
Antenna Impedance: 50% u03A9

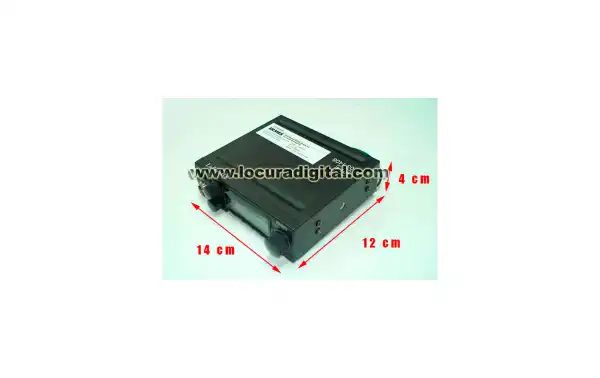

Dimension: 138 (D) x 159 (W) x 48 (A) mm
Weight: 870 gr. w / o accessories
Transmitter
Output power: 4W FM / AM
Frequency range: 26 965 ~ 27.405 MHz
Frequency tolerance: ± 300 Hz
Modulation sens: 3mV (1.25 kHz input)
Capablity Modulation: AM: 90%
FM: 2 kHz
Receiver
Frequency range: Ch 40 ~ 27 405 26 965 Mhz
Sensitivity: AM: 0.5 microvolts (s / n 10dB)
FM: 0.5 microvolts (12dB SINAD)
Squelch: 1 m?V
Auto squelch: 0.5 microvolts
S / N ratio: 40 dB
Distortion: 3%
Max power: 4 watt
S / meter (S-9): 100 microvolts
Test condition
Power source: 13.8 Volt DC
Antenna impedance: 50 Ohm non-inductive
Audio impedance: 8 Ohm
