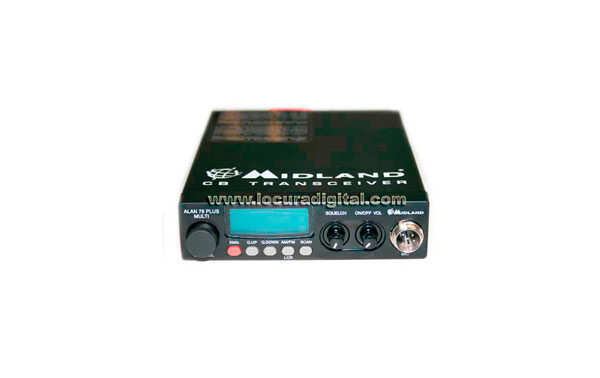

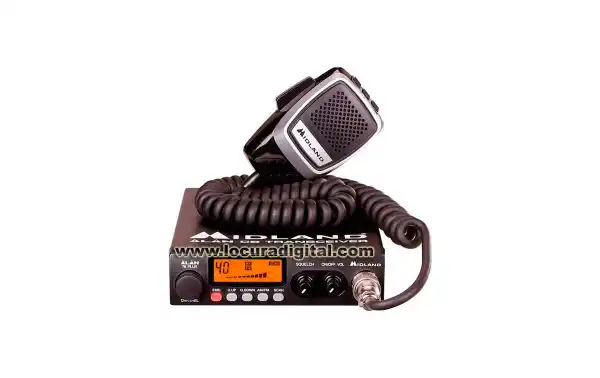

ALAN 78 PLUS MULTI CB 27 Mhz transmitter. AM / FM.

The station ALAN 78 MULTI PLUS is a mobile computer of easy and immediate use which gives the possibility to select any CB band, so it can be used in all European countries. more Manufacturer: alan Reference ALAN78PLUS EAN 8011869172267

available
107,69 incl. VAT
89,00€ w/o VAT
Delivery price from 30,25€

ALAN ALAN78PLUS

The ALAN 78 PLUS MULTI represents the maximum exponent in the new generation of CB equipment as the most advanced technology in electronic engineering has been used in its design and production.

Equipped with all the controls and functions necessary to satisfy the most demanding of radio amateurs, the quality of the materials used in its manufacture as well as its versatility and functionality will make you enjoy excellent radio moments while generating a healthy envy among your colleagues.

The ALAN 78 PLUS MULTI is a high quality electronic equipment, built with the best components.

The circuitry is solid state mounted on robust printed circuit boards. Its design will allow you to work with this unit for many years, without any loss of performance.
The modern PLL circuit uses a new technique to generate all the required frequency range with a minimum of crystals. The result is more efficient frequency control and unsurpassed reliability. We are convinced that you have just acquired one of the best CS equipment on the market. Enjoy it for many years.

ALAN ALAN78PLUS

MAIN FEATURES

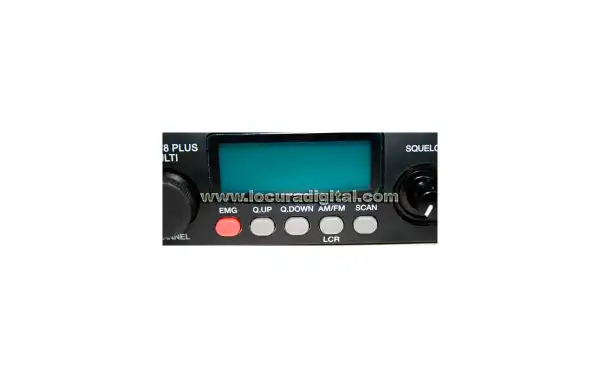

- Backlit multifunction display
- Microphone "precision series" with up / down / lock button

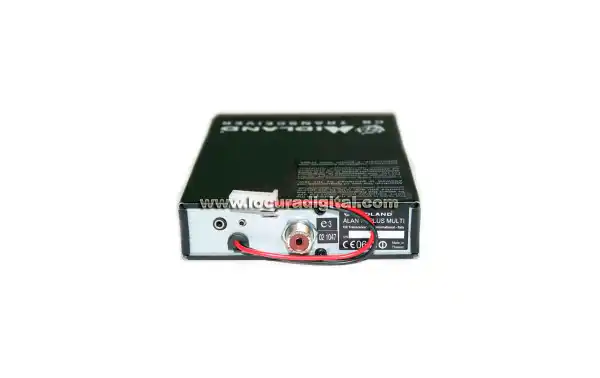

- External speaker socket
- External s-meter socket
- Scan function
- Dual Watch function

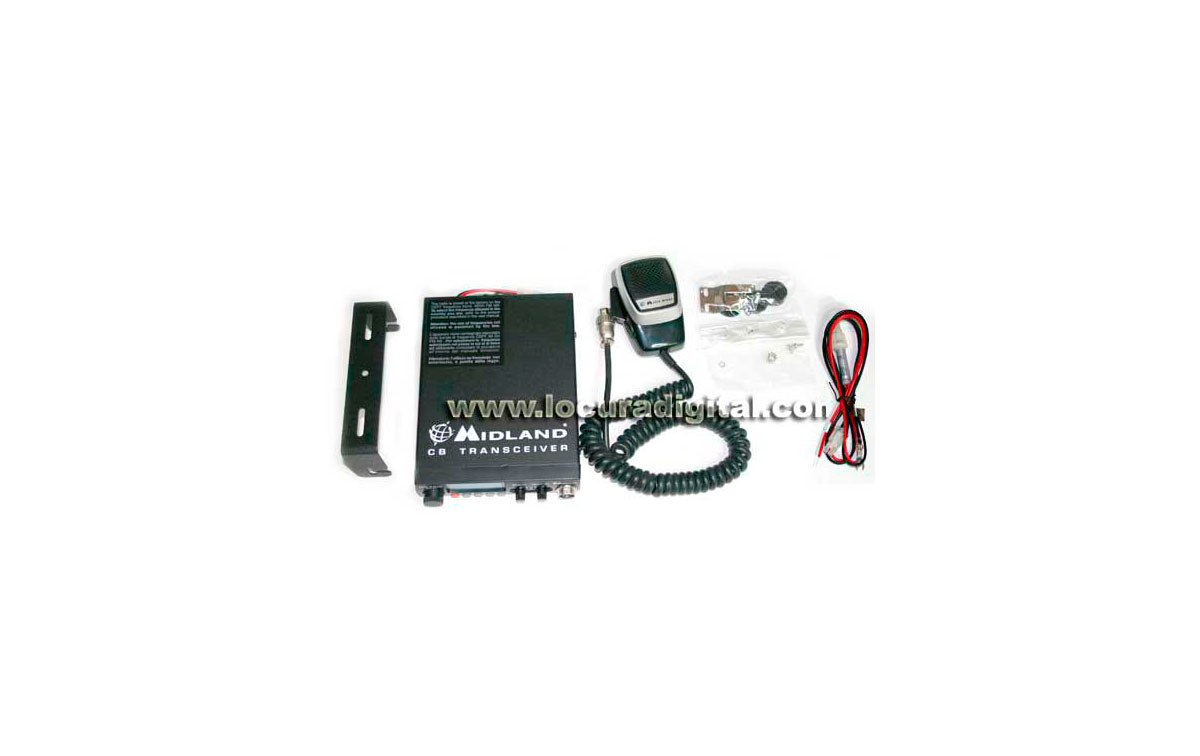

It includes:

- Alan 78 Plus Station
- Power cable
- Support for the station
- Microphone
- Microphone holder


>> SEE MORE IMAGES ALAN 78 PLUS MULTI <<

INSTRUCTIONS ALAN78
INSTRUCTIONS ALAN78
INSTRUCTIONS ALAN78
INSTRUCTIONS ALAN78




FEATURES

General
  Channels 40 AM / FM
  Frequencies 26,965 - 27,405 MHz
  Supply voltage 13.2 Vdc

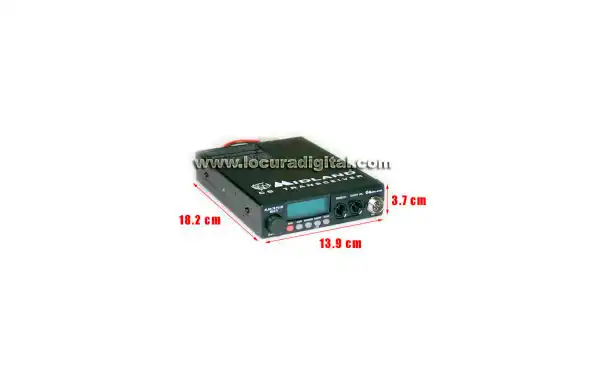

  Dimensions 139x37x182 mm
  Weight 0.860 Kg
  Transmitter
  Output power 4W AM / FM
  Modulation AM / FM
  Consumption 1100 mA
  Receiver
  Sensitivity 0.5µV for 10dB SINAD
  Audio output power 2.0 W @ 8 Ohm
  Audio distortion less than 8% @ 1 KHz

>> SEE MORE IMAGES ALAN 78 PLUS MULTI <<
