MIDLAND

STATION 27 MHZ CB

ALAN 100 BRAVO PLUS + ANTENNA MAGNETIC BASE-150 + BM 175PL
ALAN Ref 100 SALE

CB Mobile Transceiver AM / FM.

ALAN 100 PLUS is the team we have designed for new cebe?as. Has the elements essential for good communication: a practical controls for volume and squelch to help you get optimum reception, while improving the audio has been studied a new condenser microphone
.
! Marked difference
!


Includes:
ALAN STATION 100 PLUS 1 + 1 ANTENNA Myrmidon BRAVO-150 + 1 MAGNETIC BASE Magnetic Base 175PL BM 175 mm. Supplied with 4.5 m cable and connector PL

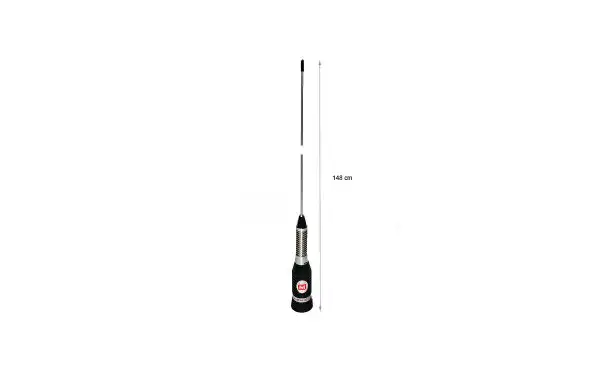

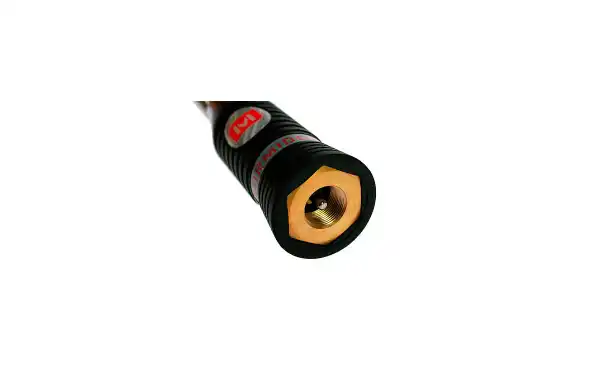

BRAVO-150 Myrmidon CB Antenna 27 Mhz, 150 cm. With spring. HIGH PERFORMANCE

Power: 400 W
Impedance: 50 Ohms
Length: 150 cm
Weight: 320 g

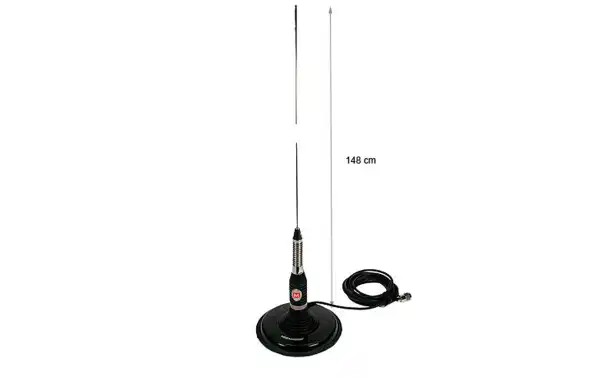

Myrmidon BRAVO-150. CB Antenna 27 Mhz. 5 / 8 LENGTH 1.48 m + MAGNET BASE CONNECTOR PL-175 WB

Myrmidon BRAVO-150. CB Antenna 27 Mhz. 5 / 8 LENGTH 1.48 m + MAGNET BASE CONNECTOR PL-175 WB
Myrmidon BRAVO-150. CB Antenna 27 Mhz. 5 / 8 LENGTH 1.48 m + MAGNET BASE CONNECTOR PL-175 WB
Myrmidon BRAVO-150. CB Antenna 27 Mhz. 5 / 8 LENGTH 1.48 m + MAGNET BASE CONNECTOR PL-175 WB

Myrmidon BRAVO-150. CB Antenna 27 Mhz. 5 / 8 LENGTH 1.48 m + MAGNET BASE CONNECTOR PL-175 WB


BM-175

Myrmidon BM-175

Myrmidon BM-175



FEATURES

Description
CB Mobile Transceiver AM / FM

UNDER CE/99/05, DM and DM 07/15/77 02/04/85

Key Features
ALAN 100 PLUS the team we have designed for new cebe?as. Has the elements essential for good communication: a practical controls for volume and squelch to help you get optimum reception, while improving the audio has been studied a new condenser microphone.

- Direct access to channels 9 and 19
- LCD display of channel
- Selectors UP / DOWN in front
- Volume Control
- Squelch Control
- Led indicator Tx
- Socket for external speaker
- Connector 4 pin mic
- SO239 antenna connector

Technical
General
Channels 40 AM / FM
Frequencies from 26,965 to 27,405 MHz
Supply voltage 13.8 VDC
Dimensions 180x125x38 mm
Weight 950 g
Receiver
Sensitivity> 1?V for 20dB SINAD
Audio output power max. 4.5W @ 40hm
Audio distortion <8% @ 1 KHz
Consumption 250 mA
Transmitter
Output Power 1W AM - 4W FM
AM modulation: 90% - FM 2KHz
1100 mA Consumption
