SIRIO SY27-4. Base station antenna; Directional; High-gain; 4 element

 62562
Available product.
  • SY274
  • SIRIO SY27-4. Base station antenna; Directional; High-gain; 4 element Yagi for CB. Made of aluminium...

    More info

  • 120,00€
  • VAT not included

SIRIO SY27-4

SIRIO SY27-4. Base station antenna; Directional; High-gain; 4 element Yagi for CB. Made of aluminium alloy. The main difference with the model SY27-3 is that this new model has a higher gain.

Max. Power: 1000 W.
BOOM Length 4030 mm.
BOOM Diameter 33 mm.
Radial Length 3600 mm.

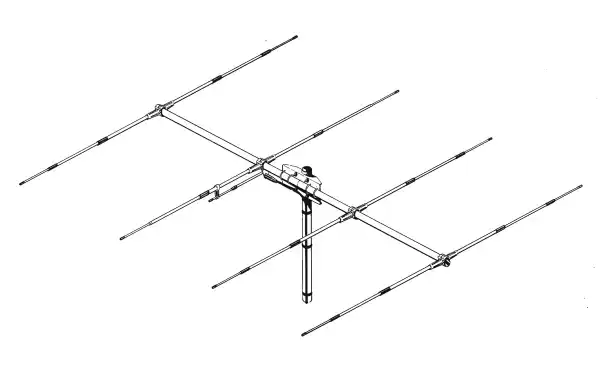

SIRIO SY27-4. Base station antenna; Directional; High-gain; 4 element Yagi for CB






Features

  • 4 element Yagi antenna.
  • Made of aluminium alloy 6063 T-832.

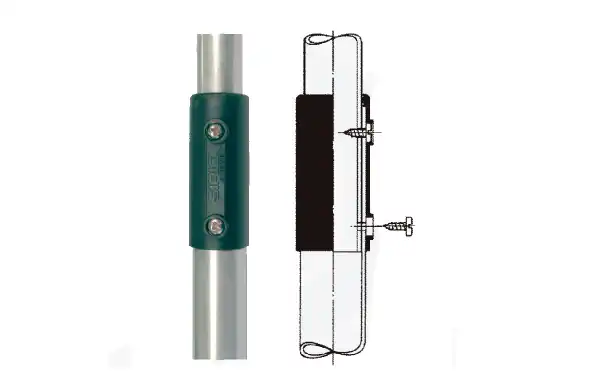

  • Elements equipped whit waterproof jointing sleeve.
  • Impedance 50 Ohm.
  • Frequency range: 26-28 Mhz.
  • (H plane) directional.
  • Polarization vertical.
  • Max. Power: 1000 W.
  • V.S.W.R. < 1,2:1.
  • Gain: 13,15 dBi.
  • Length 5725x4030x100 mm.
  • Weigh 6300 gr.
  • BOOM Length 4030 mm.
  • BOOM Diameter 33 mm.
  • Radial Length 3600 mm.
