Equipo portátil VHF AM Banda Aérea. Cobertura de frecuencia: Tx/Rx de 118 a 136,975 MHz. Potencia de salida a 5V DC: Alta , baja de 1 W . 200 canales de memoria. Tecla de acceso directo a 121,5 MHz.

- Botones y pantalla de gran tamaño
- Selección inmediata del canal de emergencia 121.5
- 50 memorias programables
- Búsqueda de frecuencias y de memorias
- Iluminación para uso nocturno
- Potencia de emisión de 5 W
- Batería de NiMh de alta capacidad (1.650 mAh)
- Robusta estructura resistente a la intemperie

General
Frequency range : Tx/Rx 118.000%u2013136.975MHz, Rx 108.000%u2013117.975MHz (IC-A24 only), Weather 161.650%u2013163.275MHz
Mode : AM (6K00A3E), WX FM (16K0G3E)
Channel spacing : 25kHz
No. of memory channels : 200 (20 Ch × 10 banks)
Power supply requirement: 7.4/7.2V DC (Battery pack), 11.0V DC (External DC Jack)
Current drain (at 7.2 V DC) :Tx 1.5A typical, Rx Max. audio 300mA typical, Stand-by 70mA typical
Frequency stability : ±5ppm
Operating temp. range : %u201310°C to +60°C; +14°F to +140°F
Dimensions (W×H×D) : 54×129.3×35.5 mm, (2 1/8×5 3/32×11 3/32 in), (projections not included)
Weight (approx.) : 430g; 15.2oz, (with antenna and BP-210N)
Antenna impedance : 50? (BNC type)

Transmitter
Output power (at 7.2V DC): 5.0W typ. (PEP), 1.5W typ. (CW)
Modulation system : Low level modulation
Modulation limiting : 70%u2013100%
Audio harmonic distortion : Less than 10% (at 60% mod.)
Hum and noise ratio : More than 35dB
Spurious emissions : More than 46dB (Except operating freq. ±62.5kHz point)
Microphone connector : 3-conductor 2.5 (d) mm (1/10%u201D)/ more than 100k?

Receiver
Intermediate frequency : 1st/2nd 30.05MHz/450kHz
Sensitivity (typical) : VOR (AM 6dB S/N) Less than 0.71µV, COM (AM 6dB S/N) Less than 0.5µV, WX (FM 12dB SINAD) Less than 0.22µV
Selectivity : More than 7.5kHz/%u20136dB, Less than 25kHz/%u201360dB
Hum and noise : More than 40dB
Spurious response : AM More than 60dB, FM More than 30dB
Audio output power : More than 500mW typ. with an 8? load, 30% modulation
Ext. speaker connector : 3-conductor 3.5 (d) mm (1/8%u201D)/ 8?

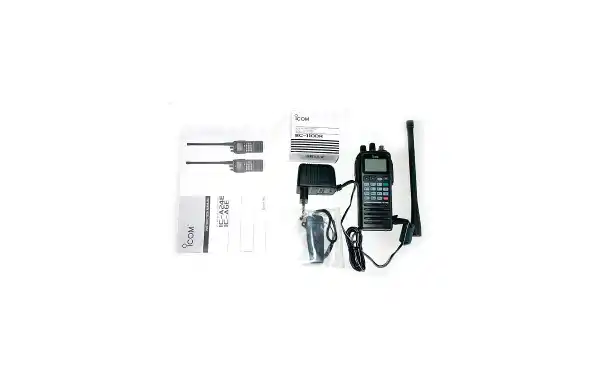

Supplied Accessories
Battery pack, BP-210N (standard model, NI-MH, 1650 mAh) or battery case, BP-208N (Sport model)
Belt clip, MB-103
Carrying case, LC-159 (standard model only)
Wall charger, BC-110AR/DR (standard model only), 110V and 220V versions available
Headset adapter, OPC-499 (standard model only)
Antenna, FA-B02AR
Handstrap
