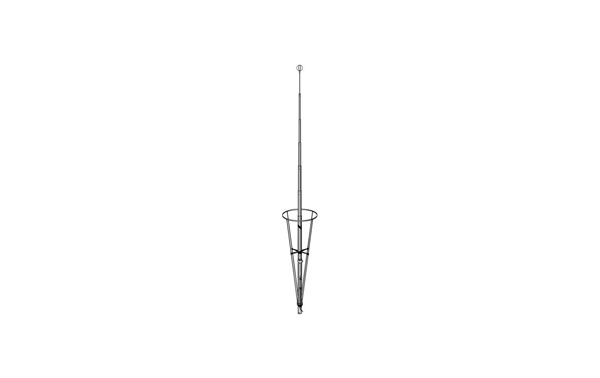

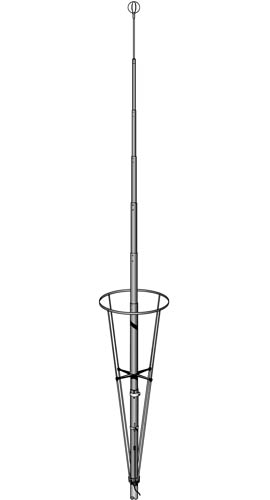

NEW VECTOR-4000 SIRIO NEW VECTOR 4000 Antena de CB27 mhz de base.

NEW VECTOR-4000 SIRIO NEW VECTOR 4000 Antena de CB27 mhz de base. 66402
Producto disponible.
  • NEWVECTOR4000
  • NEW VECTOR-4000 SIRIO NEW VECTOR 4000 Antena de CB27 mhz de base. Longitud 8,5 metros de largo. CB...

    Más info

  • 98,00€
  • IVA no incluido

NEW VECTOR-4000 SIRIO

NEW VECTOR 4000  Antena de CB27 mhz  de base.
CB & 10m Base station antenna
- Omnidirectional
- Tunable by whip length adjusting
- High power handling capability
- Made of aluminium alloy 6063 T-832
- UP-GRADE: Lower radiation angle for the best DX, new tuning possibility

NEW VECTOR-4000 SIRIO NEW VECTOR 4000 Antena de CB27 mhz de base.NEW VECTOR-4000 SIRIO NEW VECTOR 4000 Antena de CB27 mhz de base.





CARACTERÍSTICAS

 Features: - CB & 10m Base station antenna
- Omnidirectional
- Tunable by whip length adjusting
- High power handling capability
- Made of aluminium alloy 6063 T-832
- UP-GRADE: Lower radiation angle for the best DX, new tuning possibility

Part Numbers: P/N 2100701.00 NEW VECTOR 4000


Electrical Data
- Type: 3/4 %u03BB coaxial J-pole
- Frequency range: tunable from 27 to 28.5 MHz
- Impedance: 50%u03A9
- Radiation (H-plane): 360° omnidirectional
- Polarization: vertical
- Gain: 2 dBd, 4.15 dBi
- Bandwidth @ SWR %u2264 2: %u2265 1400 KHz (120 channel)
- SWR @ res. freq.: %u2264 1.2
- Max. power:
 1000 Watts (CW) continuous
 3000 Watts (CW) short time

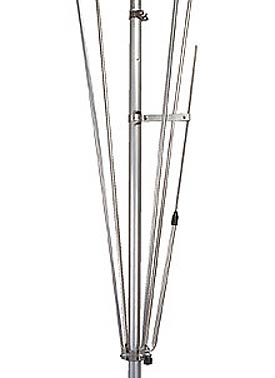

- Feed system / position: Gamma match / base
- Connector: UHF-female

Mechanical Data
- Materials: Aluminium, Steel, Nylon
- Wind load / resistance: 329 N at 150 Km/h / 130 Km/h
- Wind surface: 0.29 m²
- Height (approx.): 8480 mm
- Weight (approx.): 4700 gr
- Mounting mast: Ø 35-42 mm
